Brush selection

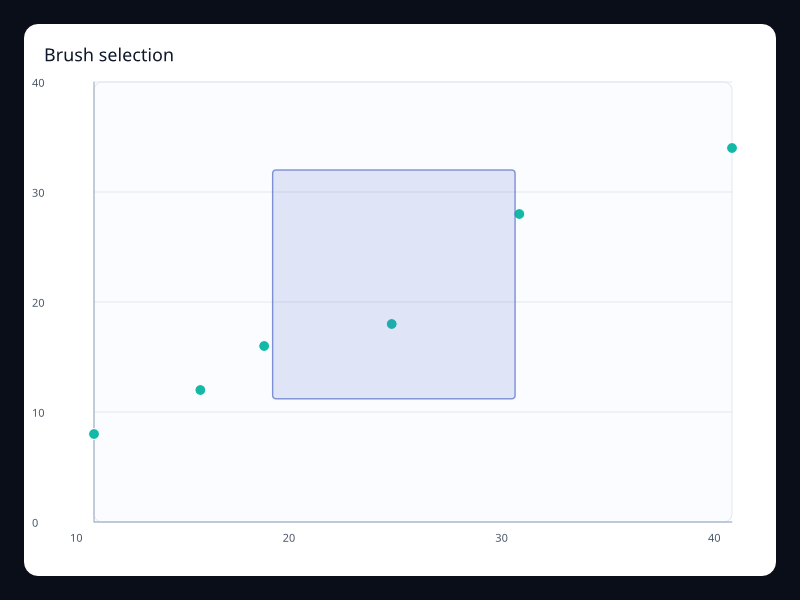

A visible brush region over a scatter plot. Use it when users need to select or inspect a region of points. The screenshot is captured from the native Fission chart gallery.
What the chart is for
Brush selection belongs to the Components and interaction family. Its job is to make this data shape readable: ChartBrush configuration plus hit-testable series data. In a production interface, choose this chart when the visual form makes the user's question faster to answer than a table or a simpler chart would.
Avoid it when the visual form makes the user estimate more than necessary; choose the simplest chart that answers the product question.
Data model
ChartBrush configuration plus hit-testable series data. Keep the data close to the type that describes it. Fission Charts is typed Rust, so a line uses LineSeries, a calendar heatmap uses CalendarHeatmapSeries, and chart components such as zoom, marks, and graphics are explicit fields on Chart rather than hidden string configuration.
Rust API
| Field | Type | Notes |
|---|---|---|
title | &str | Names the chart for the screen, accessibility tree, and test output. |
interaction | ChartInteraction + ChartBrush | Enables a typed brush selection region. |
width / height | f32 | Optional fixed size; omit them when the chart should flex inside Fission layout. |
Example
use fission_charts::Chart;
let chart = Chart::new()
.title("Brush selection")
.width(720.0)
.height(480.0);
Interaction and animation
Charts can emit typed ChartInteractionEvent values when interaction is enabled. Handle those events in a reducer when the app needs hover, press, release, scroll, selection, or brush behavior. ChartAnimation stores duration, delay, stagger, easing, and reduced-motion behavior as deterministic chart data, so animation timing can be tested instead of being hidden in ad-hoc timers.
Testing guidance
For this chart, test the data mapping first, then test lowering, then capture a live screenshot when visual output changes. The screenshot for this page is refreshed with npm run charts:generate from the website package.
Tags: brush, selection.
