Chart catalog

This catalog only lists chart variants that are implemented in the current native chart renderer and backed by real Fission screenshot assets. Future chart families stay out of the public catalog until the renderer, gallery, tests, and screenshots exist.

Each card includes a chart-only screenshot captured from the Fission chart gallery, the data shape the chart expects, and the product situation where the chart belongs. That is deliberate. A chart reference should help you choose the right visualization before you start writing code.

Chart family

Cartesian

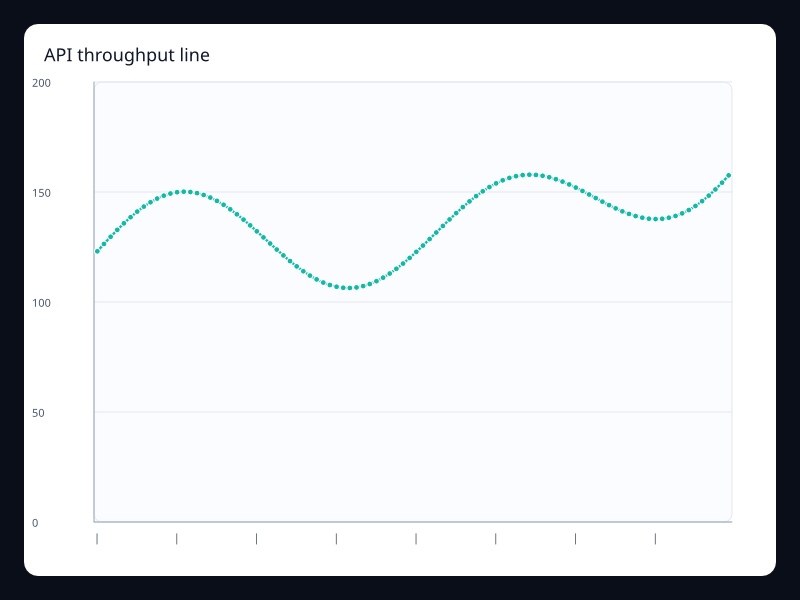

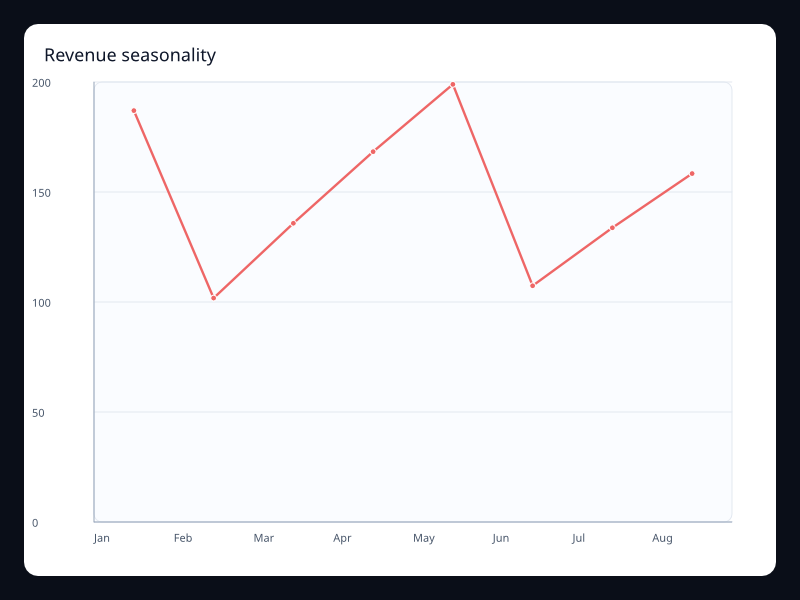

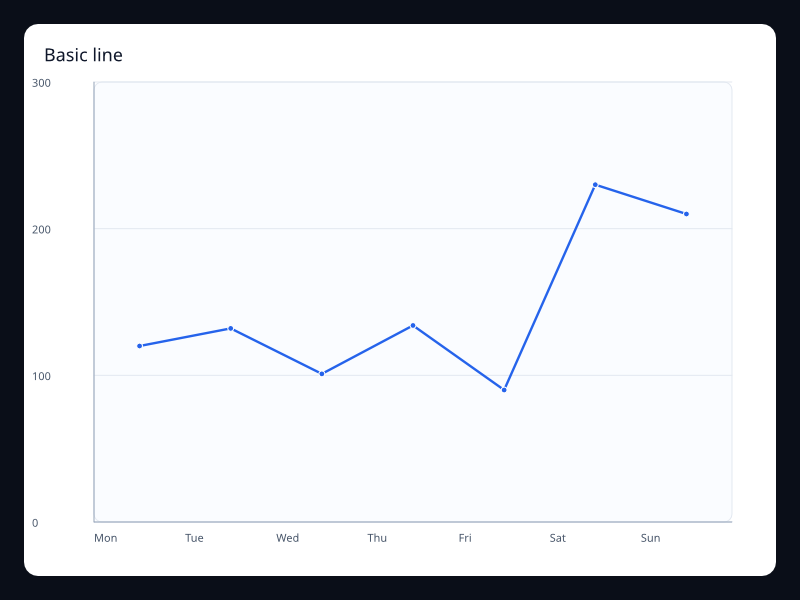

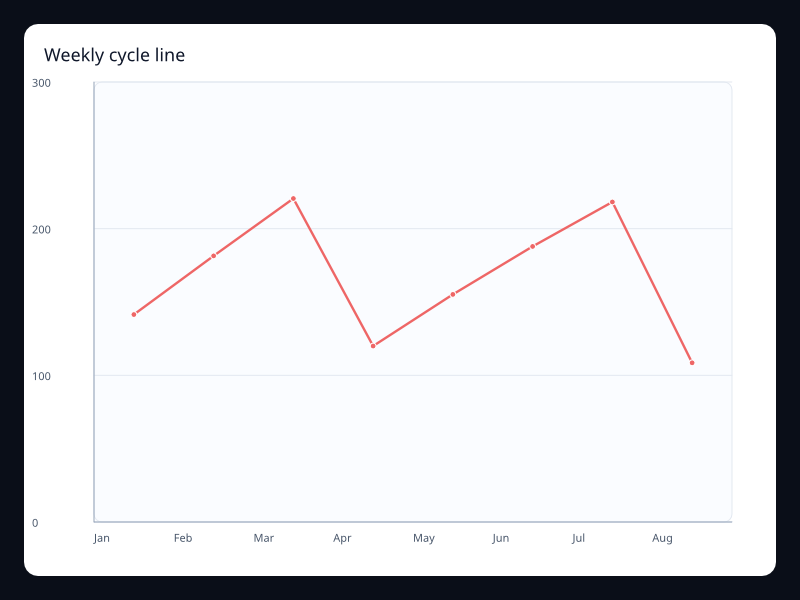

Basic line

A single ordered numeric series with a clear trend line.

Data

Vec<f32> on a category, value, or time axis.

Use when

Use it when the shape of change matters more than individual bars.

lineaxis

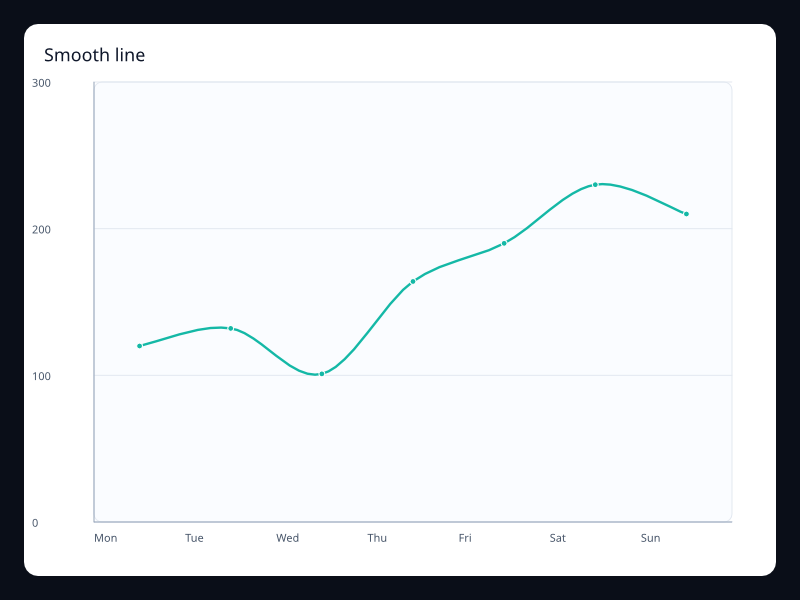

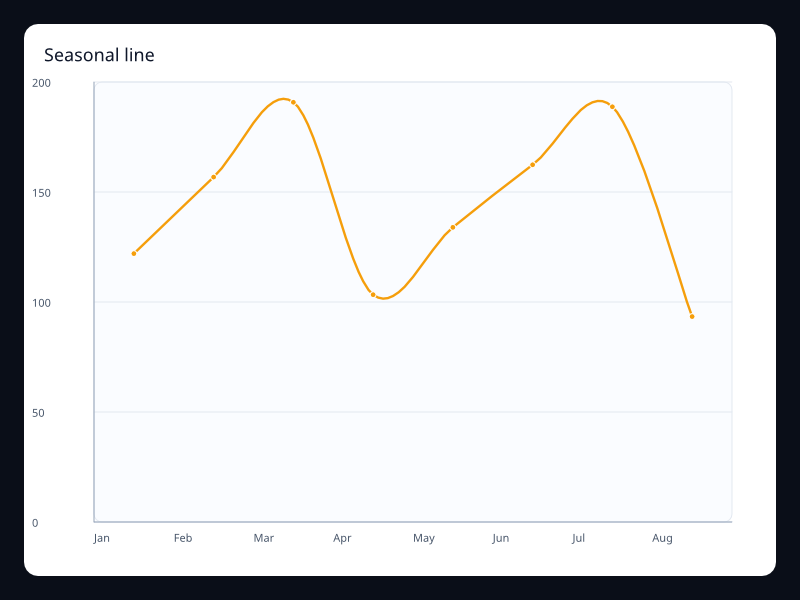

Smooth line

A continuous line with curve interpolation for softer trend reading.

Data

Vec<f32> with smooth interpolation enabled.

Use when

Use it for dashboards where the series is sampled often enough to justify interpolation.

linesmooth

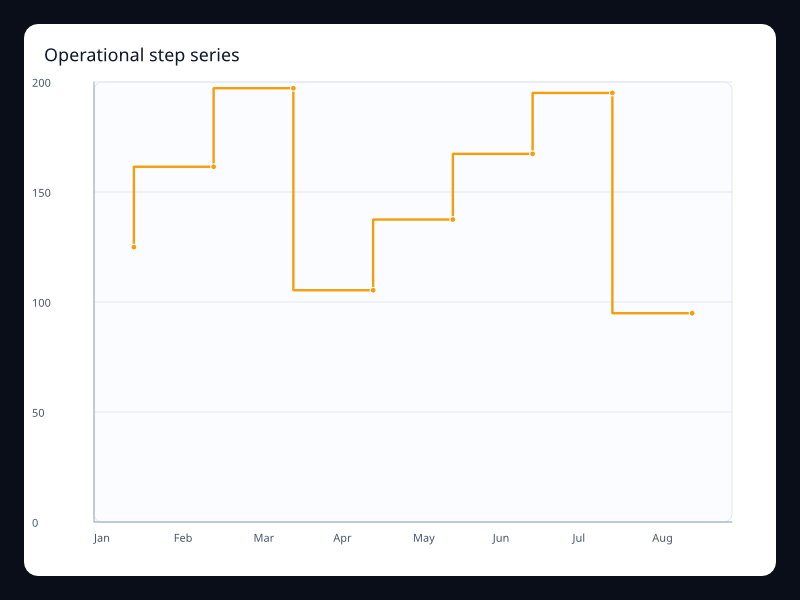

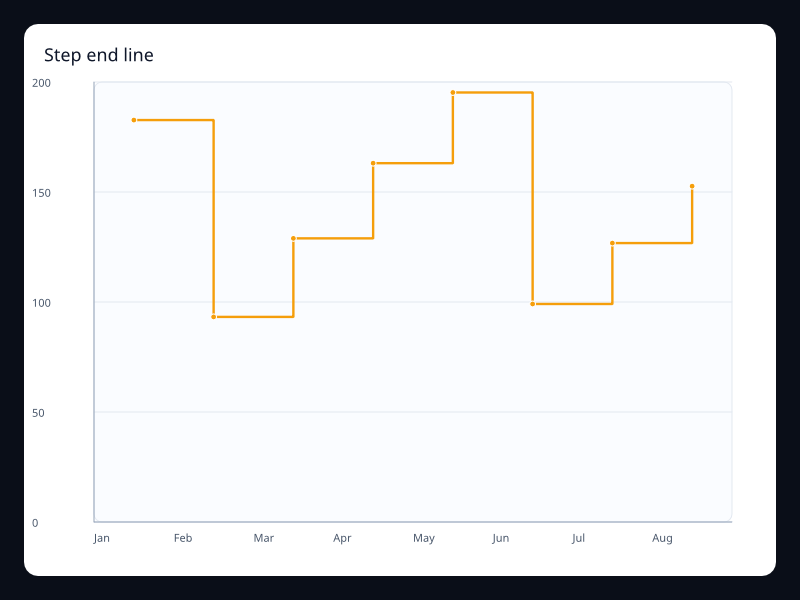

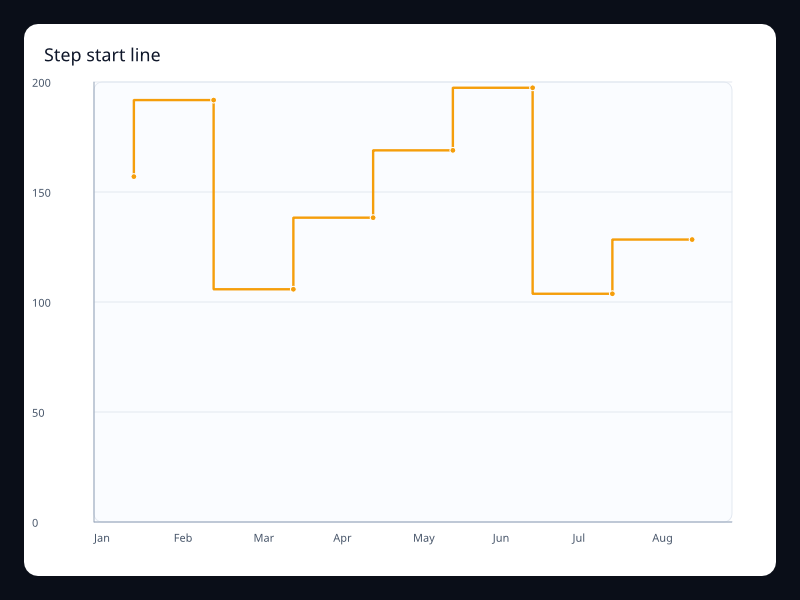

Step line

A line that changes in discrete jumps instead of continuous slopes.

Data

Vec<f32> with start, middle, or end step behavior.

Use when

Use it for counters, states, quotas, and event-driven changes.

linestep

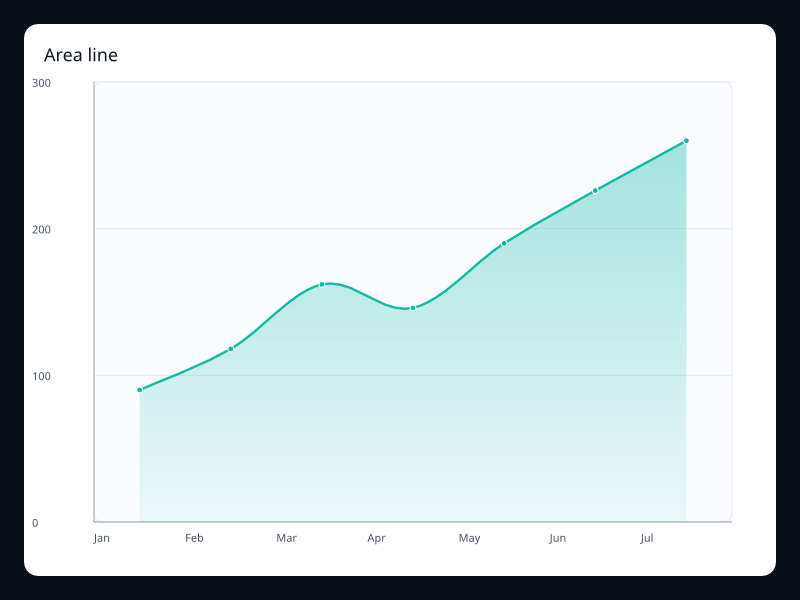

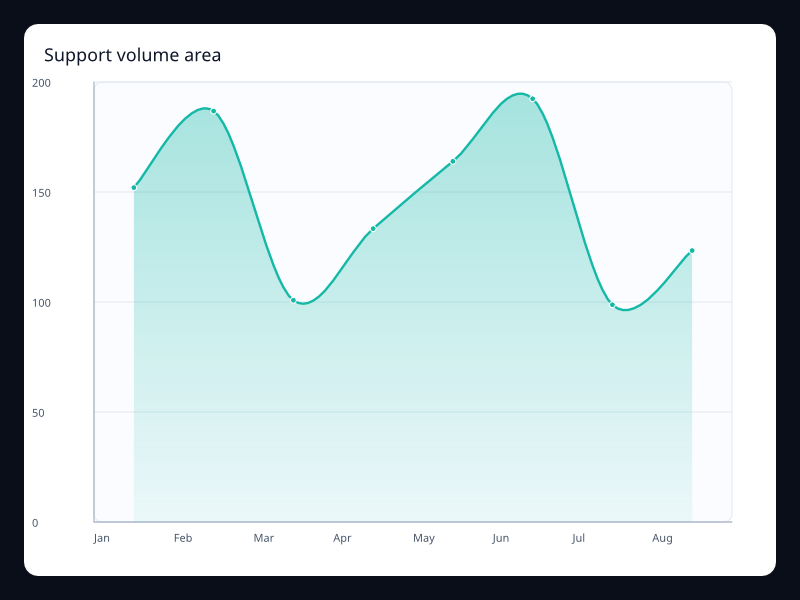

Area line

A line with filled area to emphasize magnitude over time.

Data

Vec<f32> plus area style.

Use when

Use it when total volume is as important as the outline.

linearea

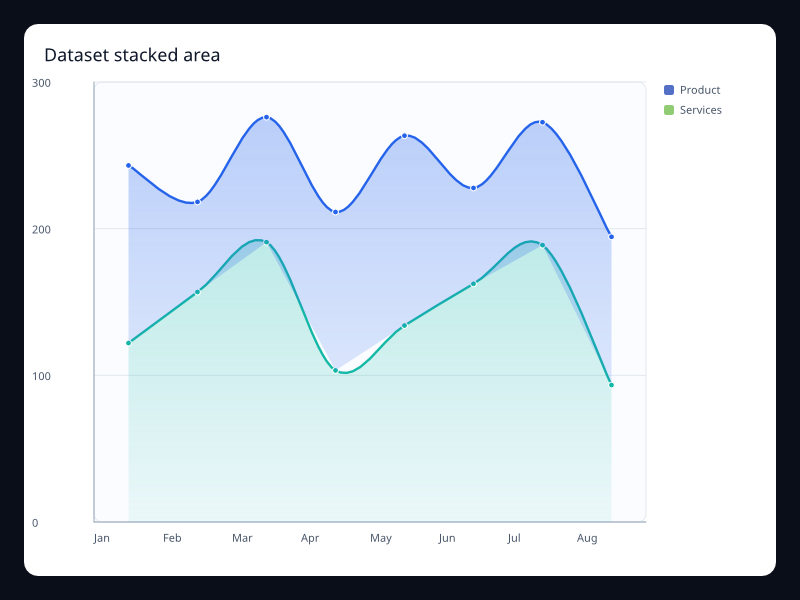

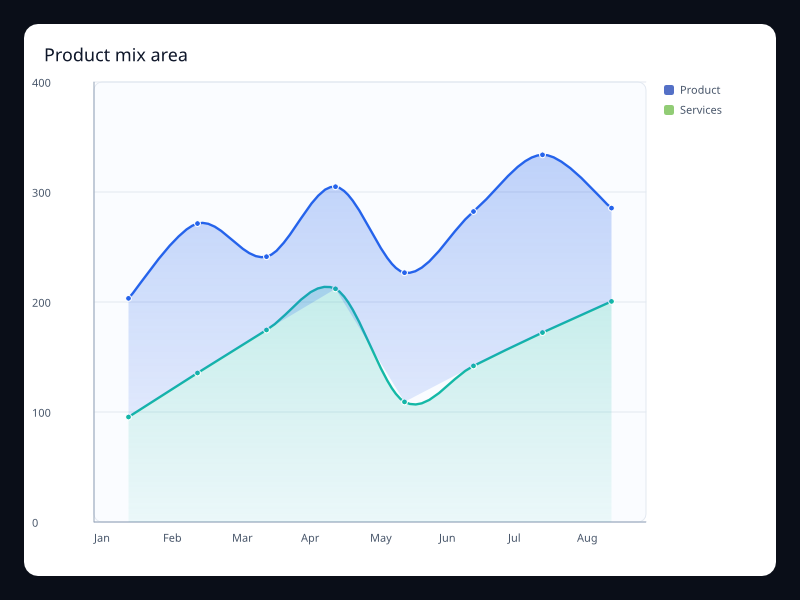

Stacked area

Multiple area series stacked into one total.

Data

Several line series sharing one stack key.

Use when

Use it to show composition over time without losing the total.

linestack

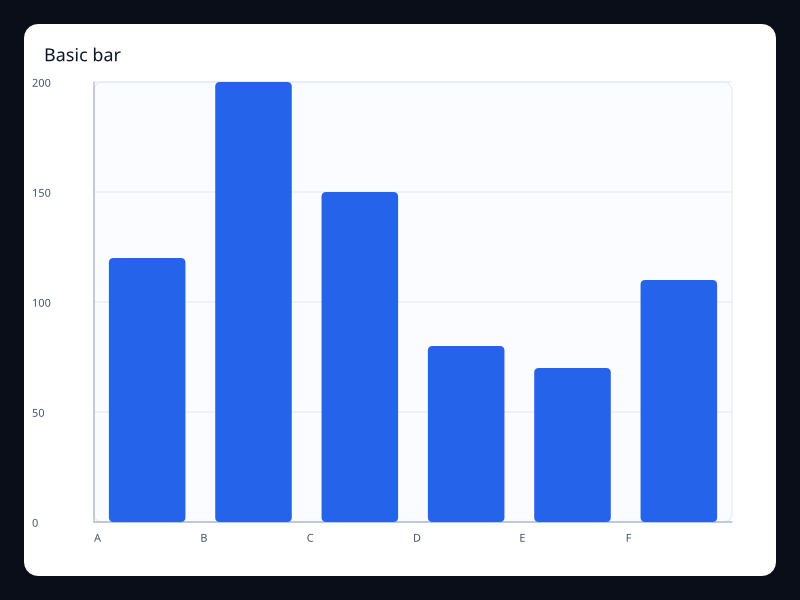

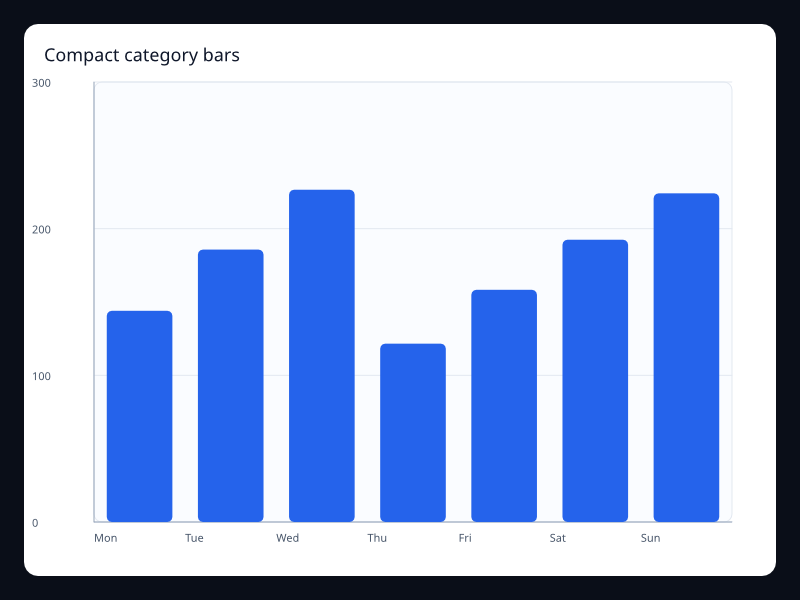

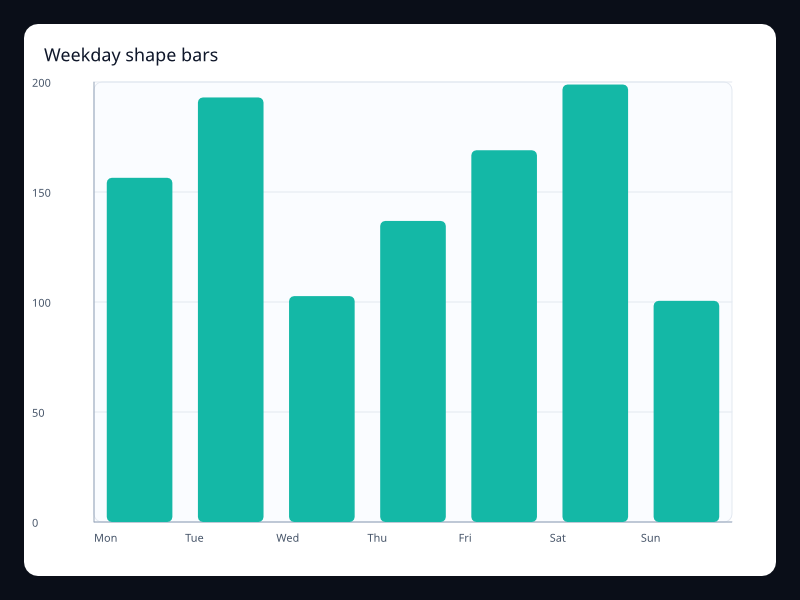

Basic bar

A category comparison using rectangular bars.

Data

Vec<f32> aligned to category labels.

Use when

Use it when individual values need easy comparison.

barcategory

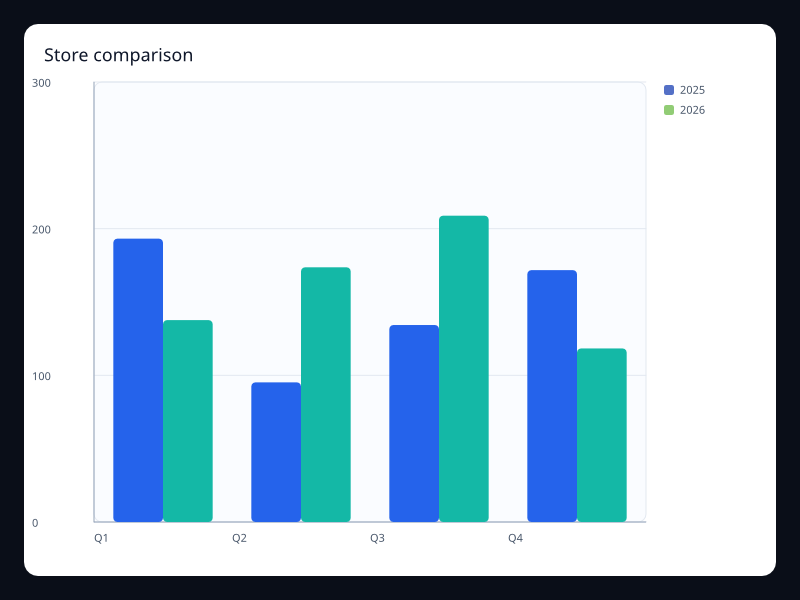

Grouped bar

Several bar series shown side by side for each category.

Data

Multiple bar series sharing the same category axis.

Use when

Use it to compare related measures within each group.

bargrouped

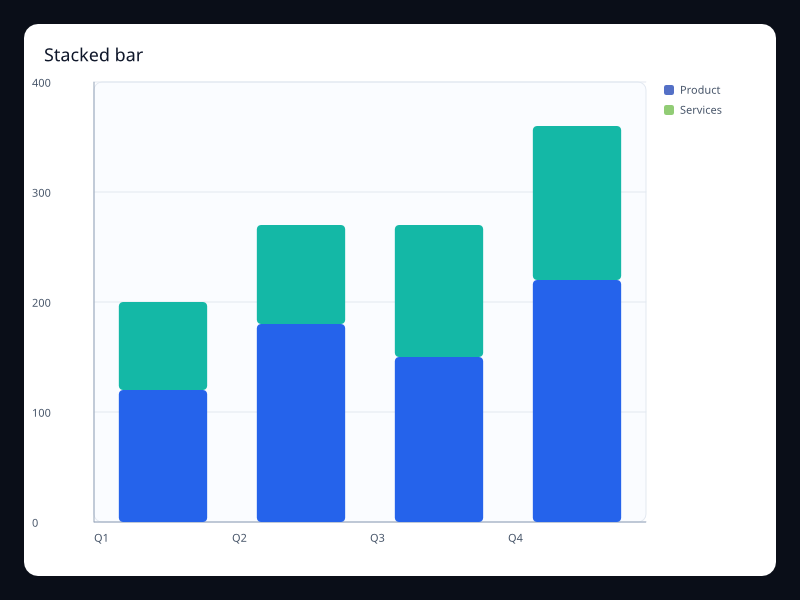

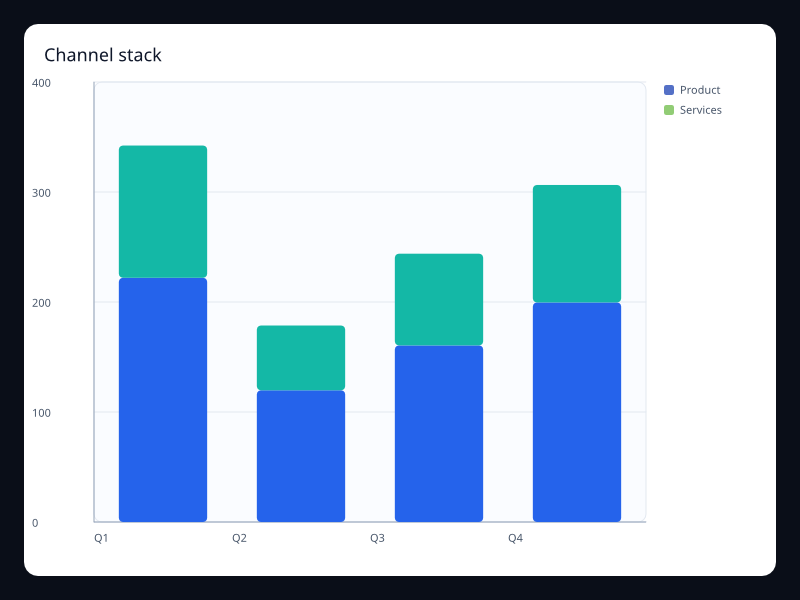

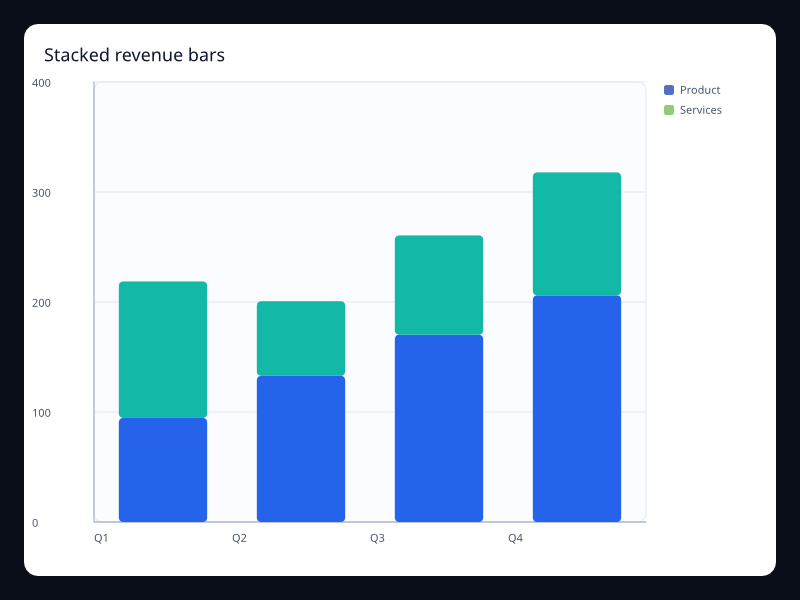

Stacked bar

Bars stacked into a cumulative total for each category.

Data

Multiple bar series sharing one stack key.

Use when

Use it to show composition and total at the same time.

barstack

Pictorial bar

Bars represented by repeated symbols or a custom path.

Data

Numeric values plus symbol choice.

Use when

Use it when the chart should feel branded without giving up scale.

barsymbol

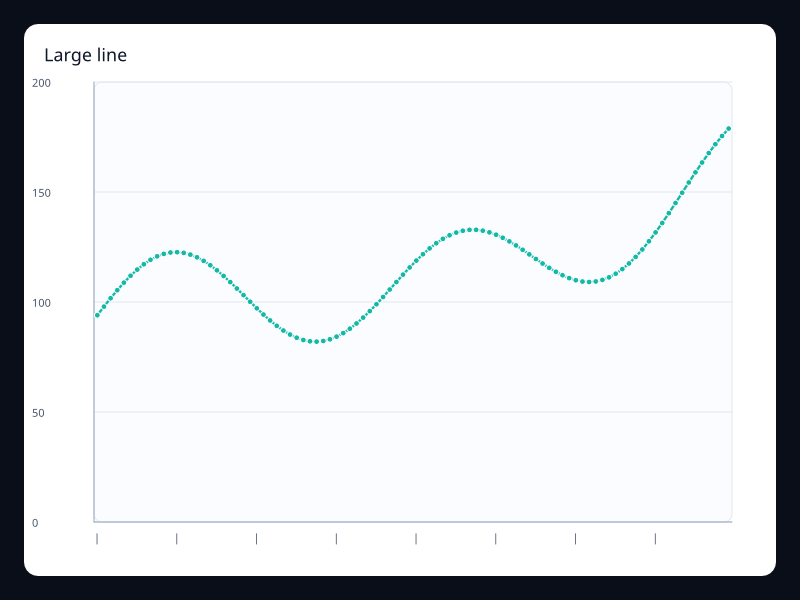

Large line

A dense ordered series rendered as a continuous trend without changing the app model.

Data

A longer Vec<f32> aligned to ordered category samples.

Use when

Use it for telemetry, monitoring, and sampled metrics where the trend matters more than every label.

linelarge

Horizontal bar

A category comparison with value length running left to right.

Data

BarSeries values with a category y-axis and value x-axis.

Use when

Use it when category labels are long or ranking order is more important than time order.

barhorizontal

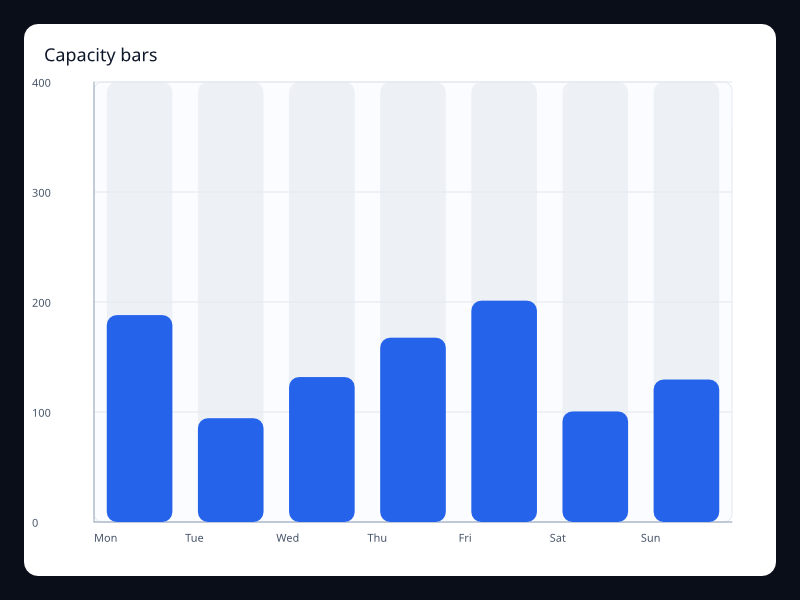

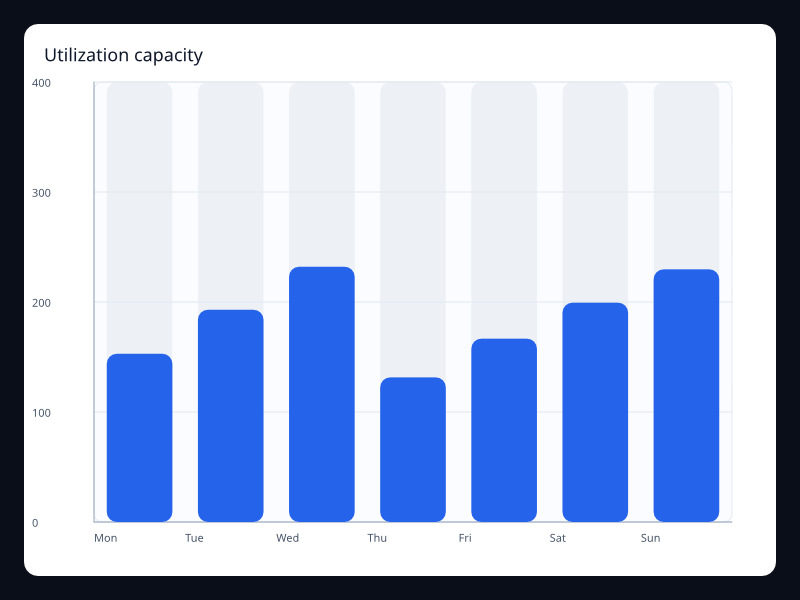

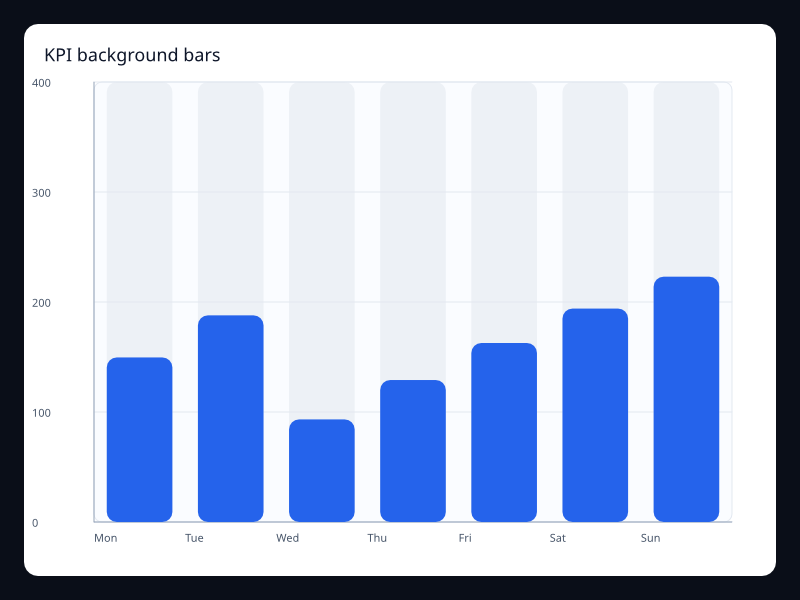

Bar with background

Rounded bars drawn over a full-range background track.

Data

BarSeries values plus background and border-radius styling.

Use when

Use it for progress-like category comparisons where the maximum should remain visible.

barbackground

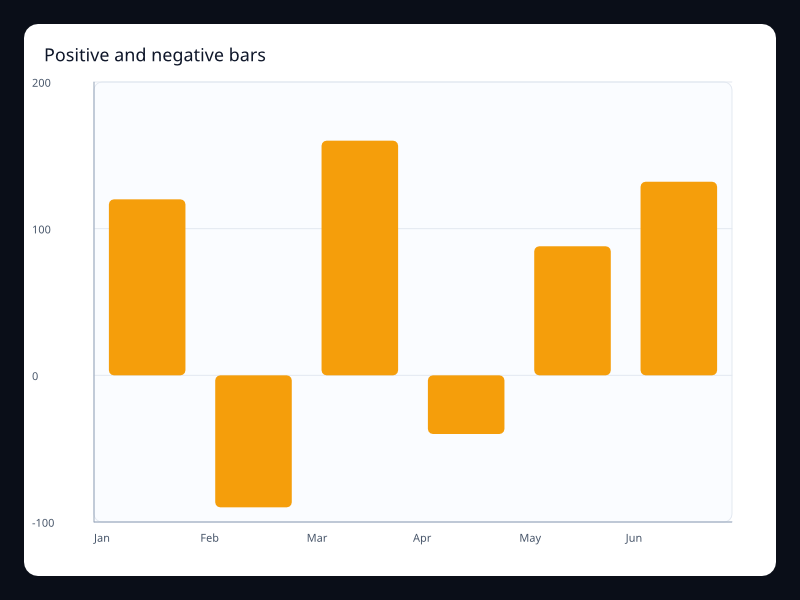

Positive and negative bar

Bars extending above and below the zero baseline.

Data

BarSeries values that may be positive or negative.

Use when

Use it for deltas, profit/loss, variance, and month-over-month movement.

barnegative

Chart family

Radial and polar

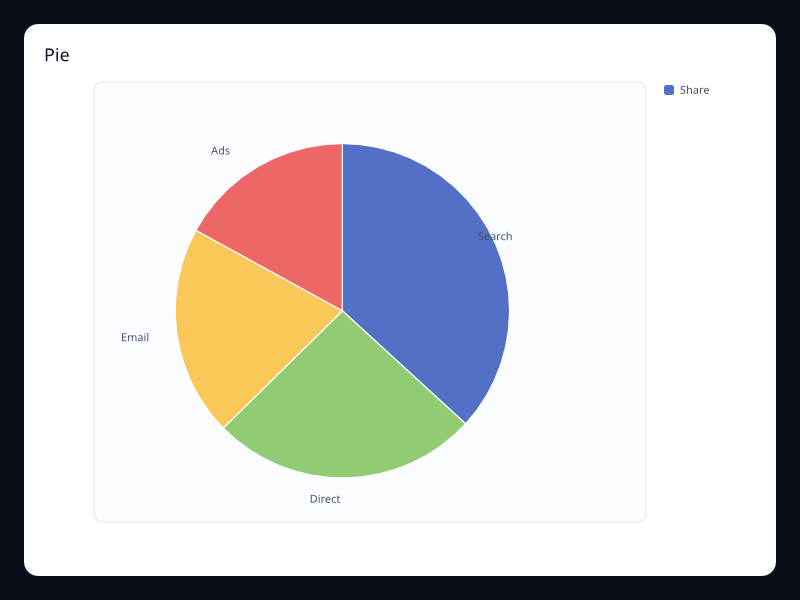

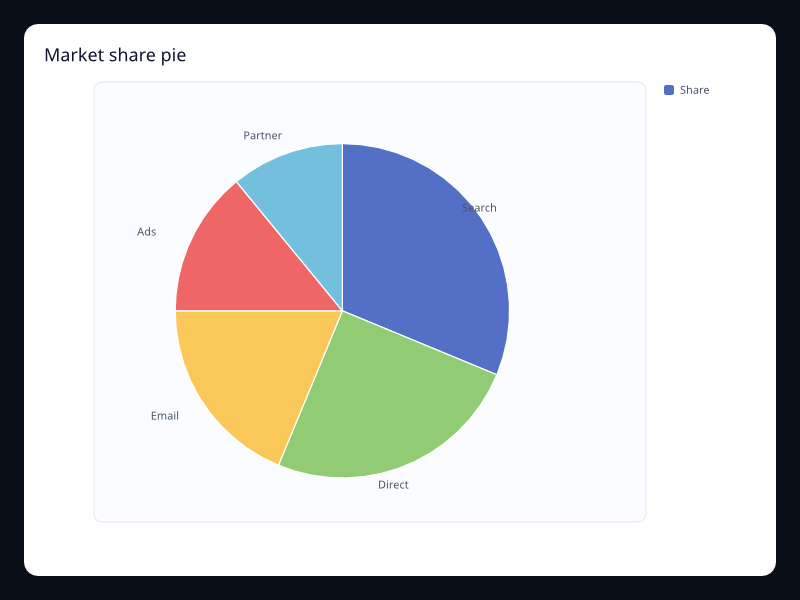

Pie

A circular part-to-whole chart.

Data

Label/value pairs.

Use when

Use it for a small number of categories where the whole matters.

piepart-to-whole

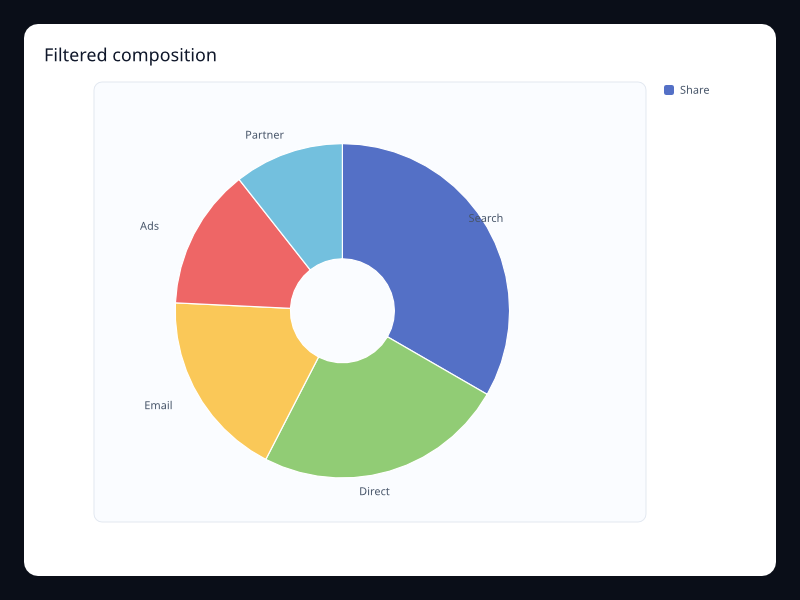

Donut

A pie chart with an open center for a total or primary label.

Data

Label/value pairs plus inner radius.

Use when

Use it when the whole needs a central value or status.

piedonut

Rose by radius

Slices use radius to make category differences more expressive.

Data

Label/value pairs plus radius rose mode.

Use when

Use it for presentation-heavy part-to-whole views.

pierose

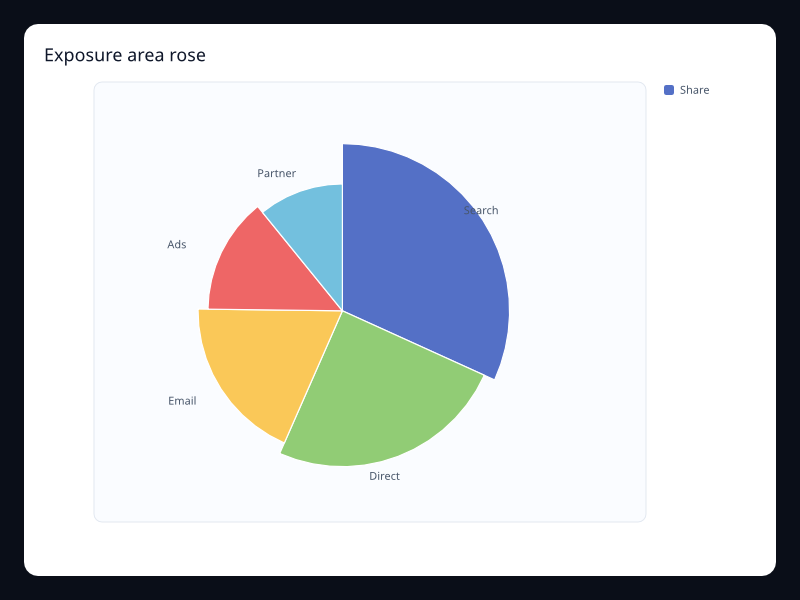

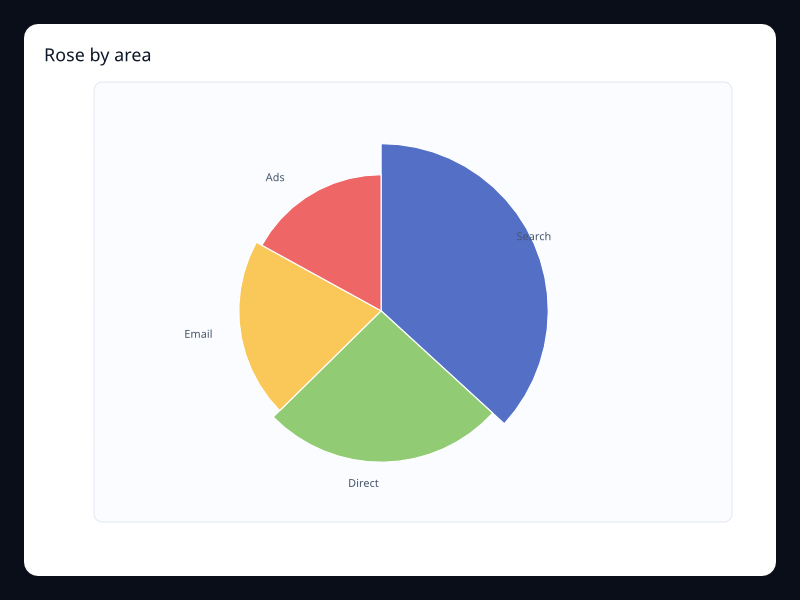

Rose by area

Slices use area-oriented radius scaling for a softer rose chart.

Data

Label/value pairs plus area rose mode.

Use when

Use it when rose slices should emphasize difference without making small values disappear.

pierose

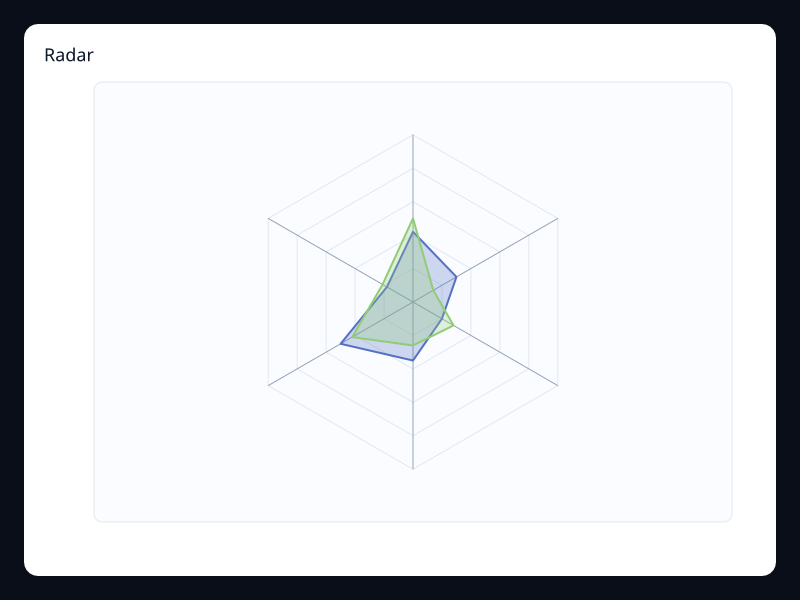

Radar

Multiple metrics plotted around a circular axis set.

Data

Vec<Vec<f32>> where each row is one profile.

Use when

Use it for profile comparison across a fixed set of dimensions.

radarprofile

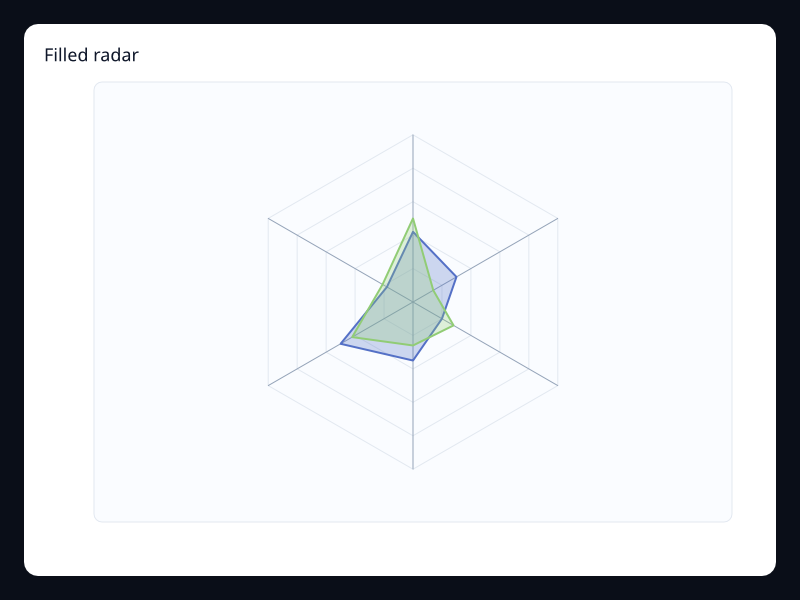

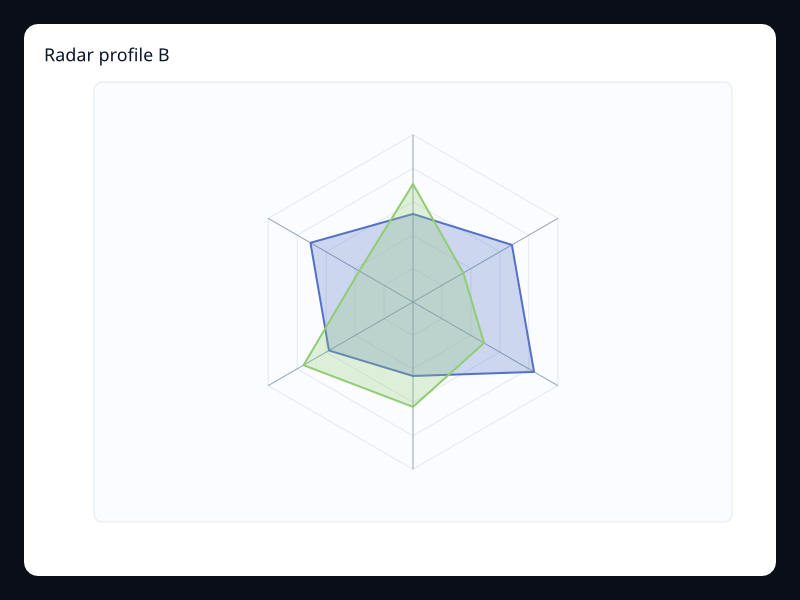

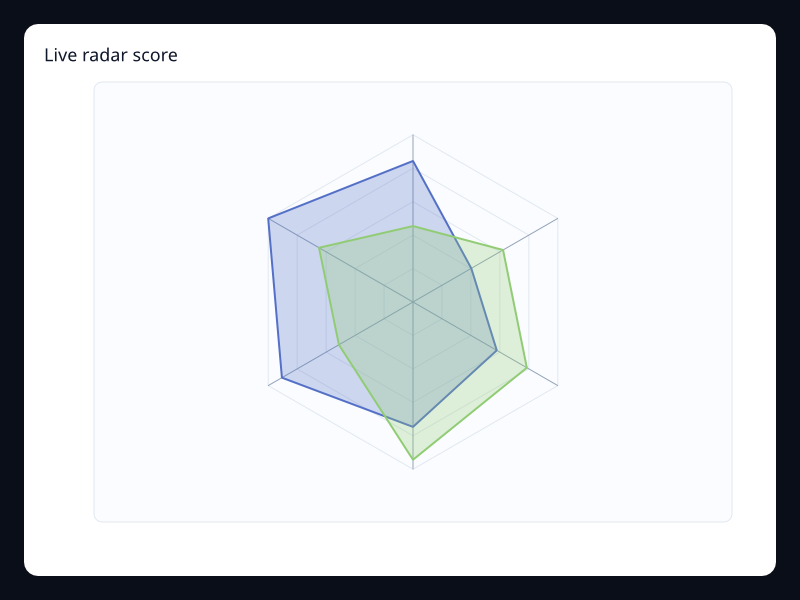

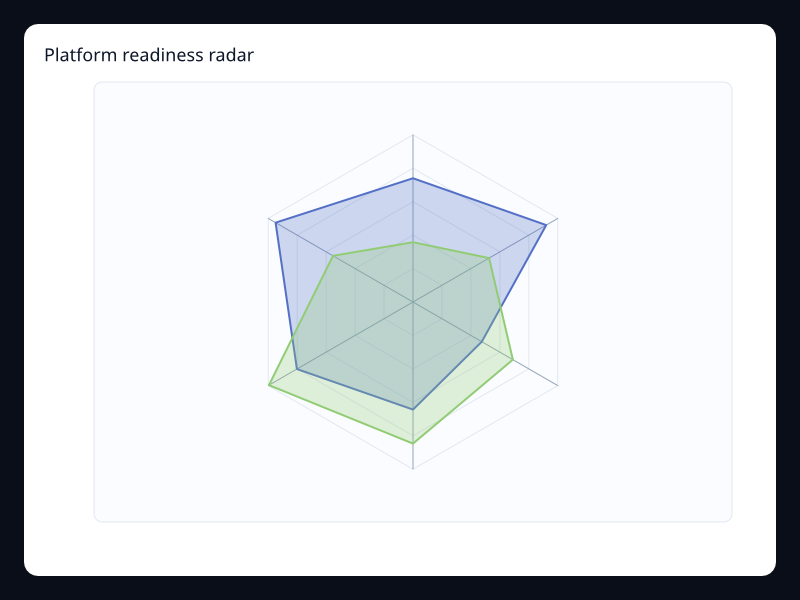

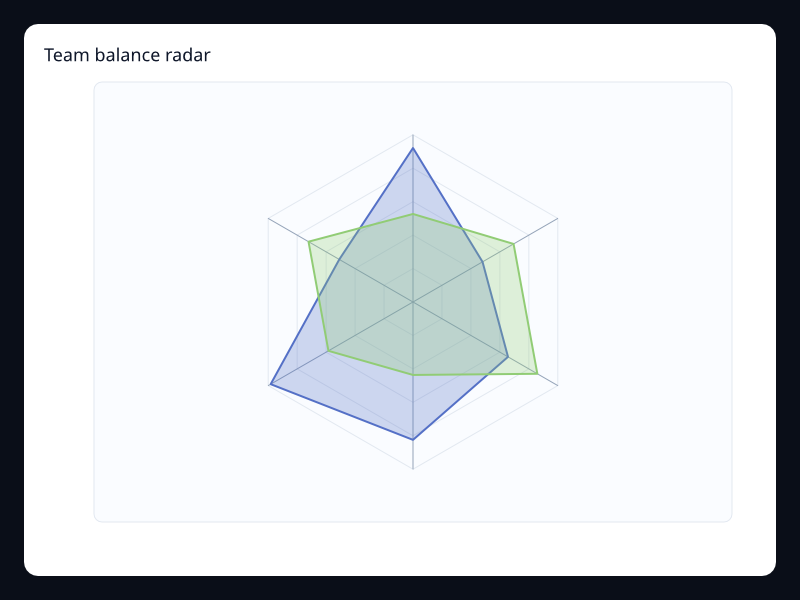

Filled radar

A radar chart with filled polygons for easier shape comparison.

Data

Metric profiles plus fill style.

Use when

Use it when profile area and overlap should be visible.

radarprofile

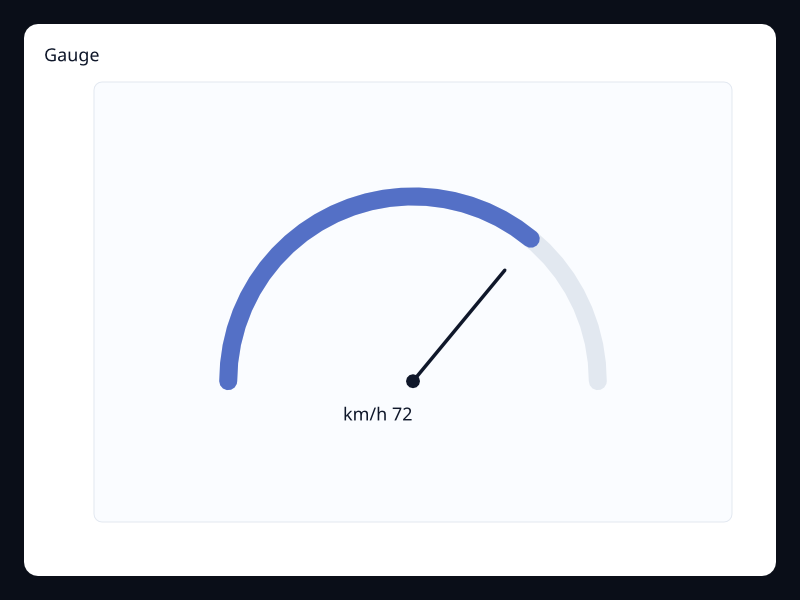

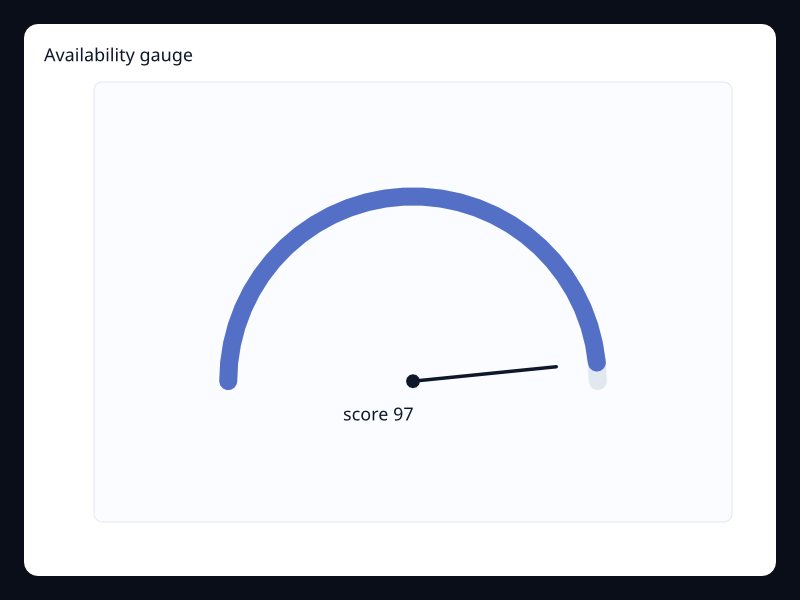

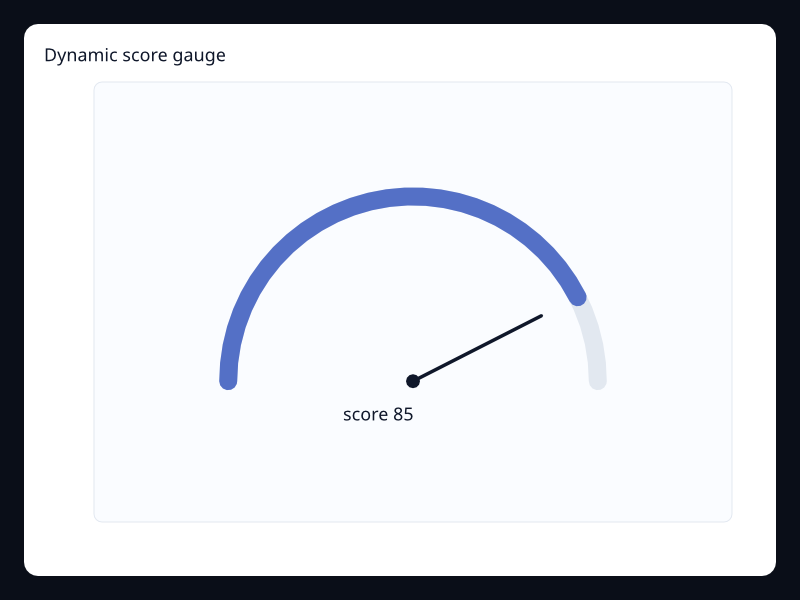

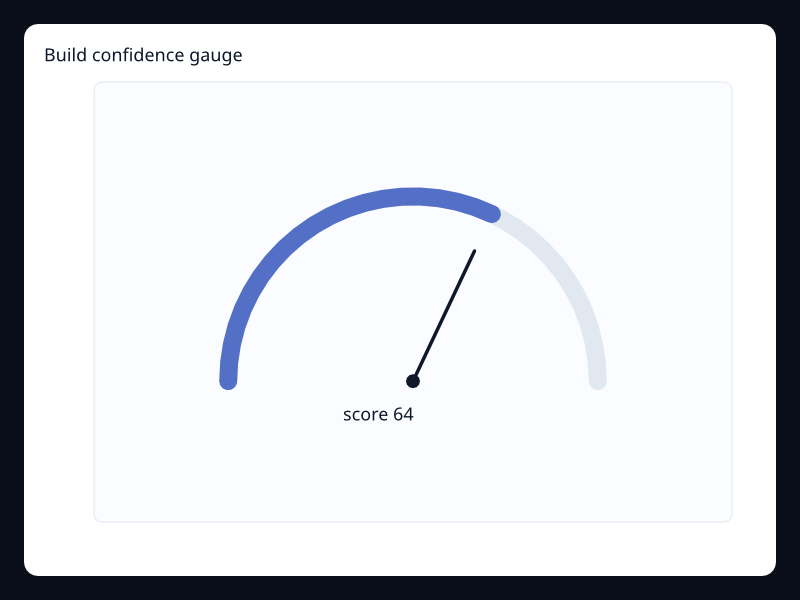

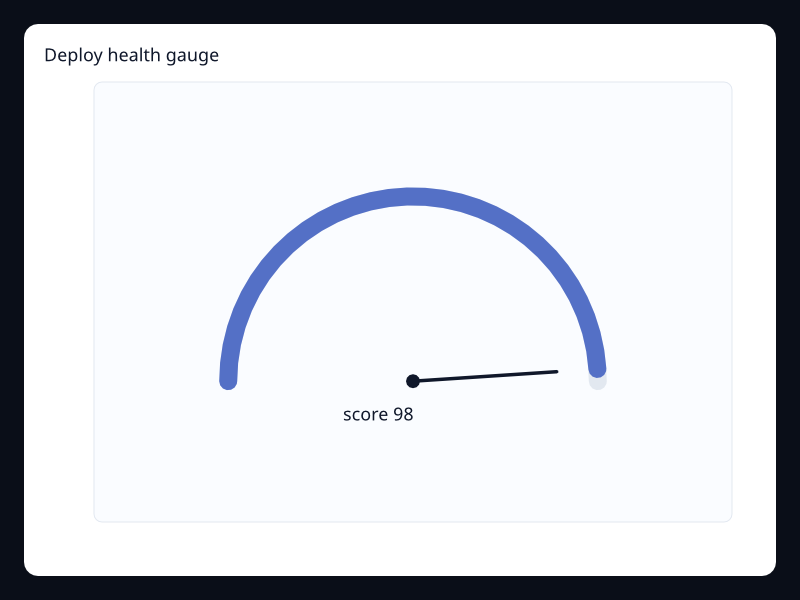

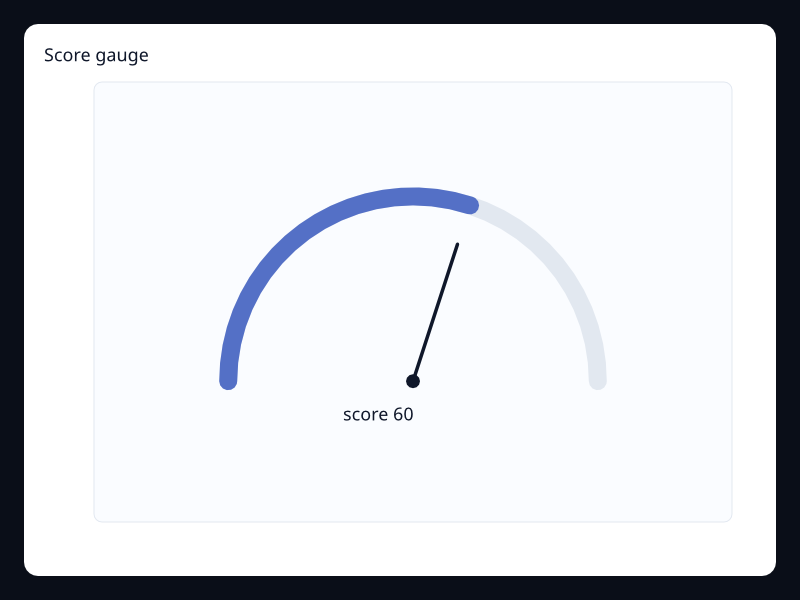

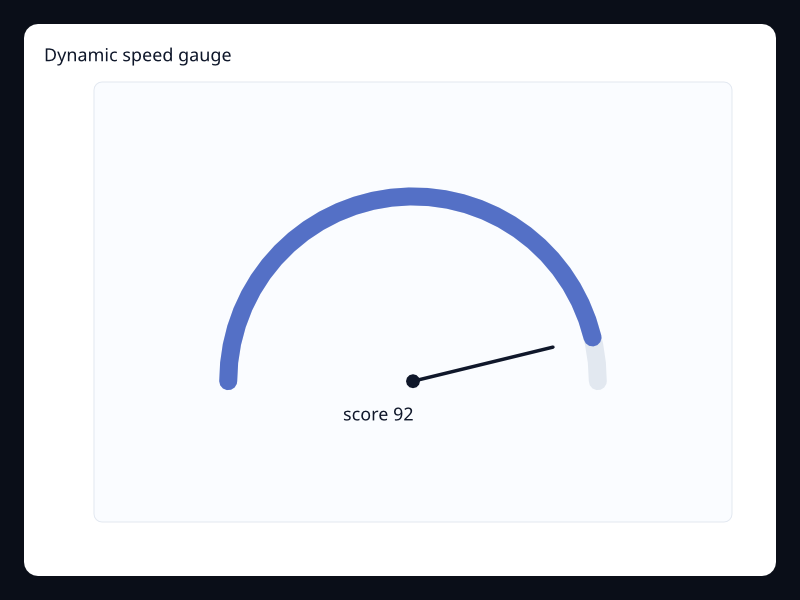

Gauge

A dial-style chart for one bounded measure.

Data

One label/value pair with an expected range.

Use when

Use it when the value is read as a current instrument state.

gaugestatus

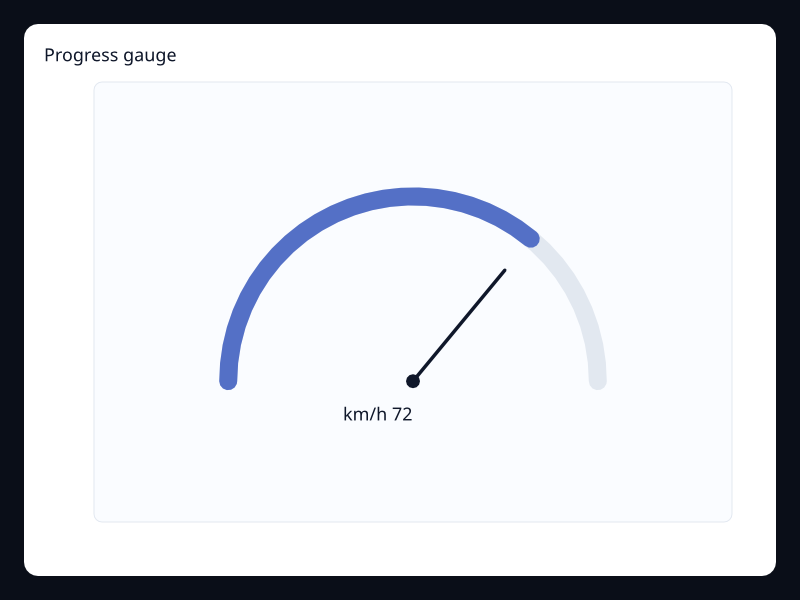

Progress gauge

A gauge emphasizing completed amount rather than a raw number.

Data

One or more bounded values.

Use when

Use it for operational progress and service health panels.

gaugeprogress

Liquid fill

A circular fill indicator with a wave-shaped level.

Data

One or more percentages.

Use when

Use it for capacity, completion, or quota states.

liquidstatus

Chart family

Statistical and finance

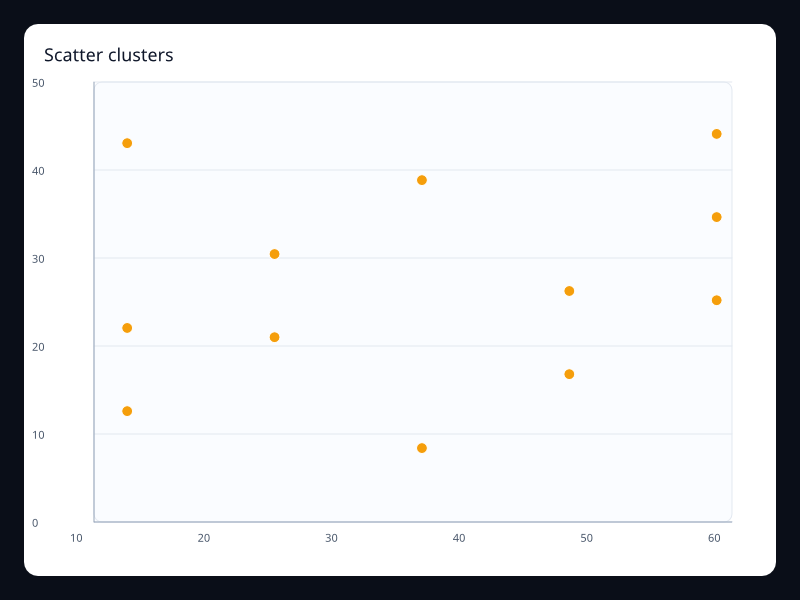

Scatter

Points plotted by two numeric dimensions.

Data

Vec<(f32, f32)>.

Use when

Use it to find relationship, clustering, or outliers.

scattercorrelation

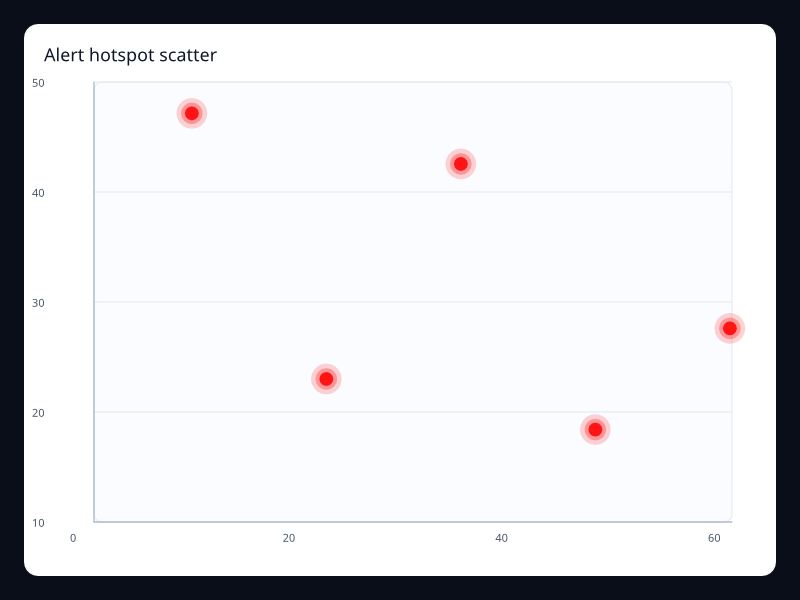

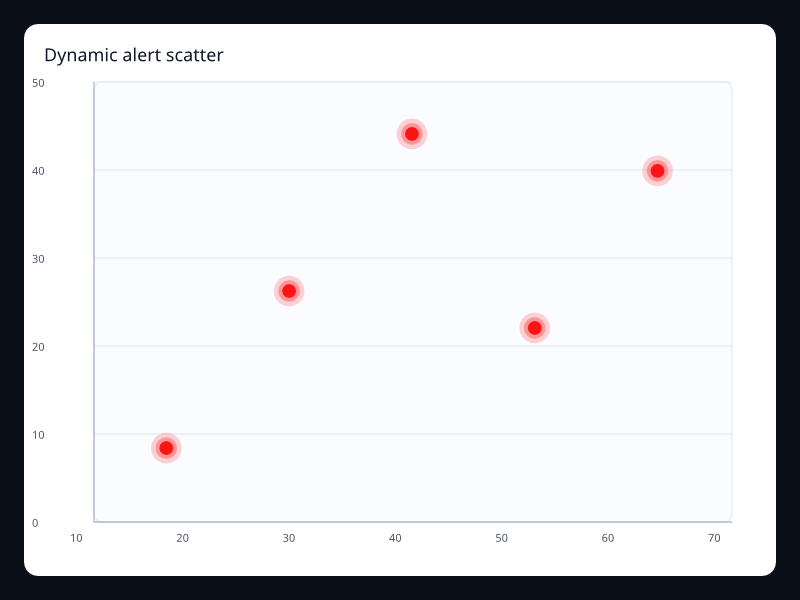

Effect scatter

Scatter points with emphasis rings for important observations.

Data

Vec<(f32, f32)> plus emphasis styling.

Use when

Use it to mark active locations, alerts, or selected results.

scattereffect

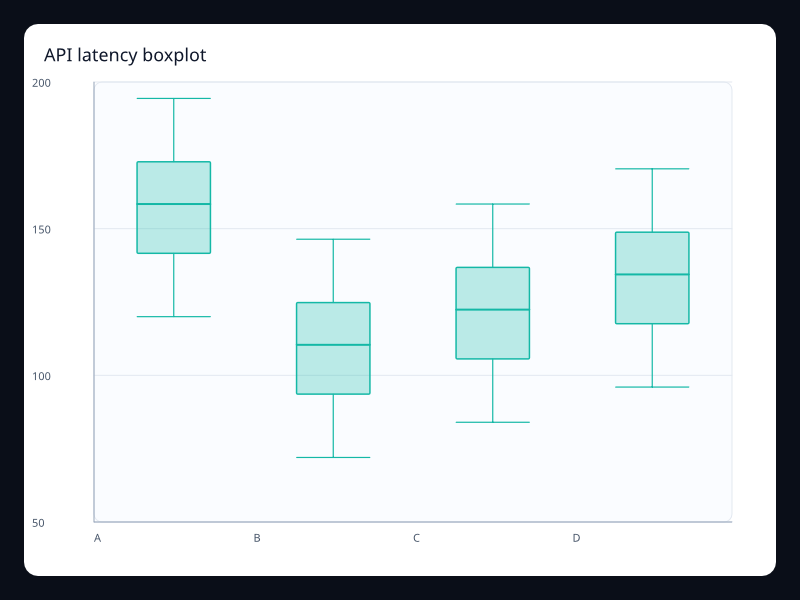

Boxplot

A distribution summary showing min, quartiles, median, and max.

Data

Rows of five-number summaries or raw groups.

Use when

Use it when distribution matters more than a single average.

statisticsdistribution

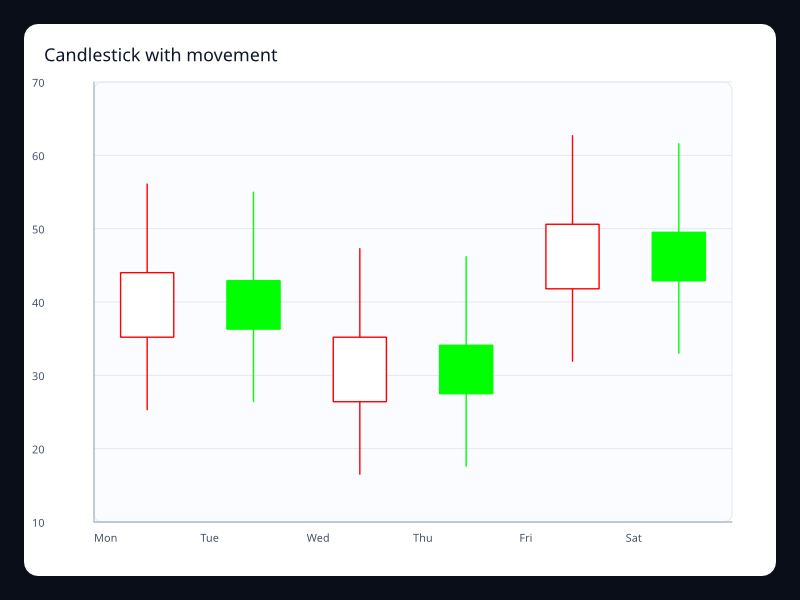

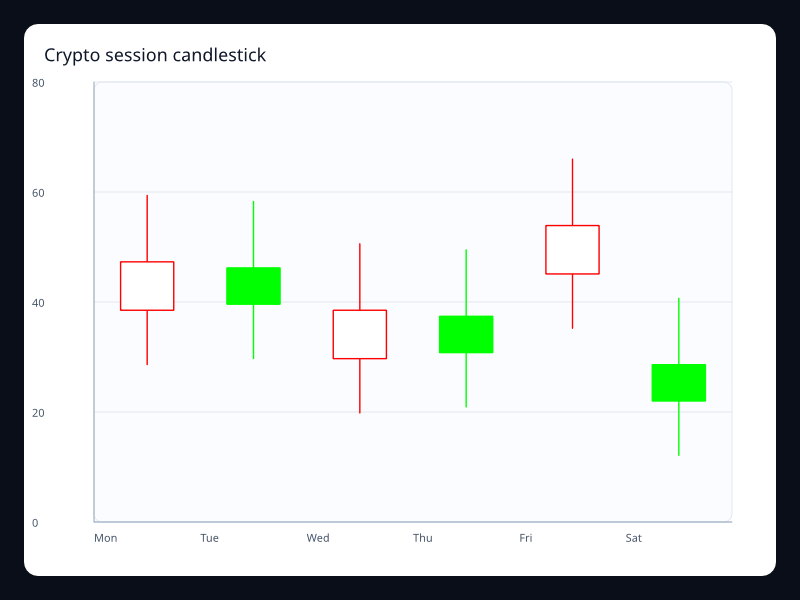

Candlestick

Open, close, low, and high values drawn as market candles.

Data

Rows of open, close, low, high values.

Use when

Use it for finance and other range-over-time data.

financeohlc

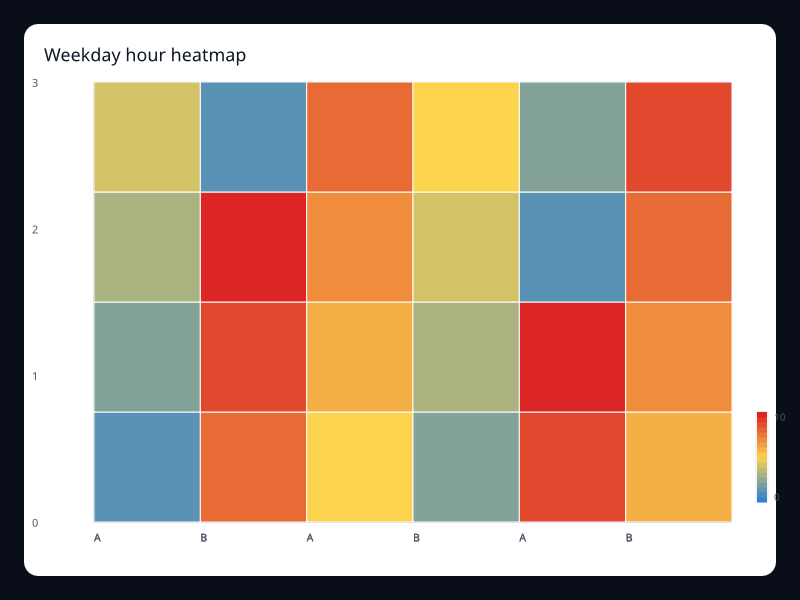

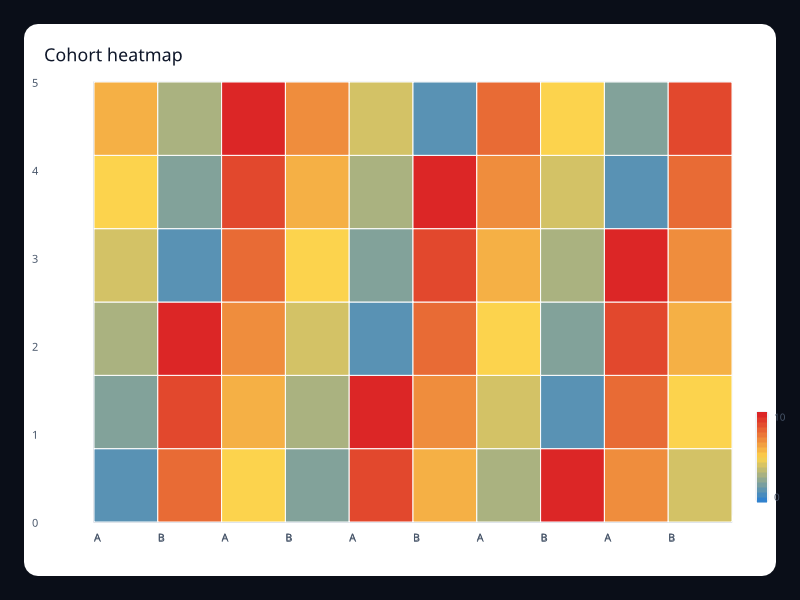

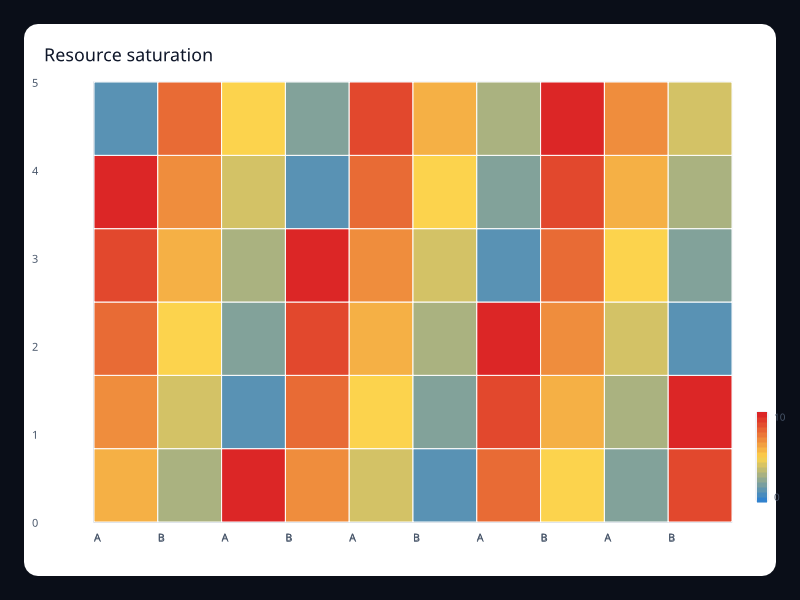

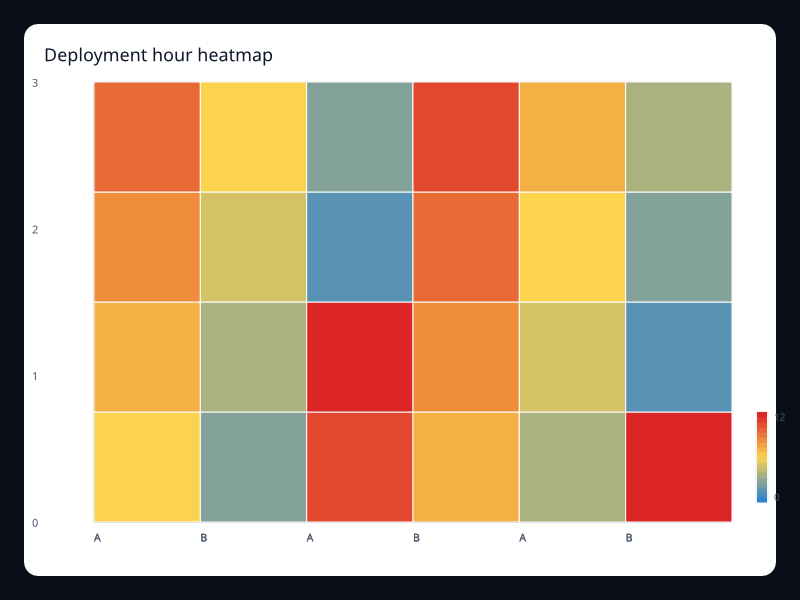

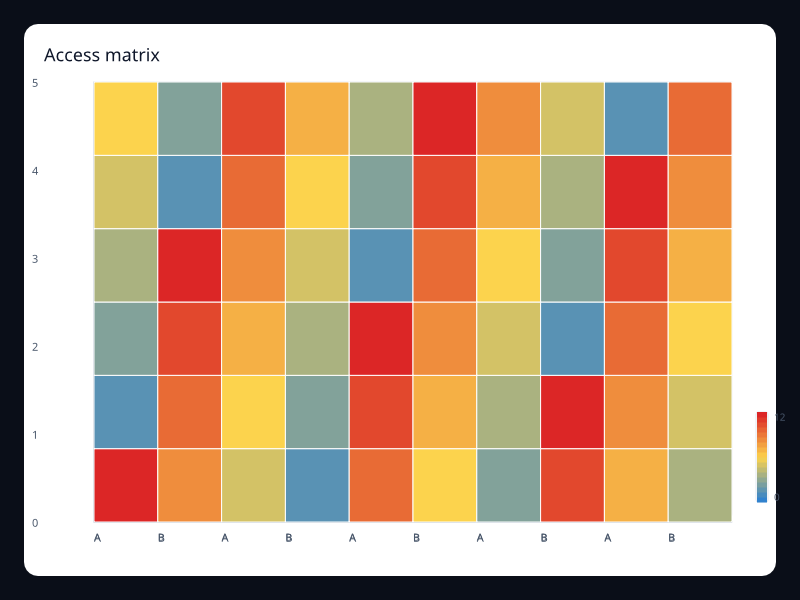

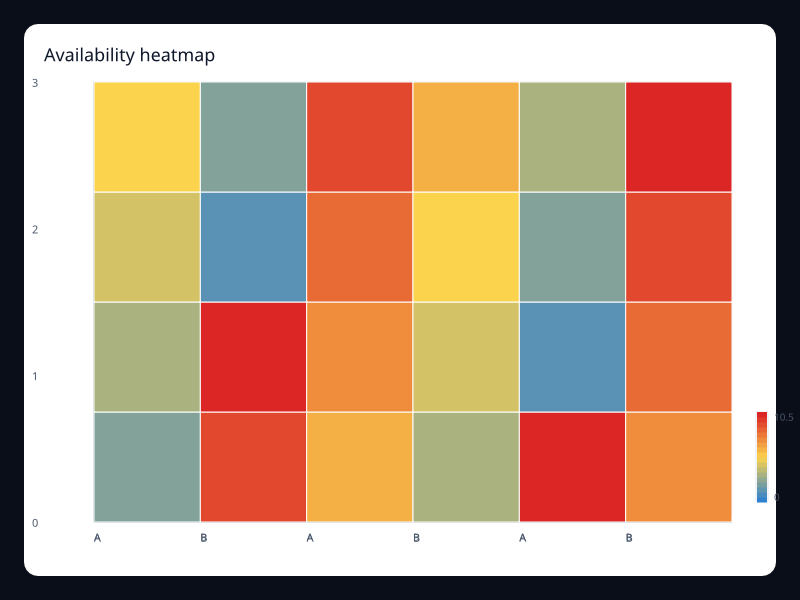

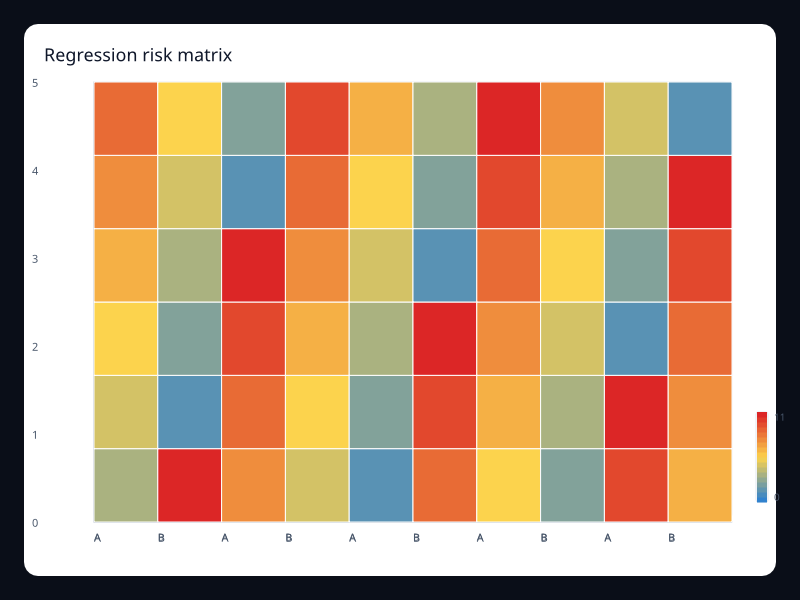

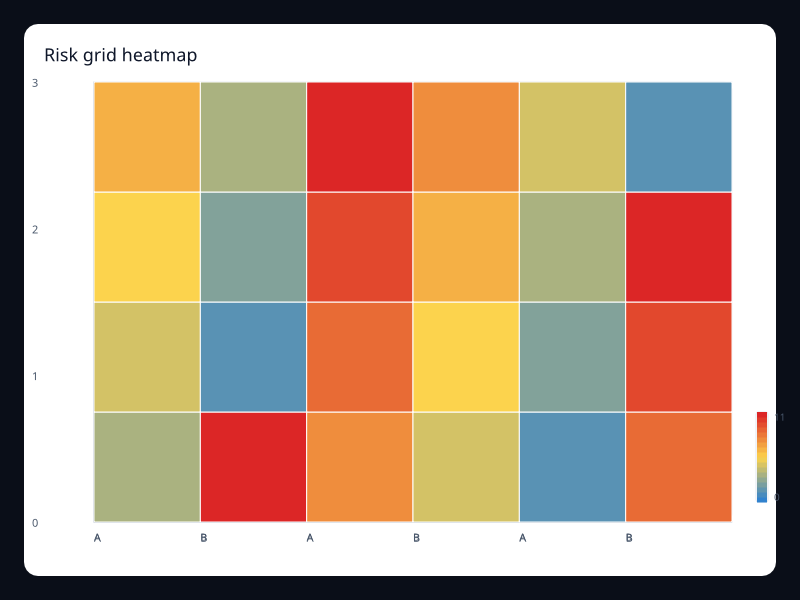

Cartesian heatmap

A rectangular value matrix rendered with a color scale.

Data

x index, y index, and value triples.

Use when

Use it for density, activity, and matrix-style comparison.

heatmapmatrix

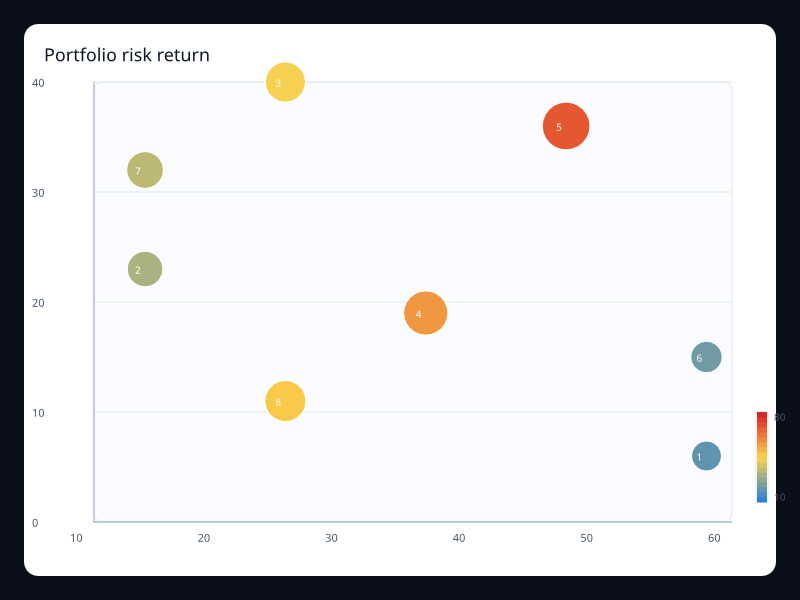

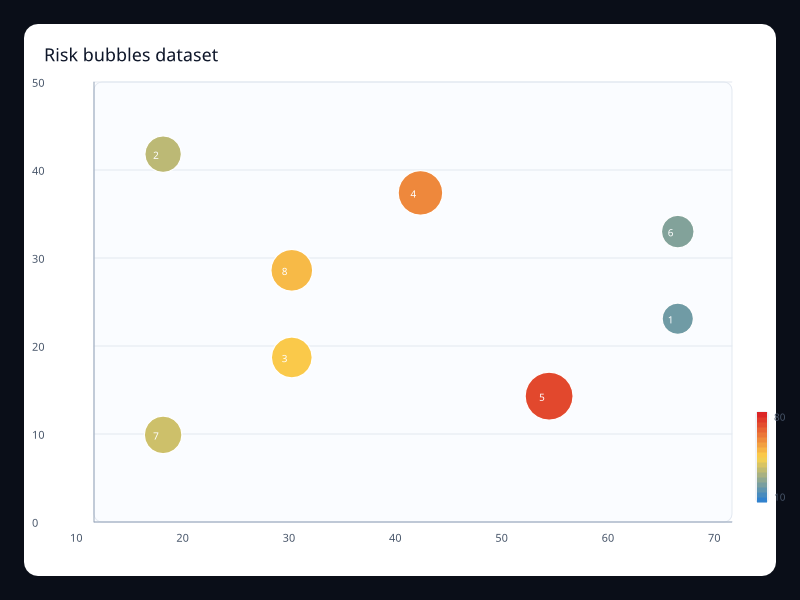

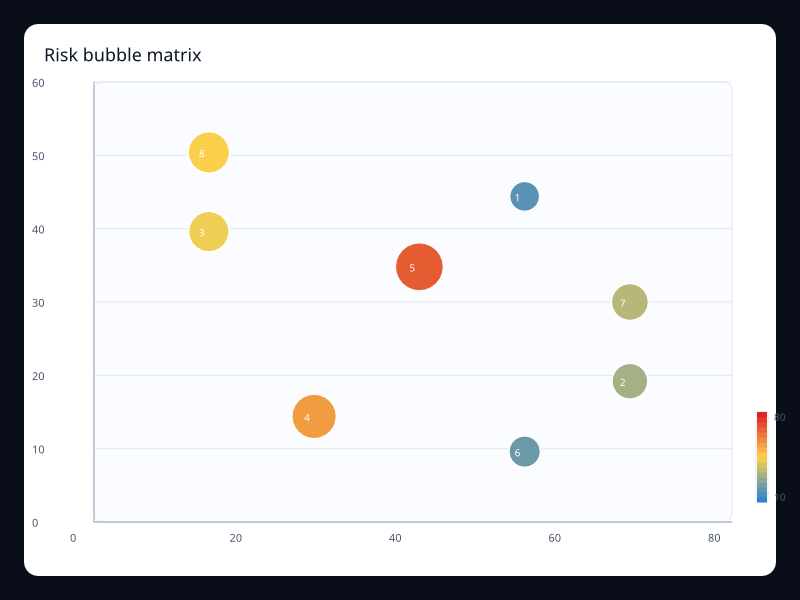

Bubble scatter

Scatter points where bubble size carries a third numeric dimension.

Data

Vec<(x, y, size)>.

Use when

Use it when two axes are not enough and size can encode importance or volume.

scatterbubble

Chart family

Relationships and hierarchy

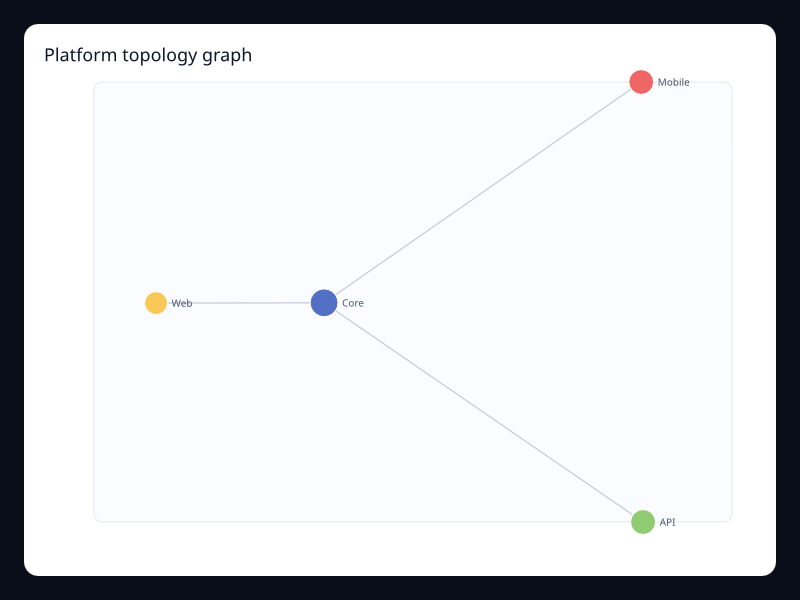

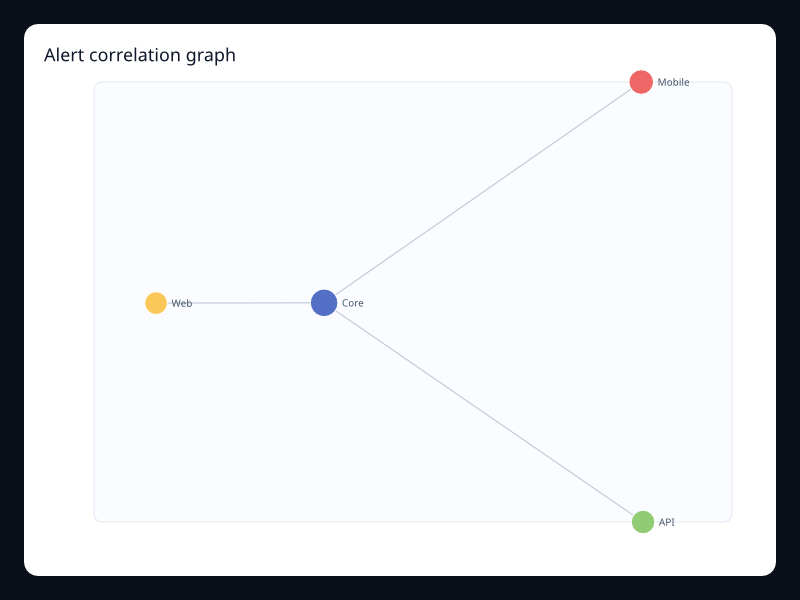

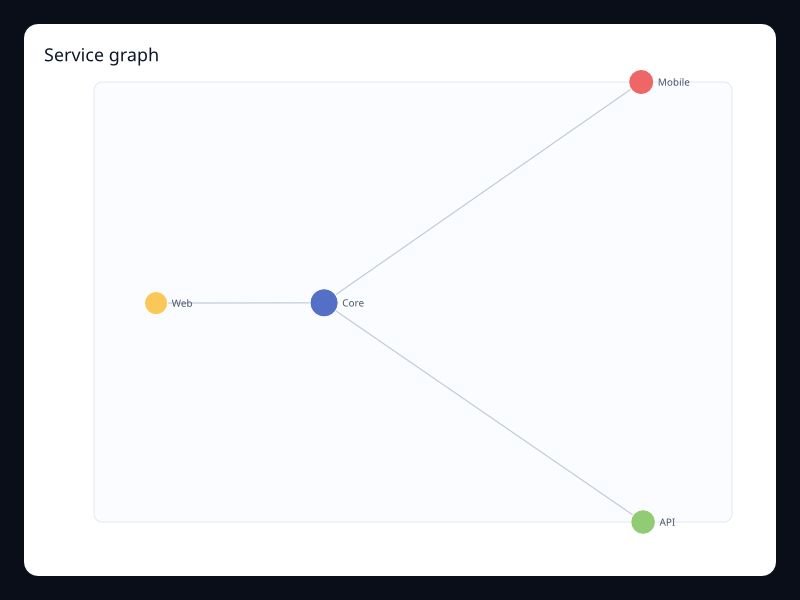

Force graph

Nodes and edges arranged into a readable network.

Data

Node list plus edge list.

Use when

Use it for dependency, social, and topology diagrams.

graphnetwork

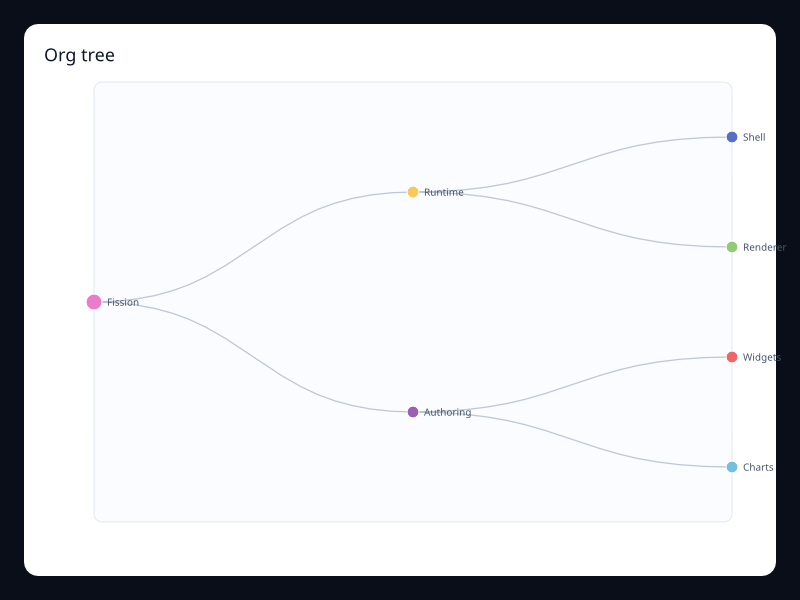

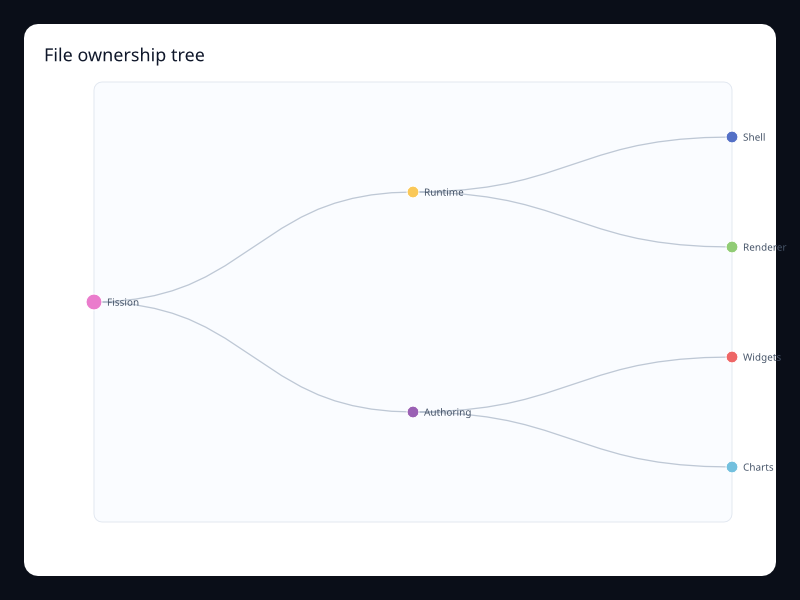

Tree

A rooted hierarchy drawn with parent-child links.

Data

Nested nodes with optional values.

Use when

Use it for navigation structures, ownership trees, and dependency drilldown.

treehierarchy

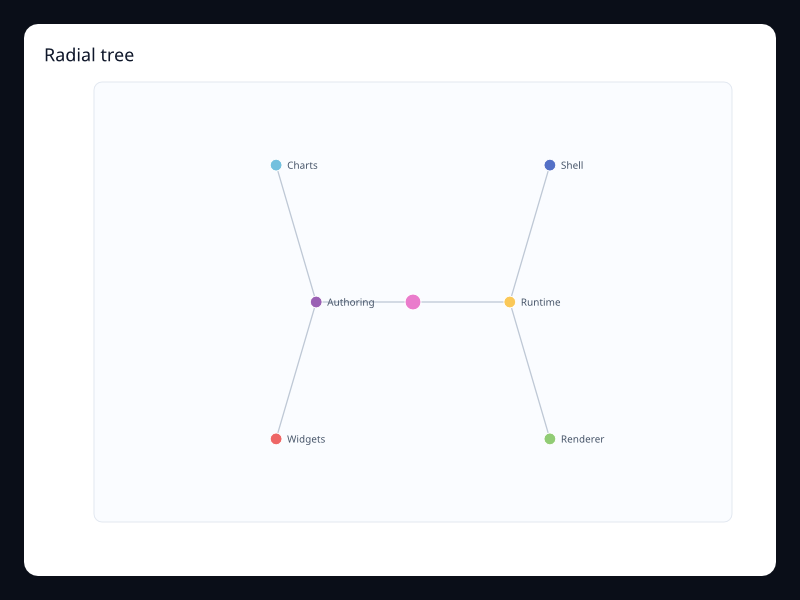

Radial tree

A tree layout arranged around a circle.

Data

Nested nodes with optional values.

Use when

Use it when the hierarchy is shallow and symmetry matters more than linear reading.

treeradial

Treemap

Hierarchical values packed into rectangles.

Data

Nested nodes with values.

Use when

Use it for storage, budgets, or part-to-whole hierarchy.

treemaphierarchy

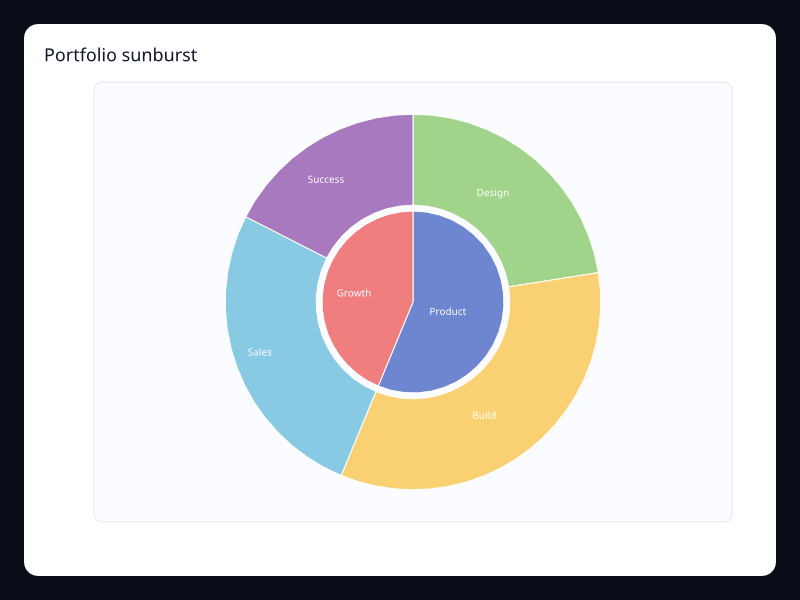

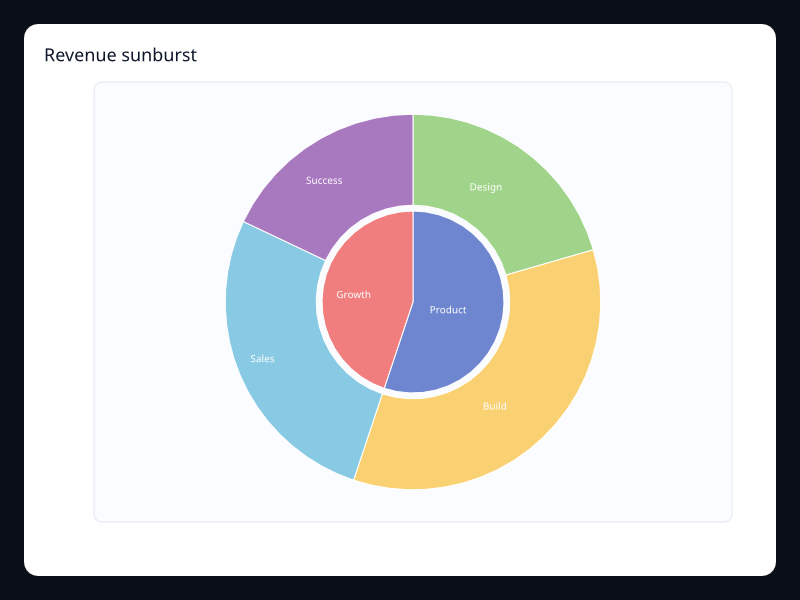

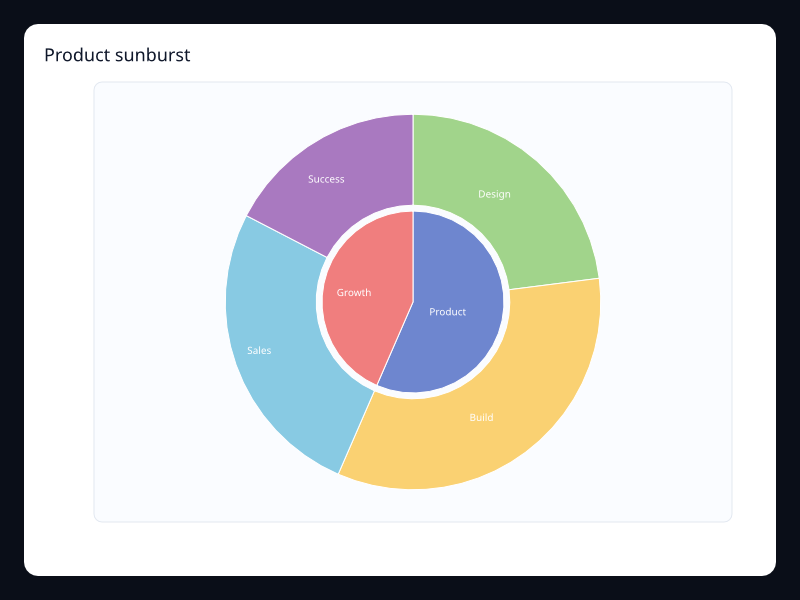

Sunburst

A hierarchy drawn as concentric rings.

Data

Nested nodes with values.

Use when

Use it when hierarchy depth should remain visible.

sunbursthierarchy

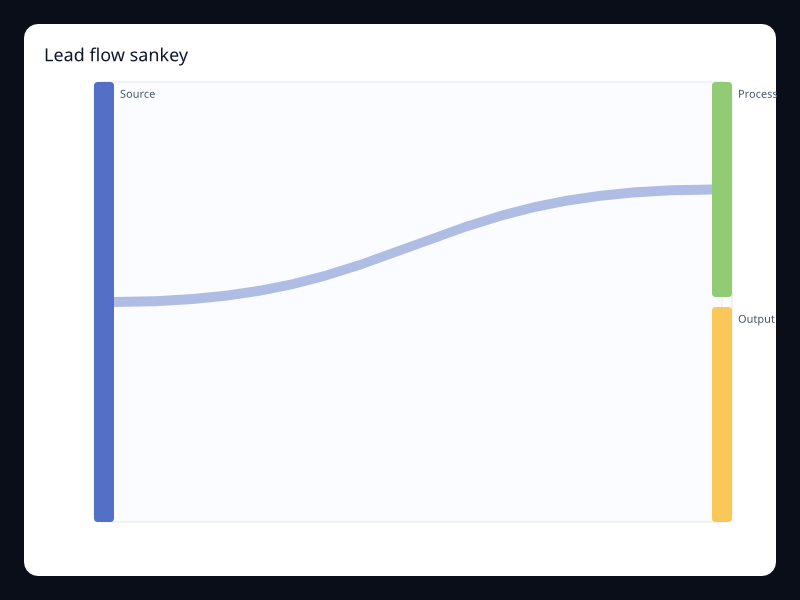

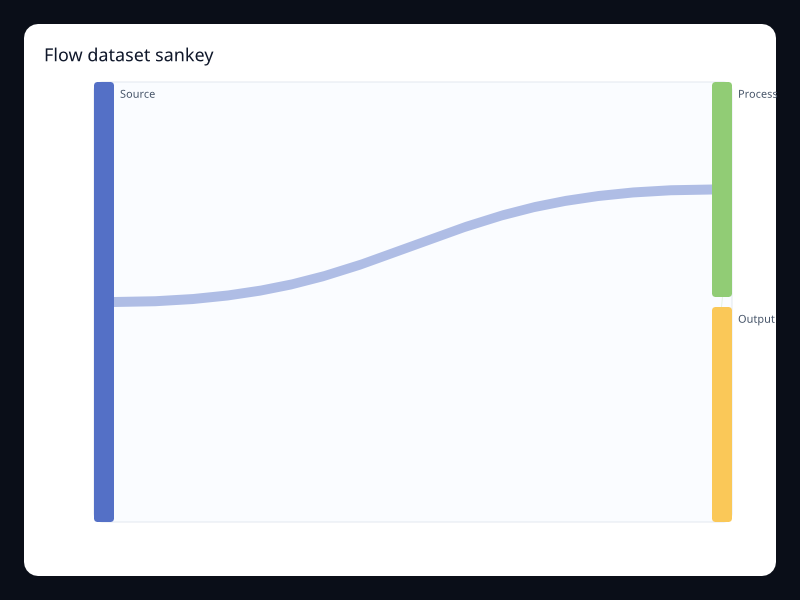

Sankey

Flow between stages using bands with width.

Data

Node list plus weighted edges.

Use when

Use it for energy, revenue, and conversion flows.

sankeyflow

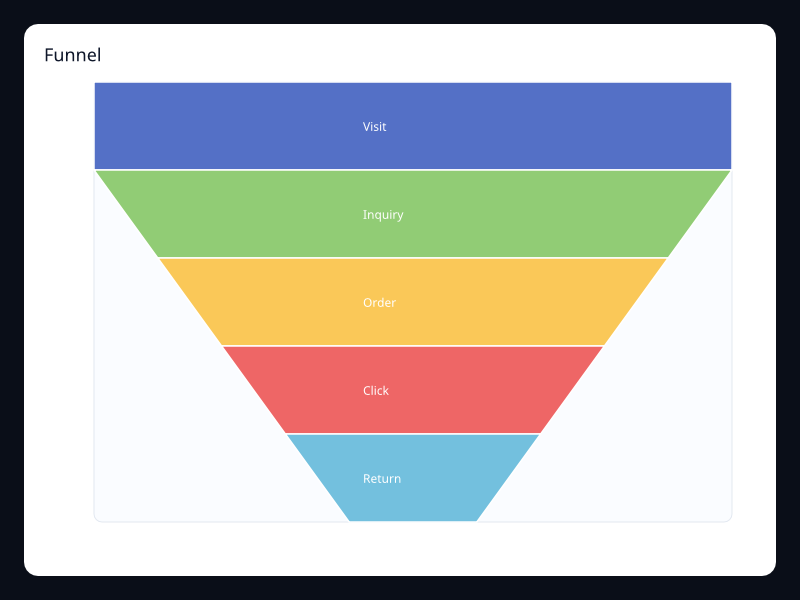

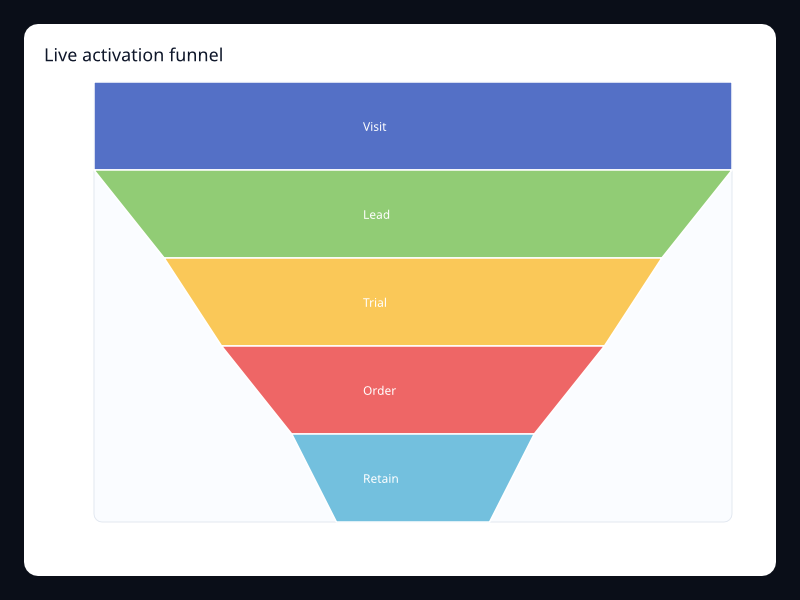

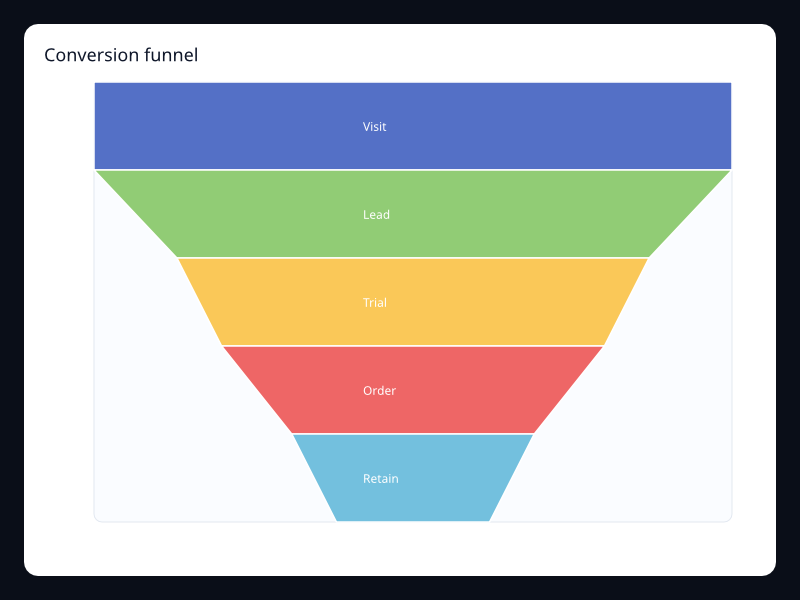

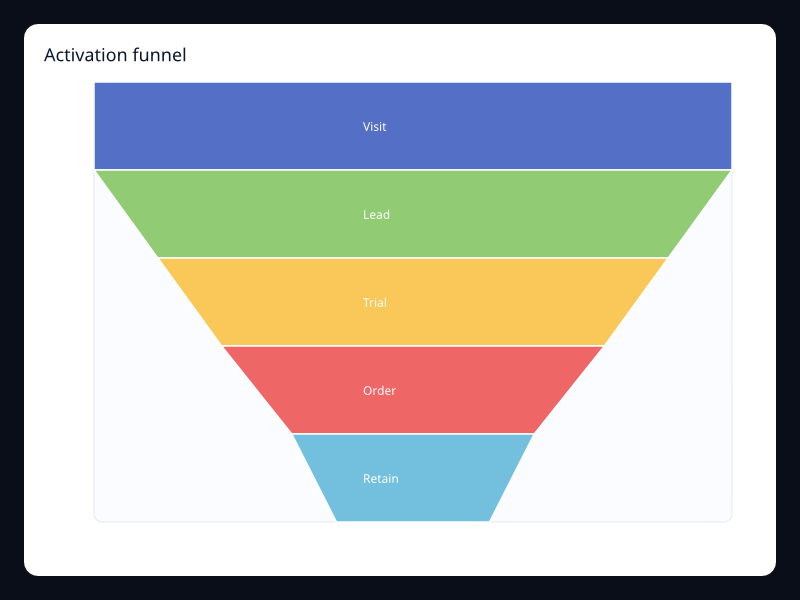

Funnel

Stage values drawn as narrowing bands.

Data

Ordered label/value pairs.

Use when

Use it for conversion stages and pipeline health.

funnelconversion

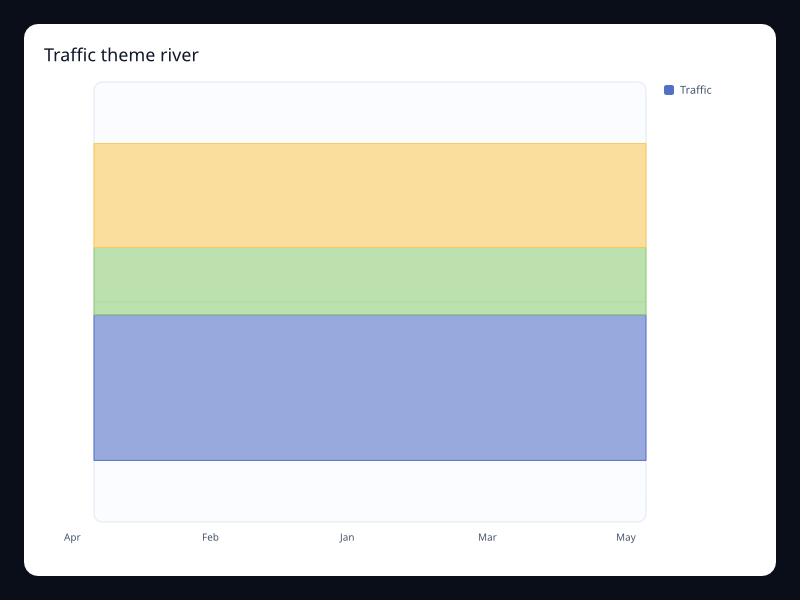

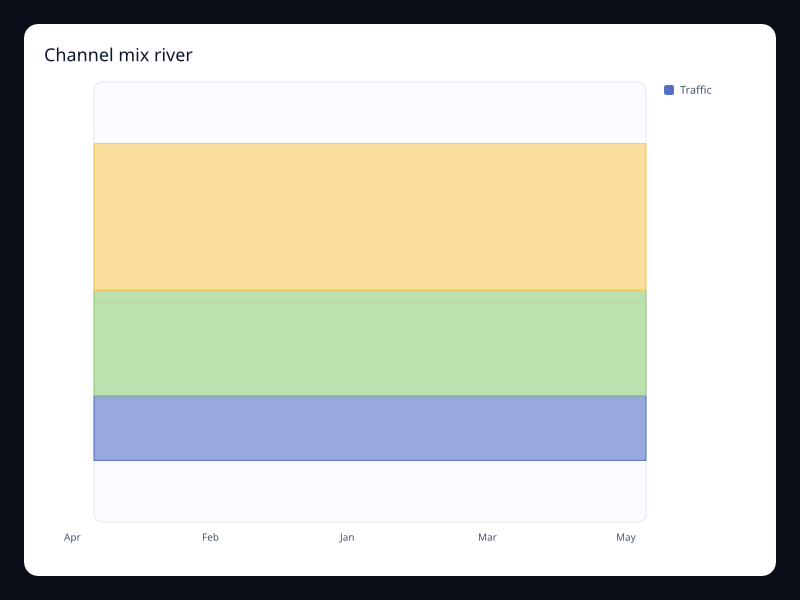

Theme river

Stacked flowing bands over time.

Data

Time, value, and category tuples.

Use when

Use it when composition changes continuously over time.

streamtime

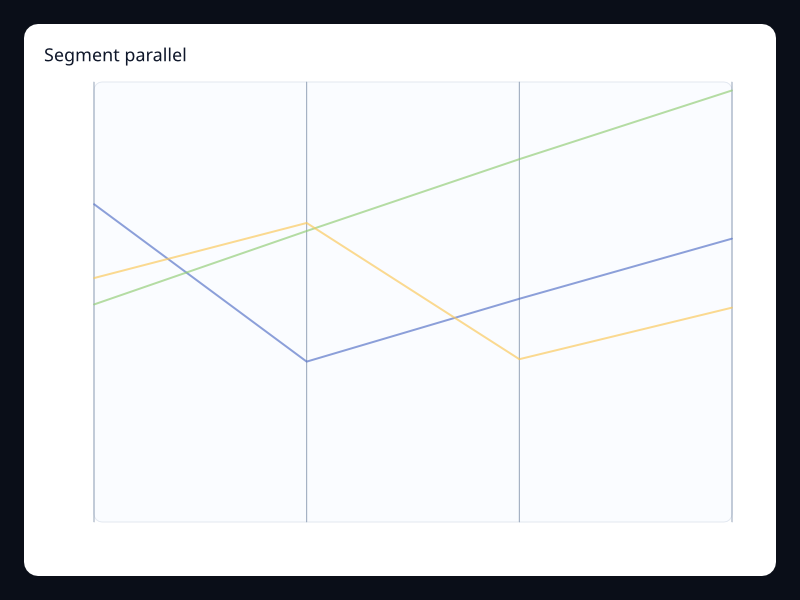

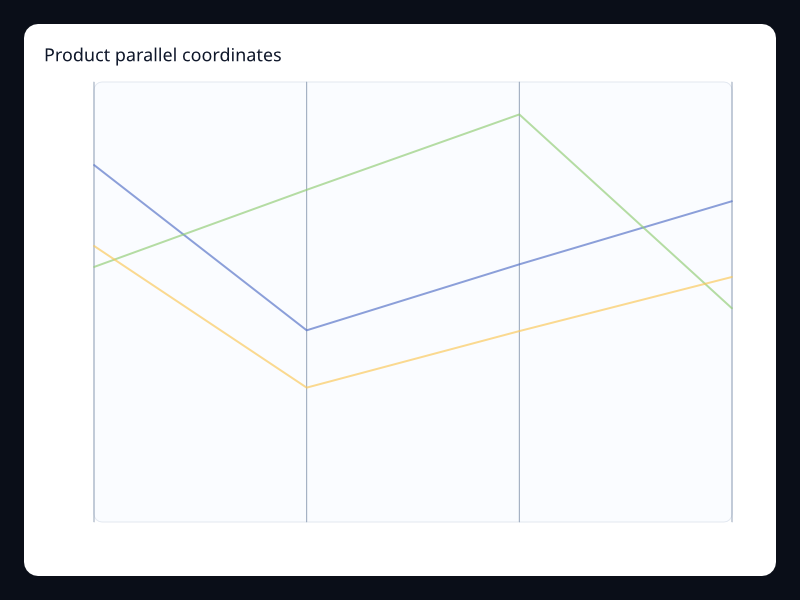

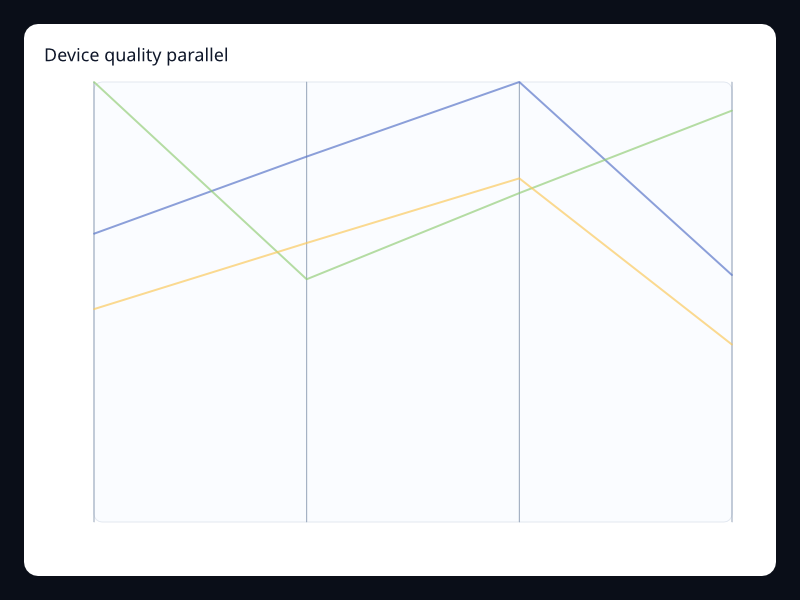

Parallel coordinates

Rows drawn across multiple vertical axes.

Data

Vec<Vec<f32>> with one row per observation.

Use when

Use it for high-dimensional filtering and comparison.

paralleldimensions

Chart family

Geographic and route

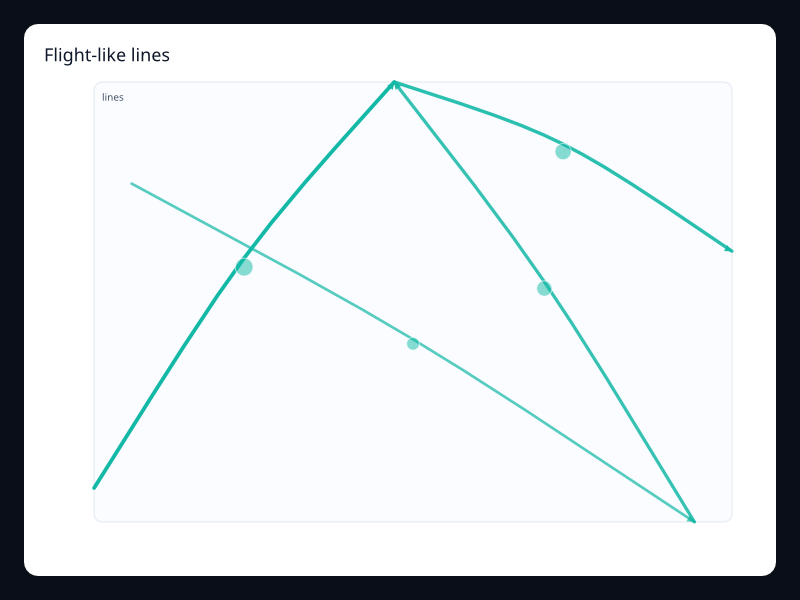

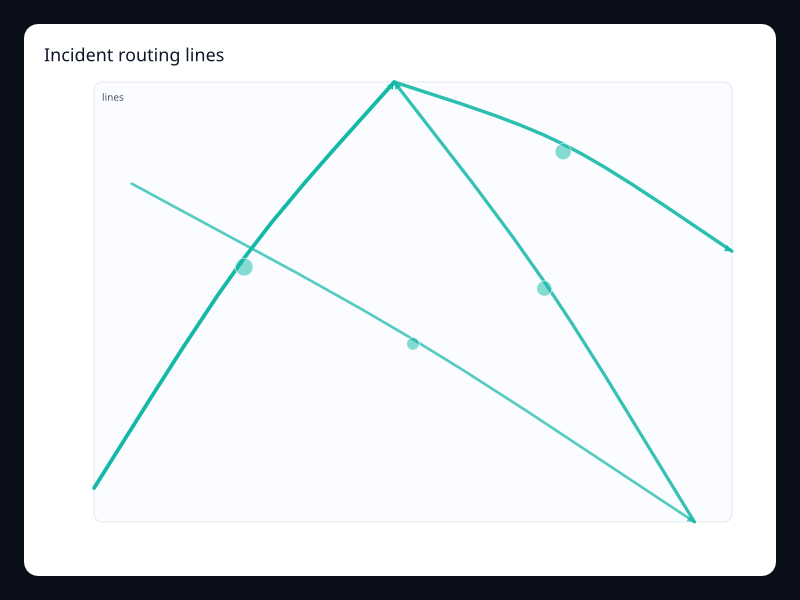

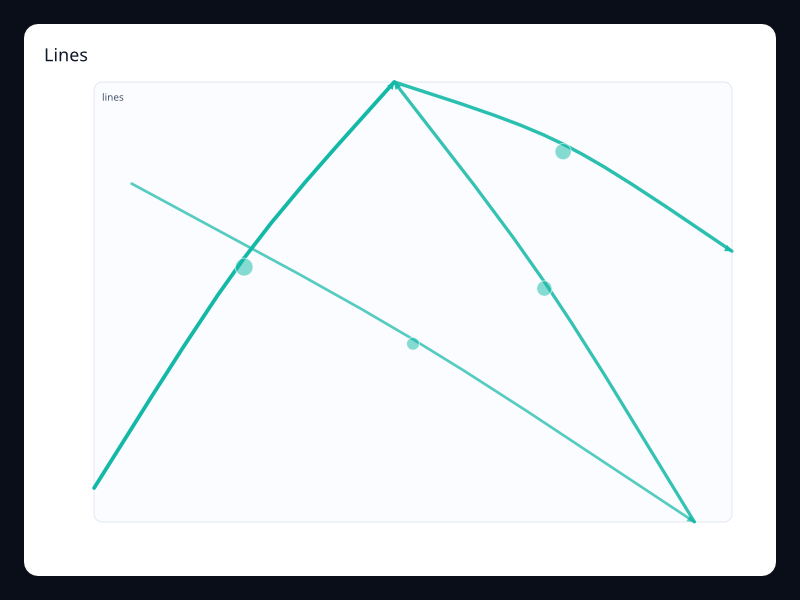

Lines

Curved line segments with direction and optional emphasis.

Data

Line segments with from/to points and a value.

Use when

Use it for routes, movement, and connection flow.

linesroutes

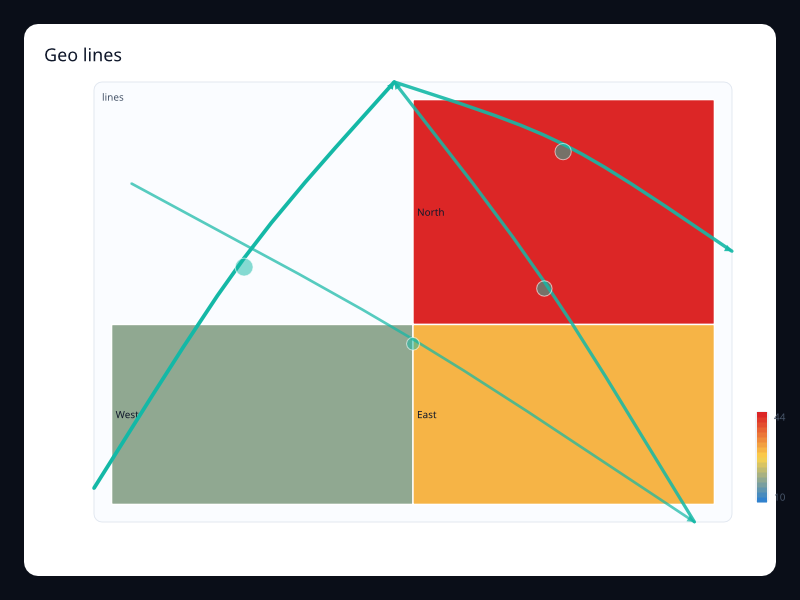

Geo lines

Route lines drawn over a GeoJSON-backed map.

Data

GeoJSON regions plus route line segments.

Use when

Use it when geography and movement need to be read together.

linesgeo

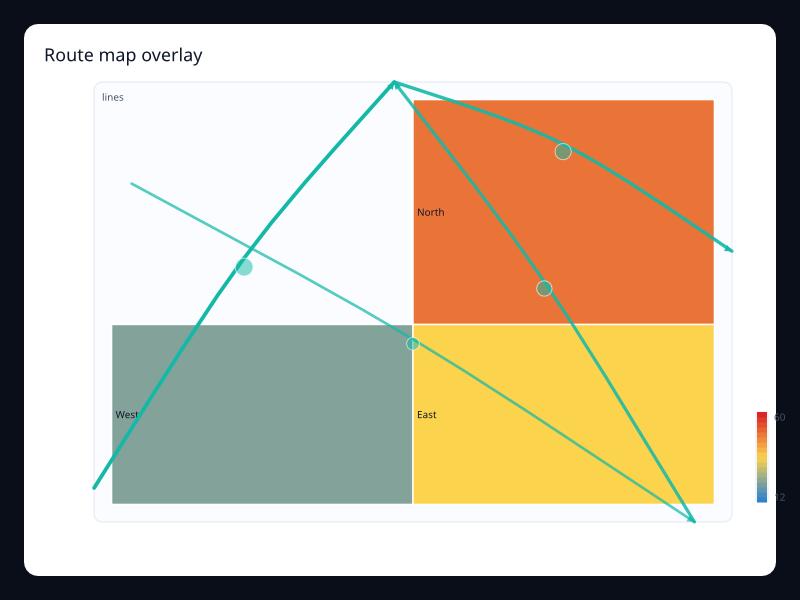

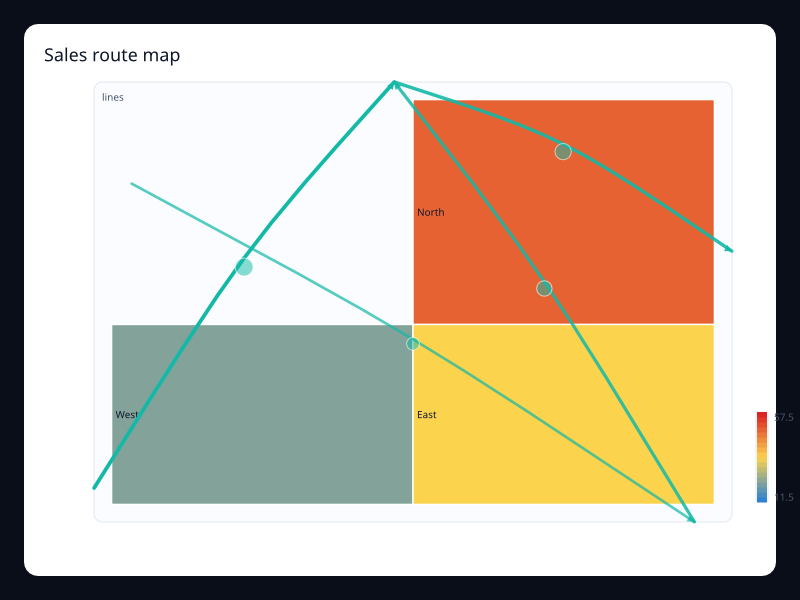

Route map

A map-focused route view with animated-looking line emphasis.

Data

Regions plus route segments.

Use when

Use it for logistics, traffic, or service coverage views.

maproutes

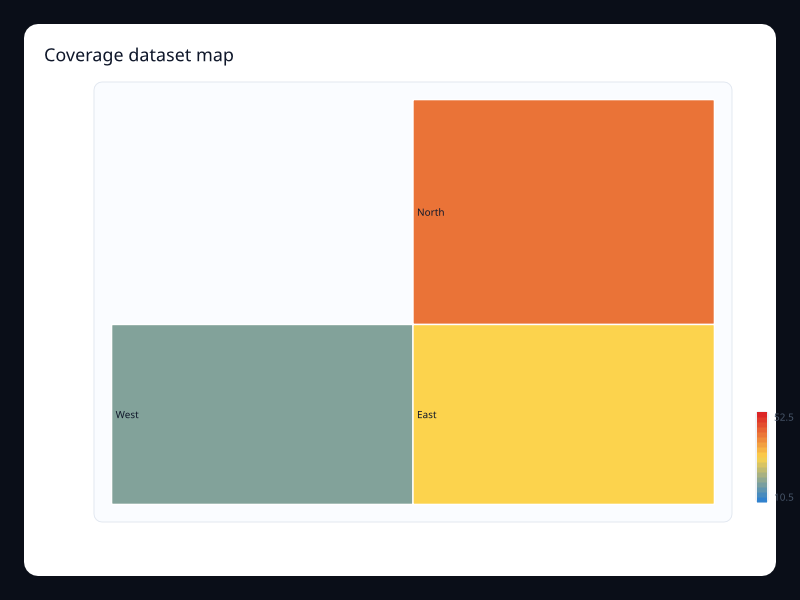

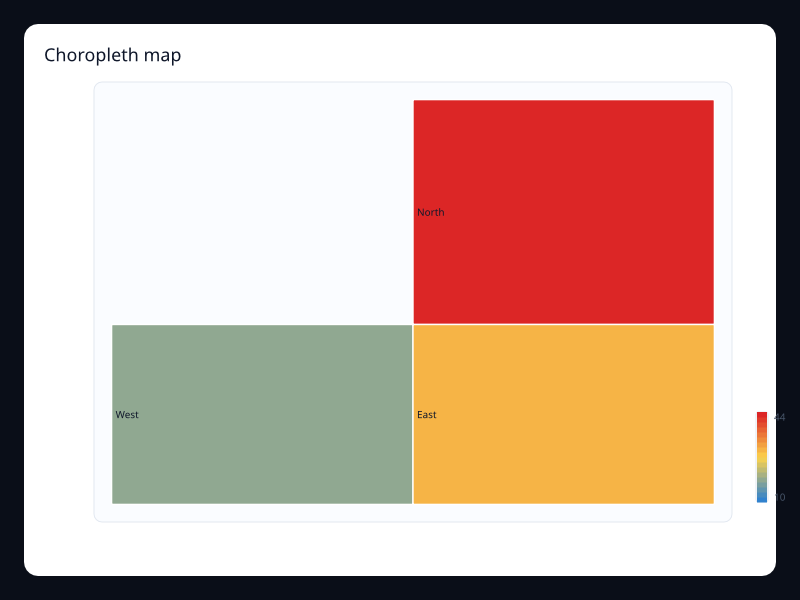

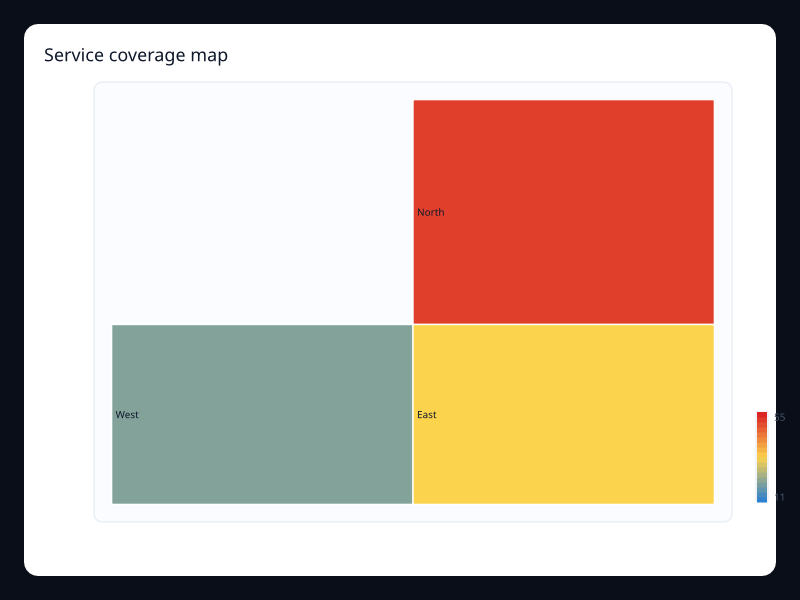

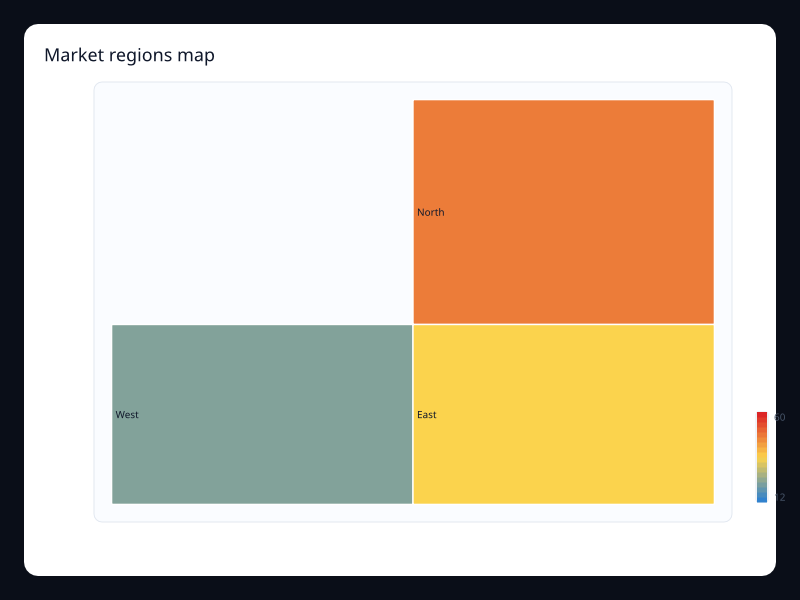

Choropleth map

Regions colored by a numeric value.

Data

Region identifiers plus values and GeoJSON geometry.

Use when

Use it for geography-first comparison.

mapgeo

Chart family

Data pipeline and interaction

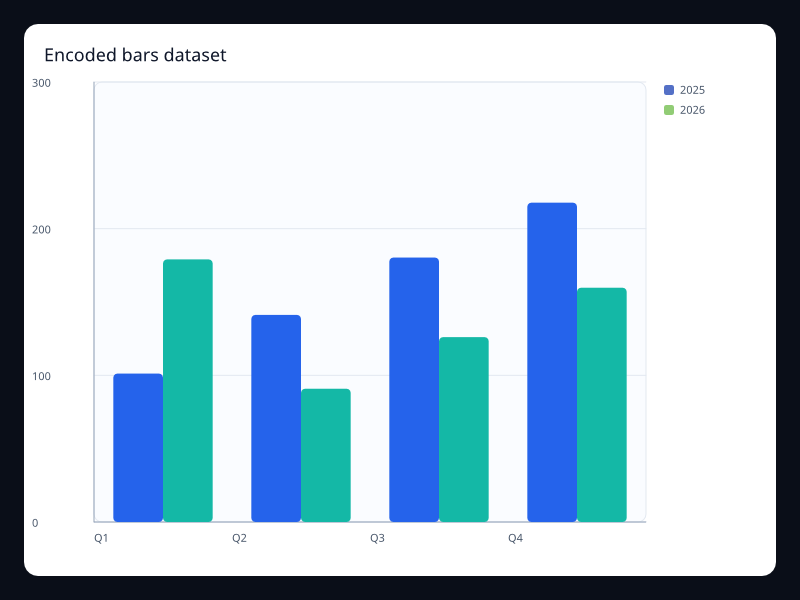

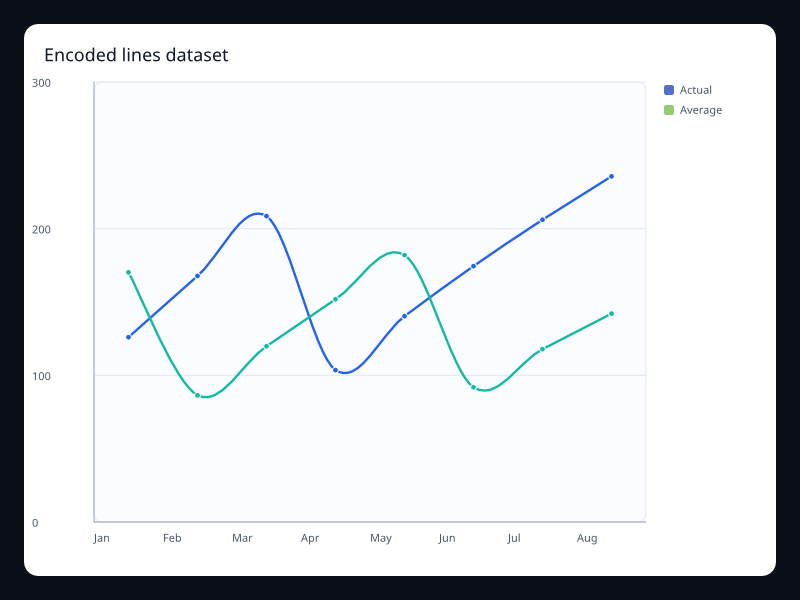

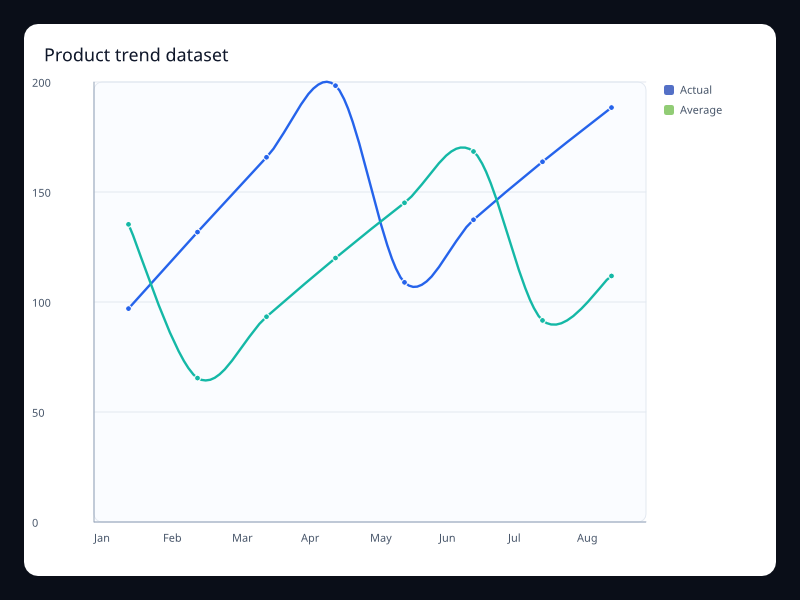

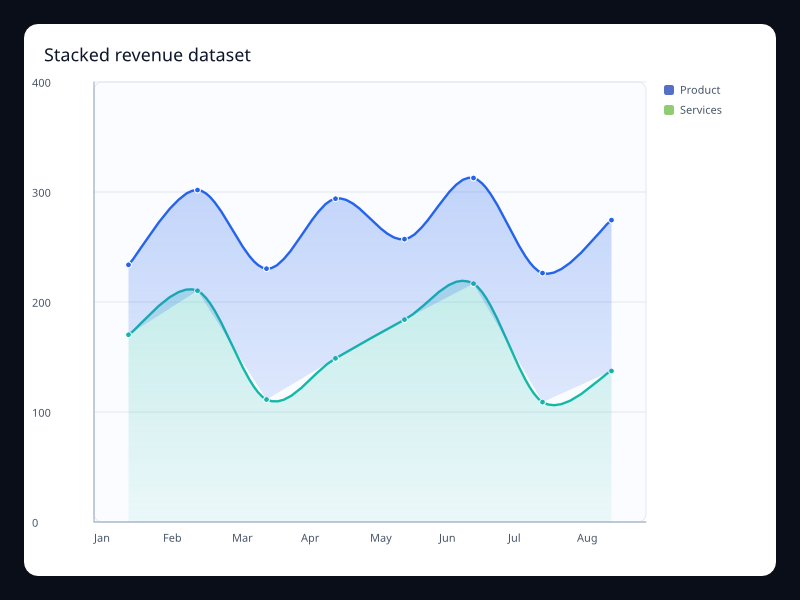

Encoded dataset

Line and bar series bound to named dataset dimensions.

Data

Dataset rows, dimensions, and encode mappings.

Use when

Use it when chart code should name fields instead of copying arrays.

datasetencode

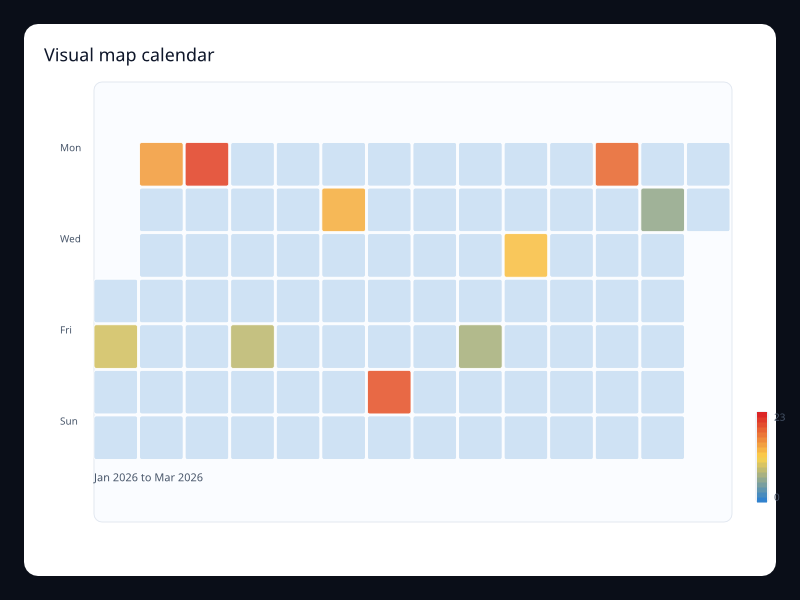

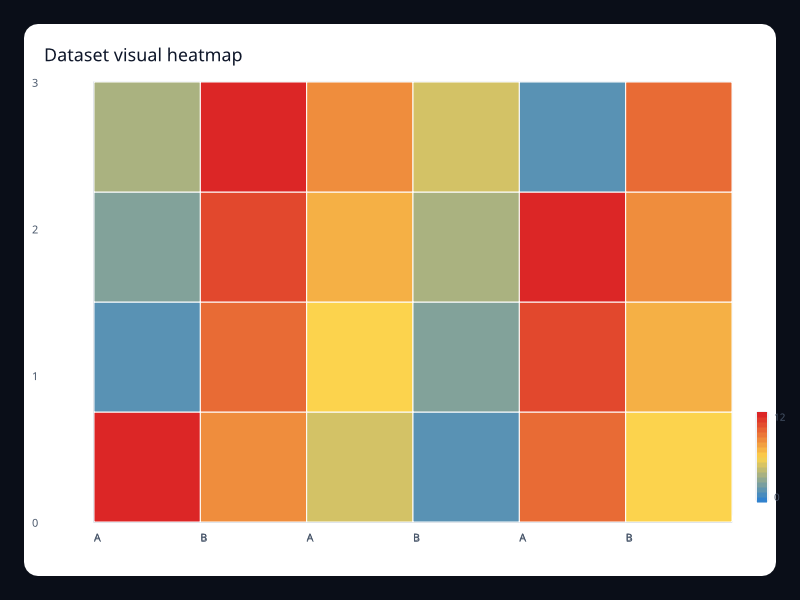

Visual map

Color encodes a numeric range consistently across a chart.

Data

Numeric values plus a color scale.

Use when

Use it for heatmap and scatter intensity.

visual-mapcolor

Word cloud

Words sized by weight inside the chart area.

Data

Label/value pairs where the label is the word and the value controls size.

Use when

Use it for qualitative summaries where exact numeric comparison is less important than emphasis.

wordcloudtext

Chart family

Components and interaction

Mark line and point

Target bands, threshold lines, and named points layered over cartesian data.

Data

MarkArea, MarkLine, and MarkPoint records attached to a chart.

Use when

Use it to explain thresholds, goals, anomalies, or operational bands directly on the chart.

markPointmarkLinemarkArea

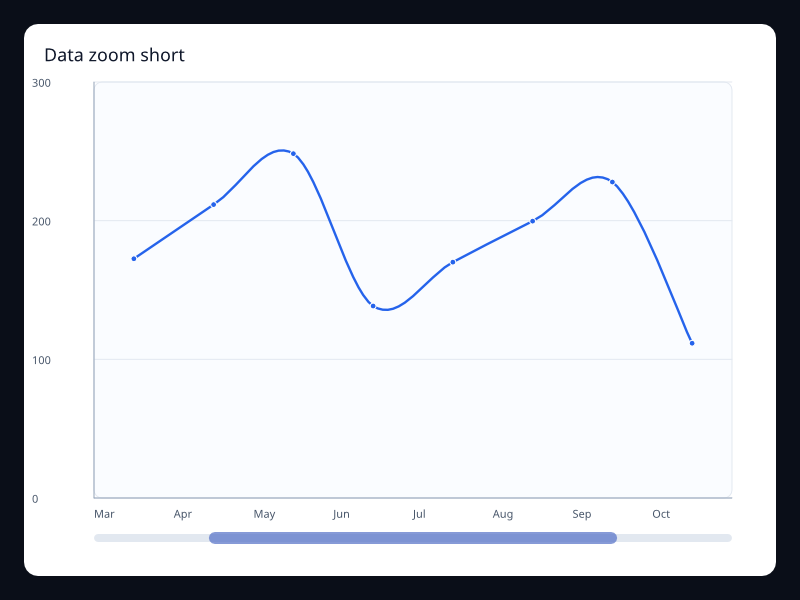

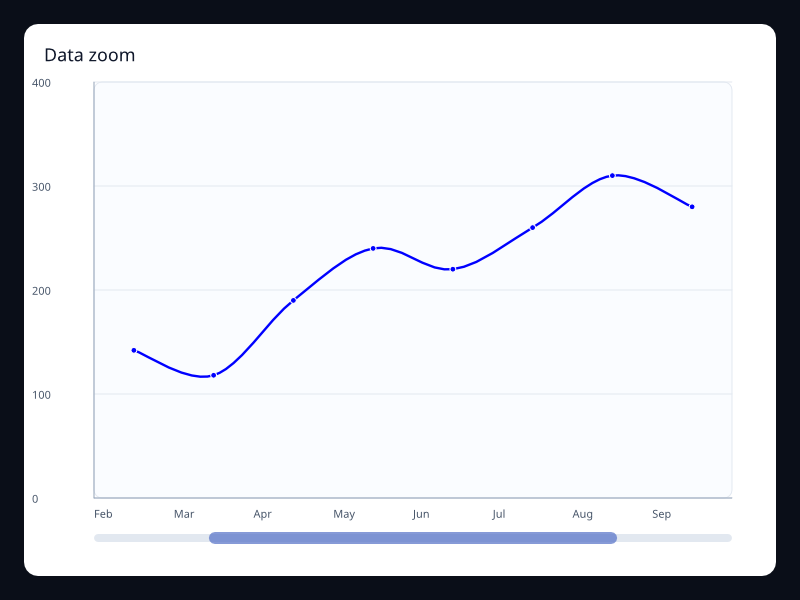

Data zoom

A slider selection that limits the visible portion of ordered data.

Data

DataZoom start and end percentages plus ordered series data.

Use when

Use it when the user needs to inspect a slice of a longer series without leaving context.

dataZoominteraction

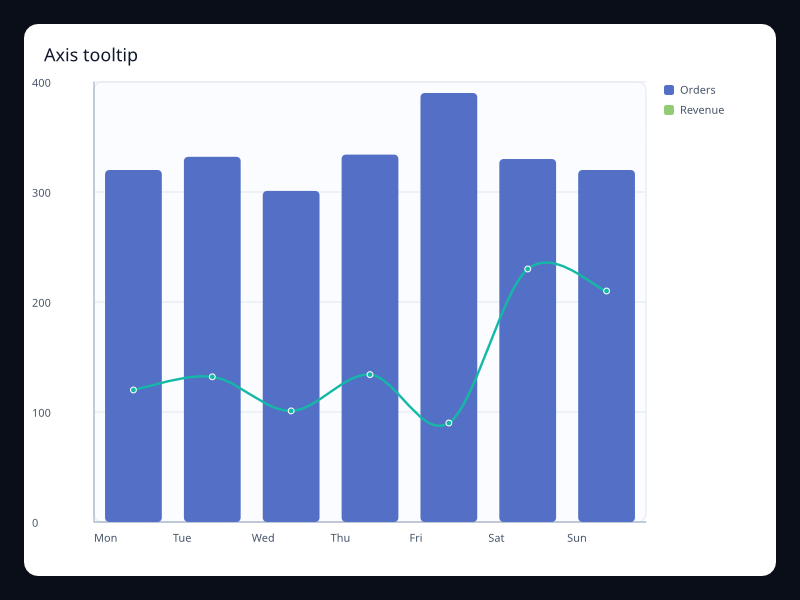

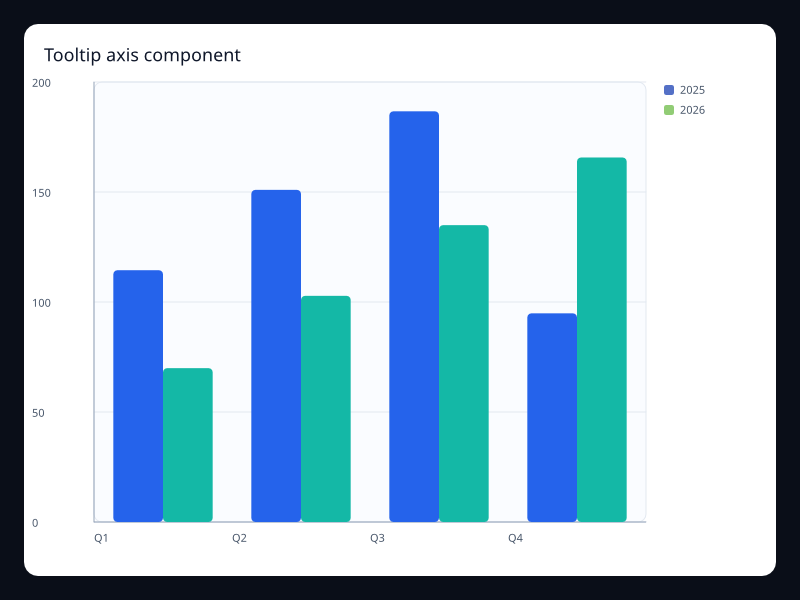

Axis tooltip

Axis-oriented tooltip configuration and hit-tested chart events.

Data

Tooltip::axis_trigger plus series data under shared axes.

Use when

Use it when several series share one x position and the user needs exact values.

tooltipaxisPointer

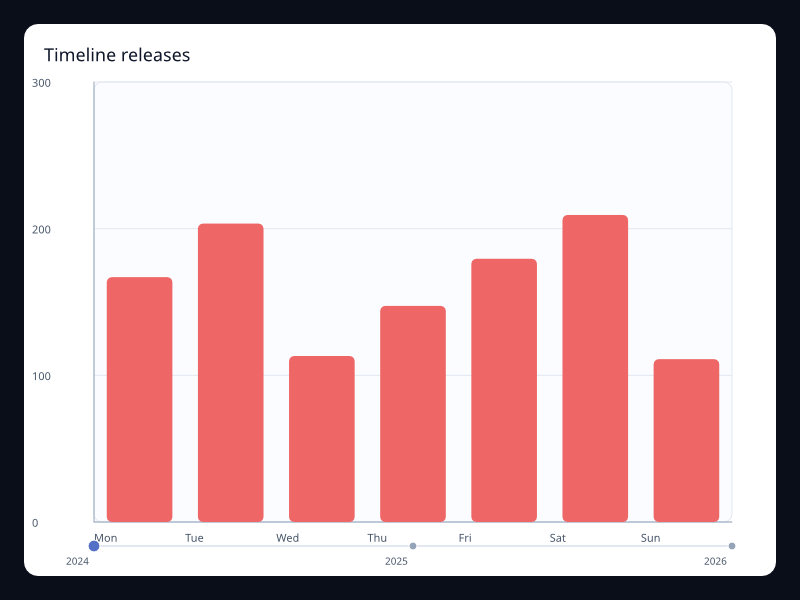

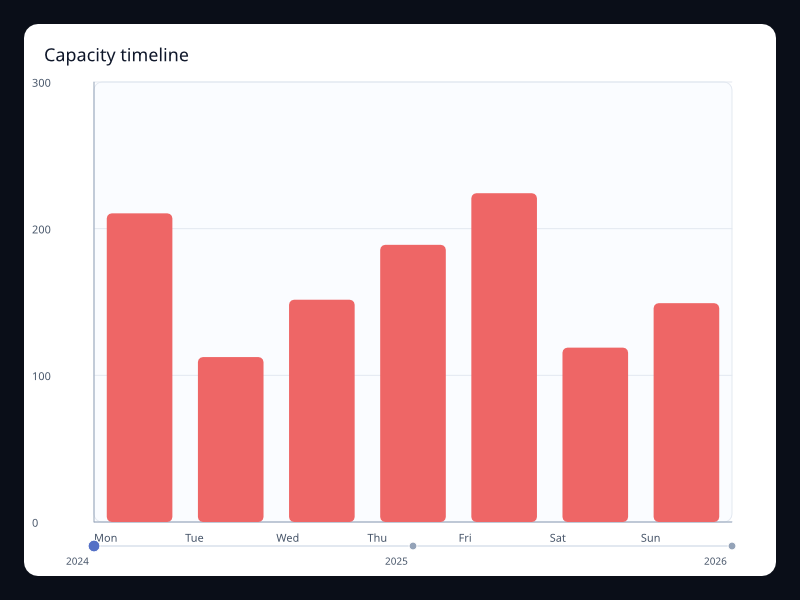

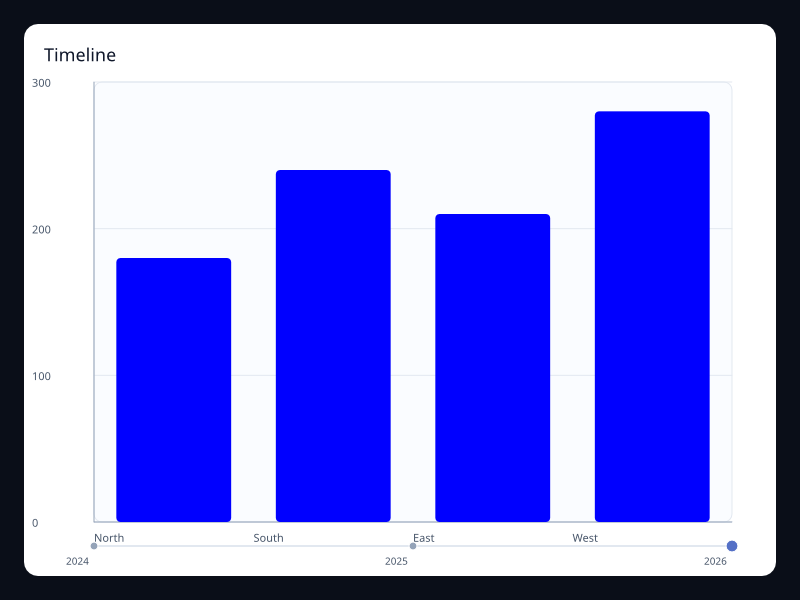

Timeline

A timeline control rendered with active state and labeled stops.

Data

ChartTimeline labels and current index.

Use when

Use it to show snapshots, scenario years, deployment phases, or step-based playback.

timelinecomponent

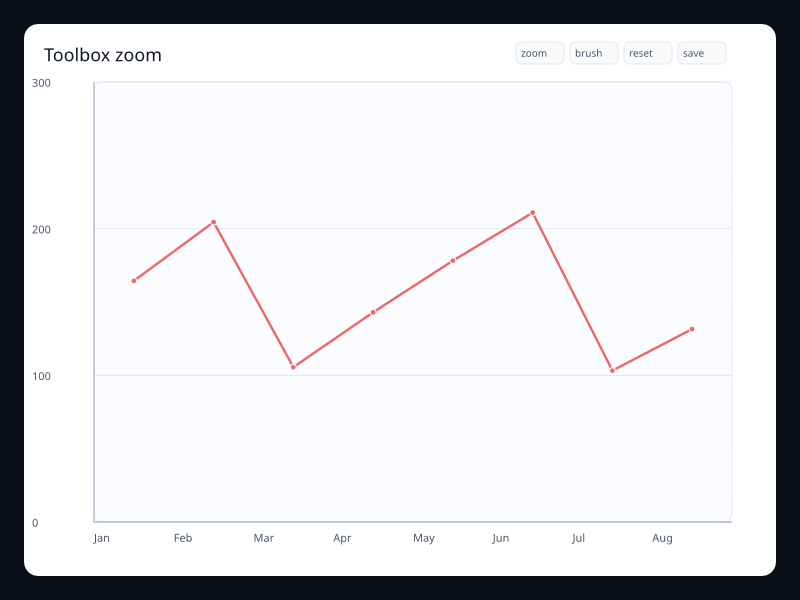

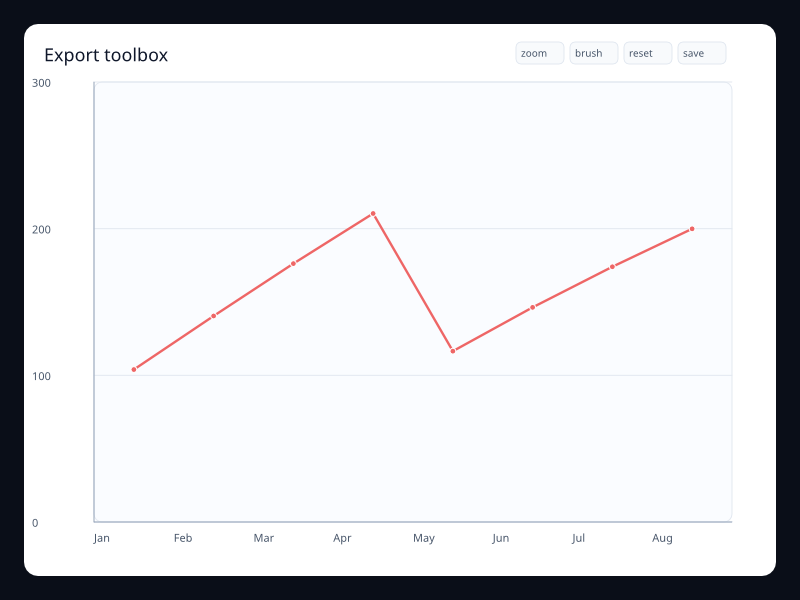

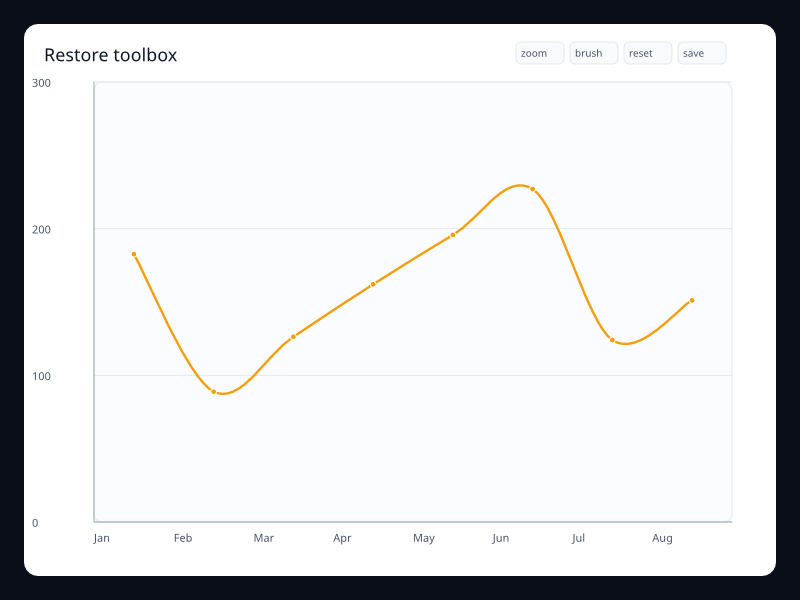

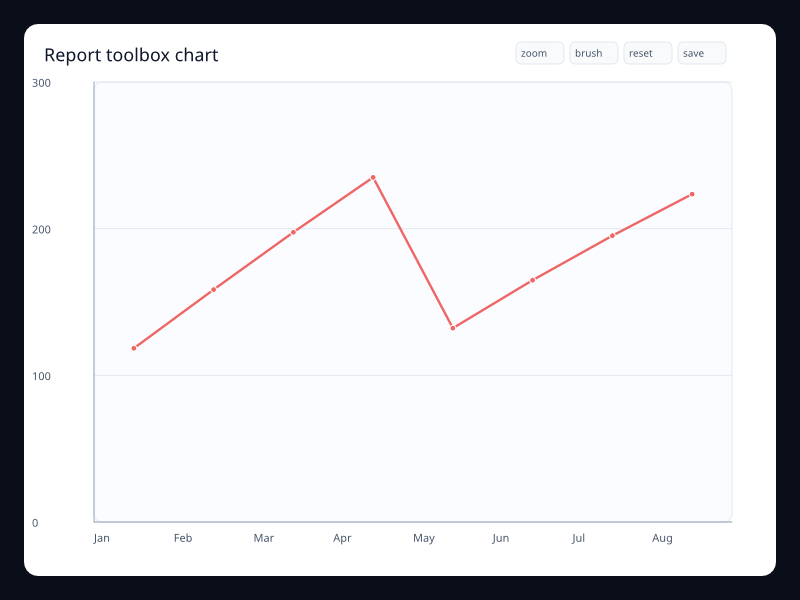

Toolbox actions

Chart-level tool buttons for restore, save, zoom, and brush actions.

Data

ChartInteraction toolbox action list.

Use when

Use it when a chart has explicit utility operations that should remain close to the data.

toolboxactions

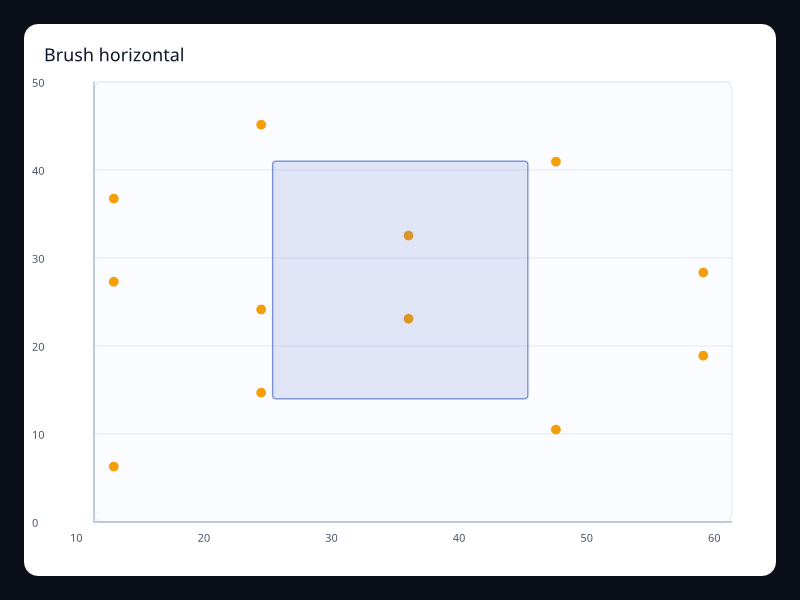

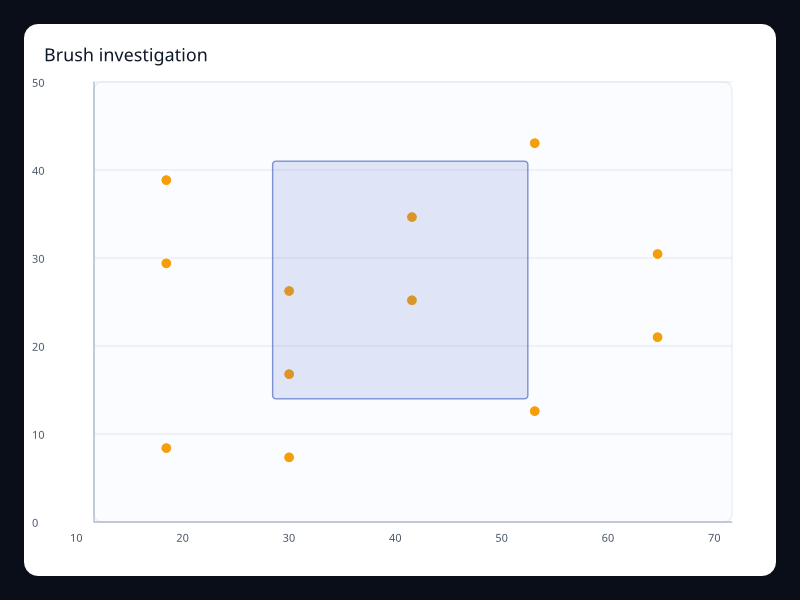

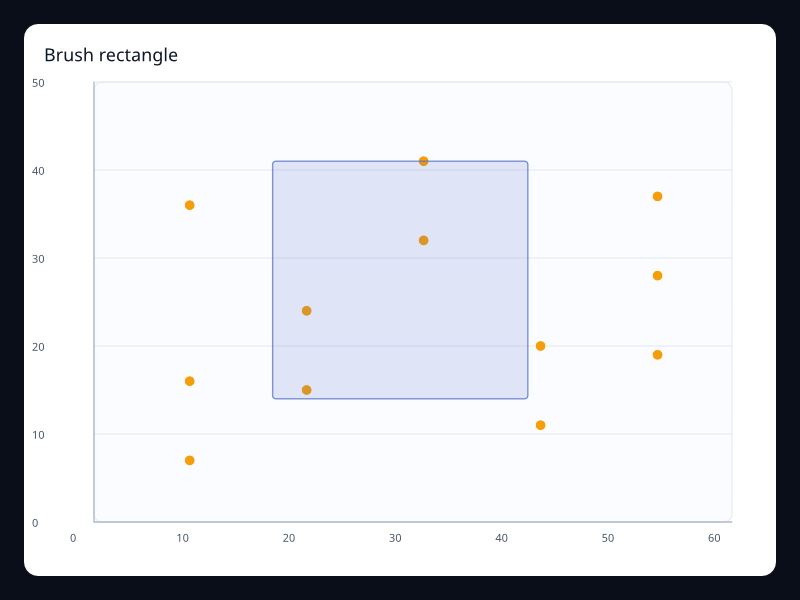

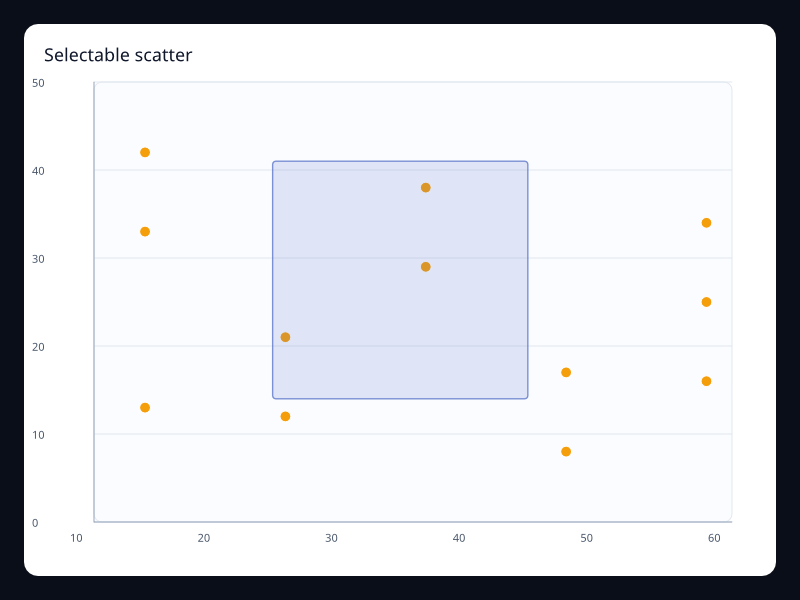

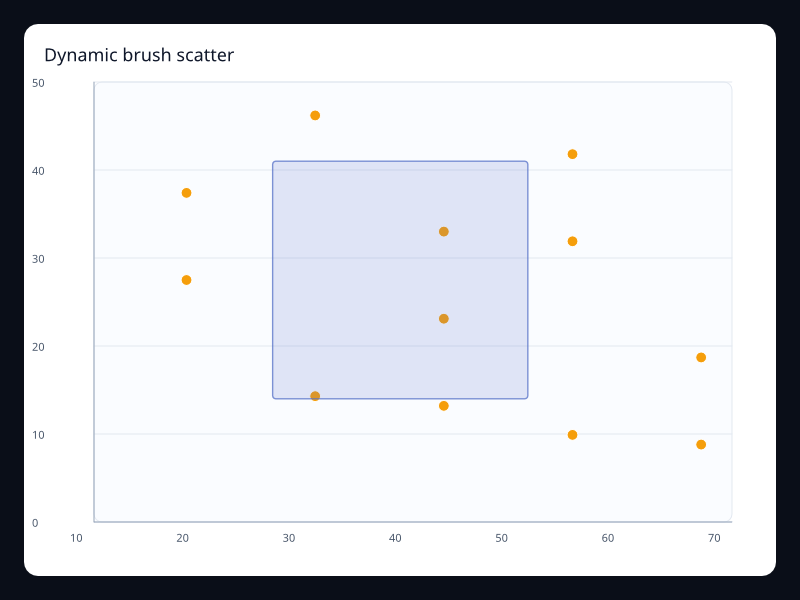

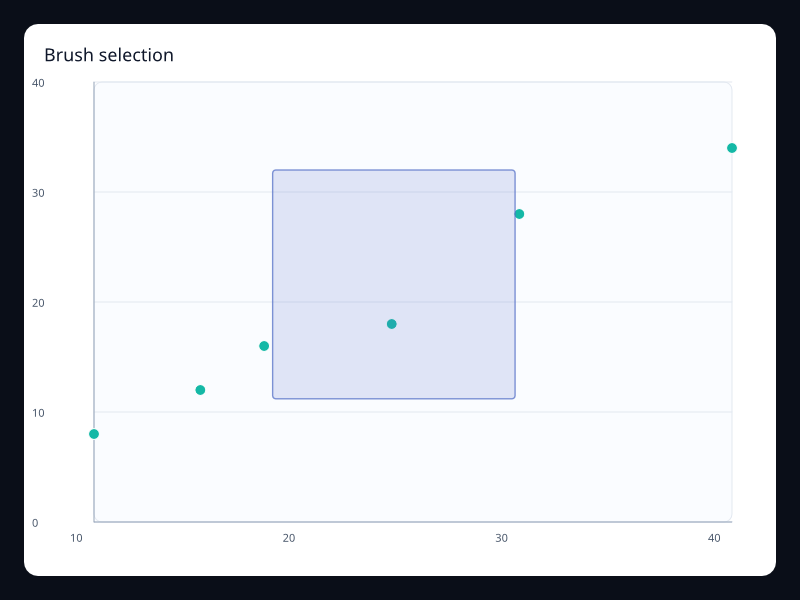

Brush selection

A visible brush region over a scatter plot.

Data

ChartBrush configuration plus hit-testable series data.

Use when

Use it when users need to select or inspect a region of points.

brushselection

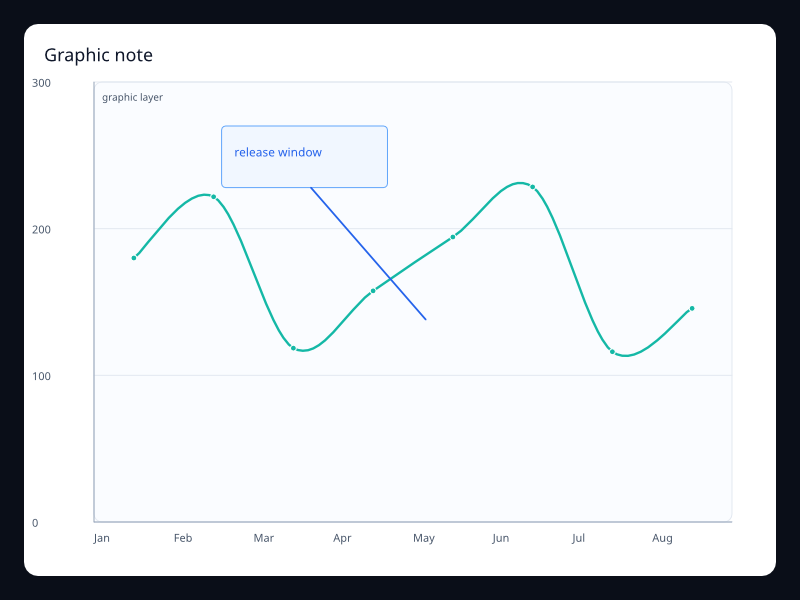

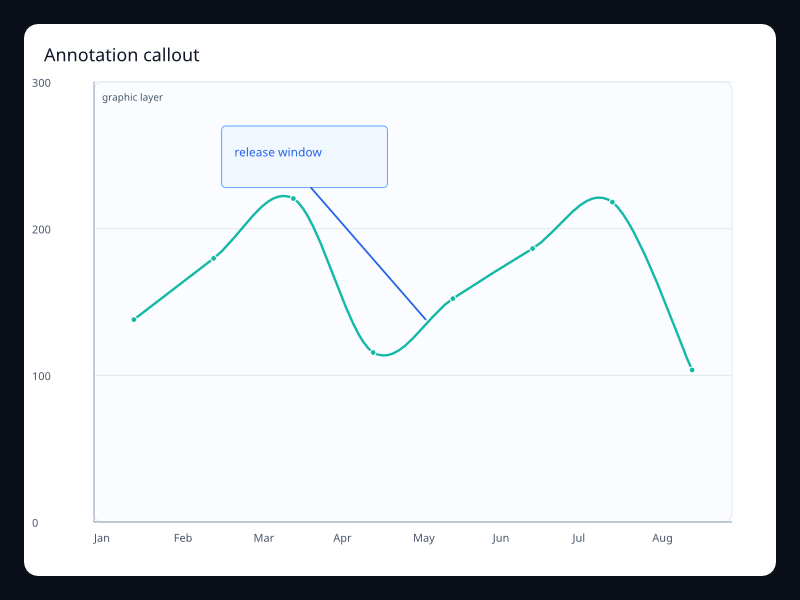

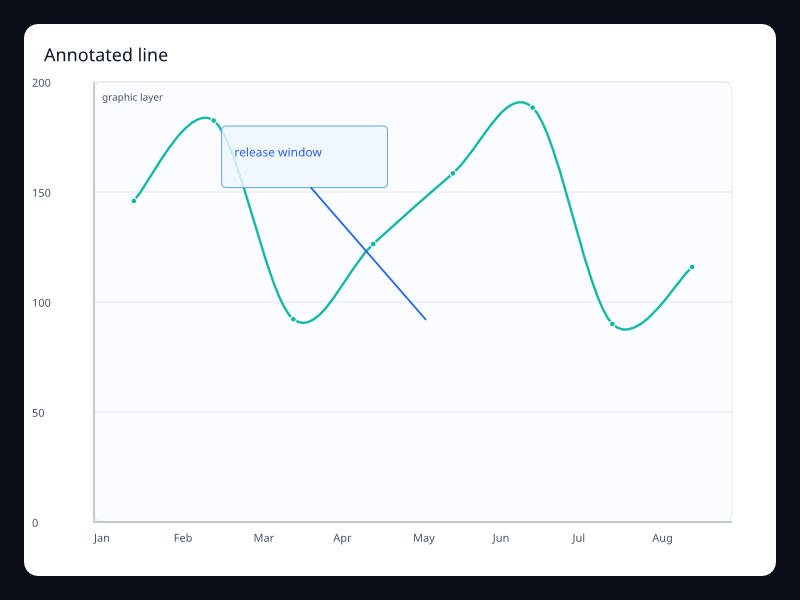

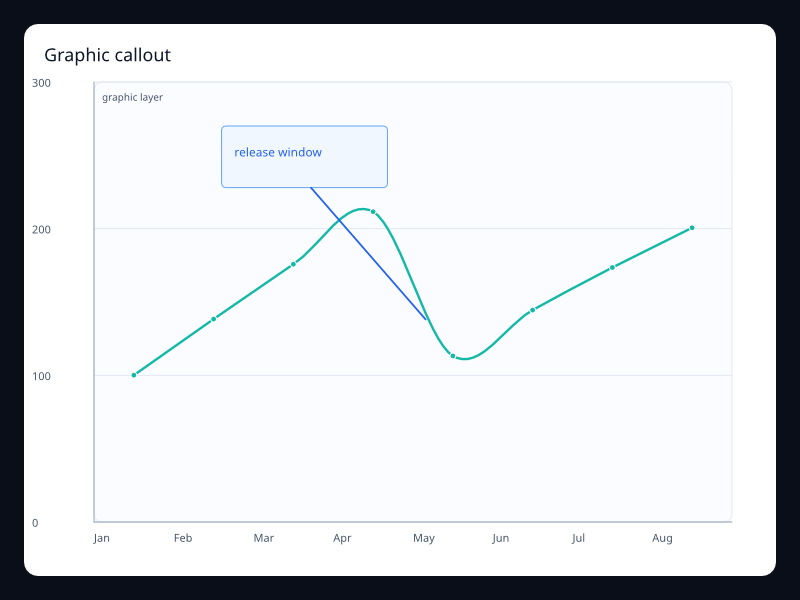

Graphic overlay

Typed graphic shapes and text layered over the chart plot area.

Data

ChartGraphic rect, text, line, or circle records.

Use when

Use it for callouts, annotations, labels, and lightweight explanatory overlays.

graphicannotation

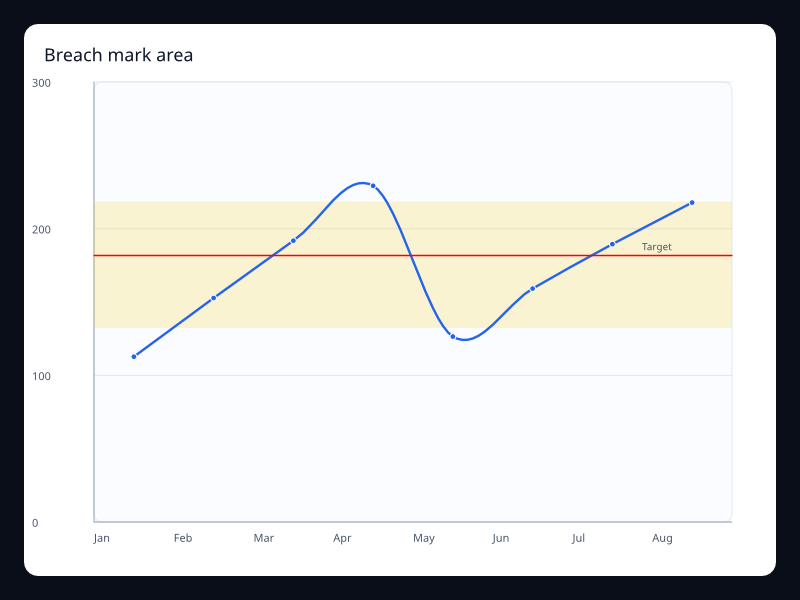

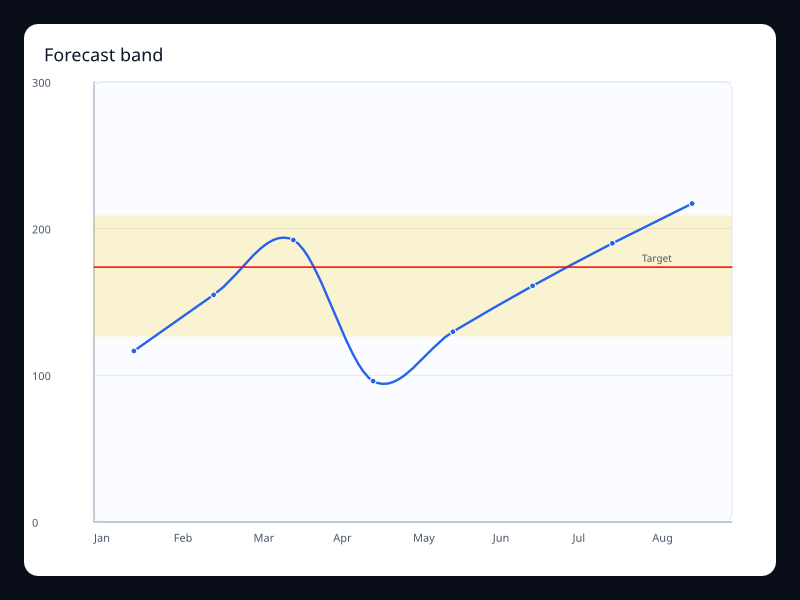

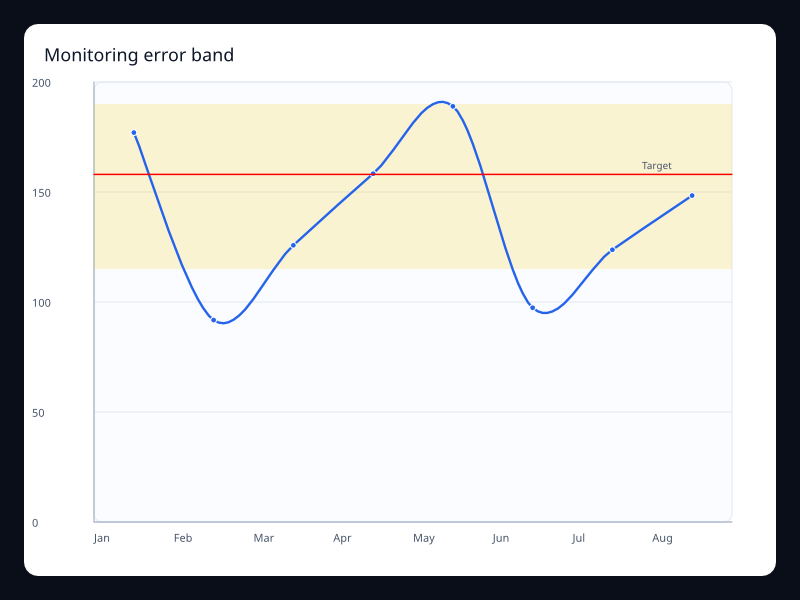

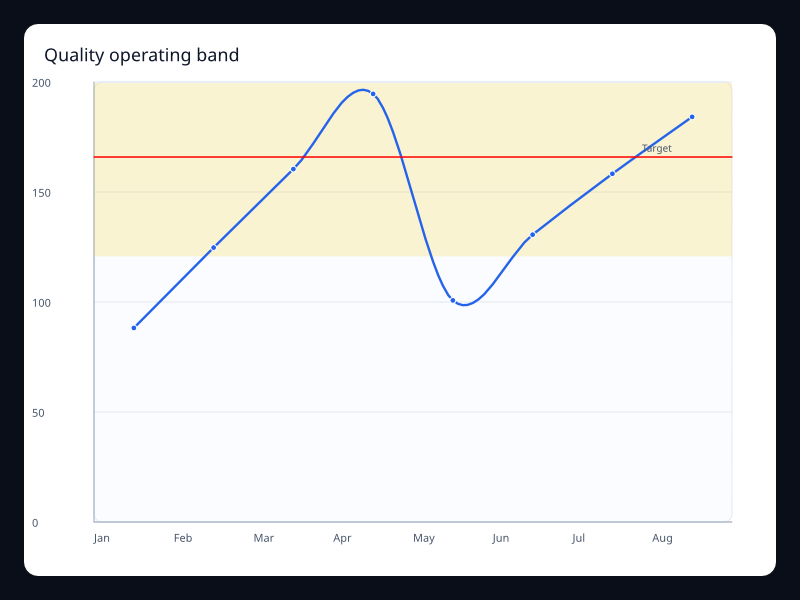

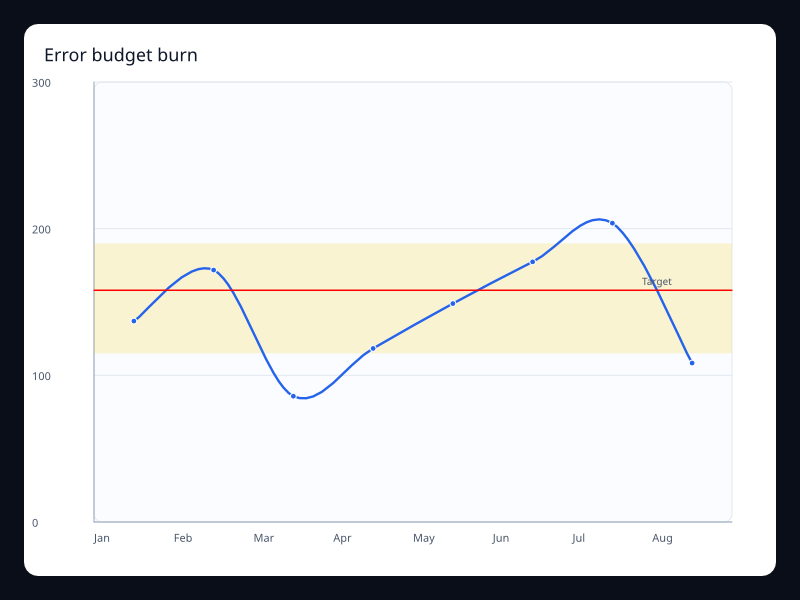

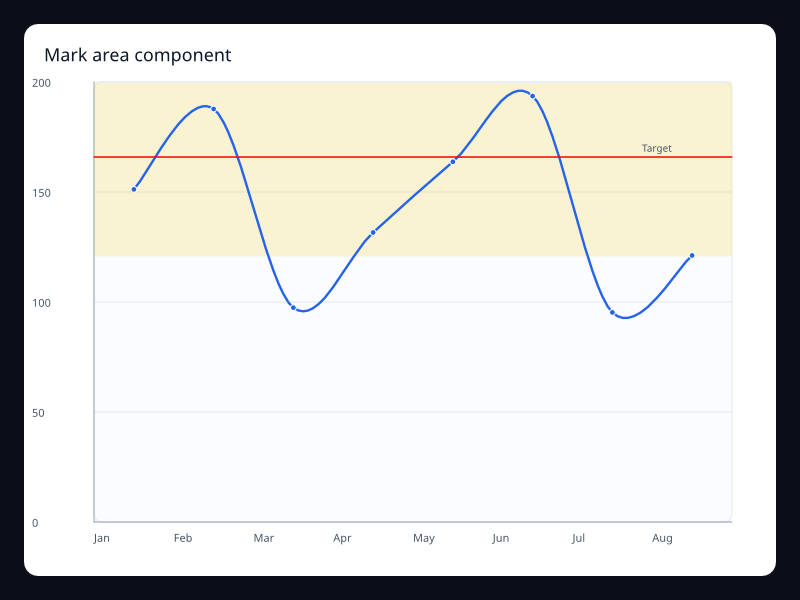

Mark area component

Line chart with a highlighted range.

Data

MarkArea plus LineSeries.

Use when

Use it for safe operating zones.

markAreacomponent

Mark line component

Line chart with target threshold line.

Data

MarkLine plus LineSeries.

Use when

Use it for goals and alert thresholds.

markLinecomponent

Mark point component

Line chart with named event points.

Data

MarkPoint plus LineSeries.

Use when

Use it for incidents and milestones.

markPointcomponent

Data zoom short

Small data zoom window over ordered data.

Data

DataZoom plus LineSeries.

Use when

Use it for local inspection of long series.

dataZoomcomponent

Data zoom long

Wide data zoom window over ordered data.

Data

DataZoom plus LineSeries.

Use when

Use it for dashboards with focus ranges.

dataZoomcomponent

Tooltip axis component

Axis tooltip over shared bar and line data.

Data

Tooltip plus ChartInteraction.

Use when

Use it for exact values across series.

tooltipcomponent

Tooltip item component

Item tooltip over single series data.

Data

Tooltip item trigger.

Use when

Use it for exact item readout.

tooltipitem

Toolbox zoom

Toolbox actions rendered near the chart.

Data

ChartInteraction toolbox actions.

Use when

Use it for chart utility operations.

toolboxcomponent

Toolbox full

Full toolbox action set.

Data

ChartInteraction toolbox actions.

Use when

Use it when a chart supports several operations.

toolboxactions

Brush rectangle

Rectangular brush preview over a scatter plot.

Data

ChartBrush plus ScatterSeries.

Use when

Use it for region selection.

brushselection

Brush horizontal

Horizontal brush preview over scatter data.

Data

ChartBrush plus ScatterSeries.

Use when

Use it for x-range selection.

brushselection

Graphic callout

Graphic annotation overlay on a line chart.

Data

ChartGraphic plus LineSeries.

Use when

Use it to explain a change in context.

graphicannotation

Graphic band

Graphic highlight and label overlay.

Data

ChartGraphic plus LineSeries.

Use when

Use it for release windows and custom callouts.

graphicannotation

Visual map component

Visible color scale for heatmap values.

Data

VisualMap plus HeatmapSeries.

Use when

Use it where color represents a numeric value.

visualMapcomponent

Timeline years

Timeline component selecting a year.

Data

ChartTimeline plus series.

Use when

Use it for step-based snapshots.

timelinecomponent

Timeline releases

Timeline component for release phases.

Data

ChartTimeline plus series.

Use when

Use it for phase or scenario playback.

timelinerelease

Chart family

Coordinates

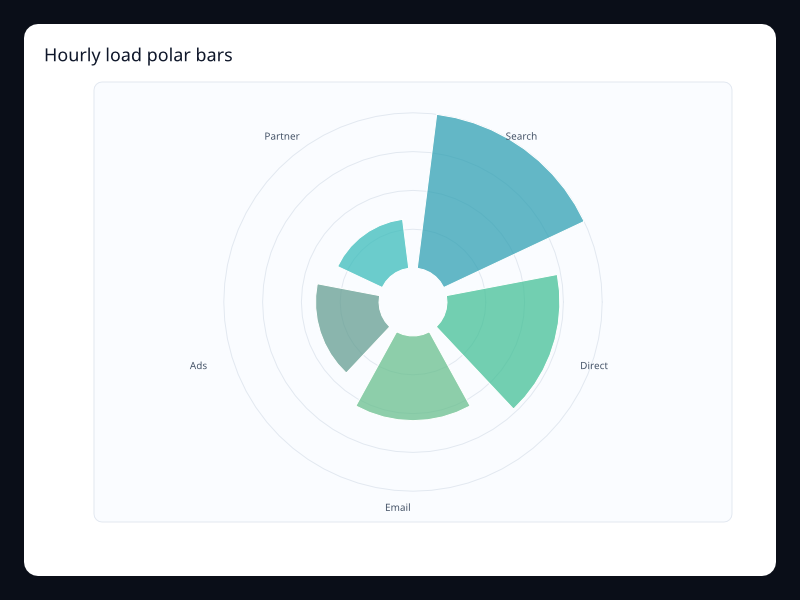

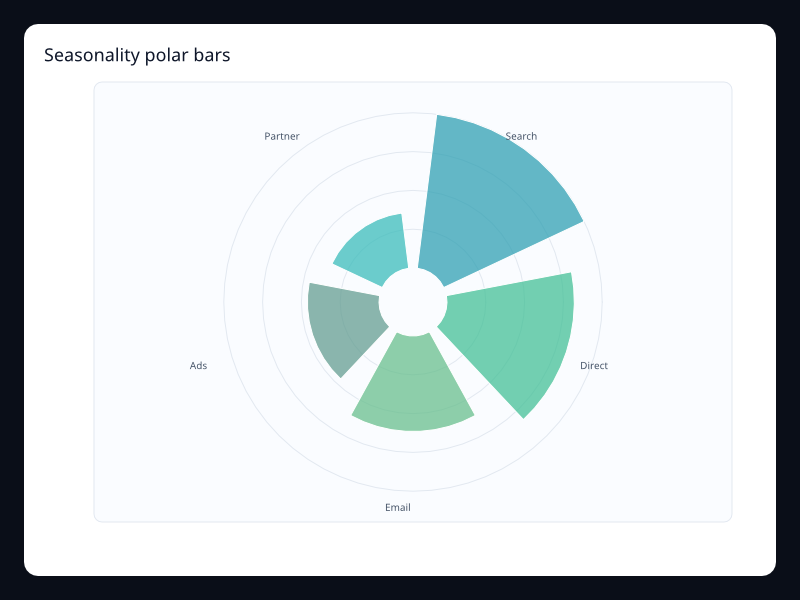

Polar bar

Radial bars placed around a polar coordinate system.

Data

Label/value pairs rendered as radial bar segments.

Use when

Use it when cyclical comparison benefits from circular layout.

polarbar

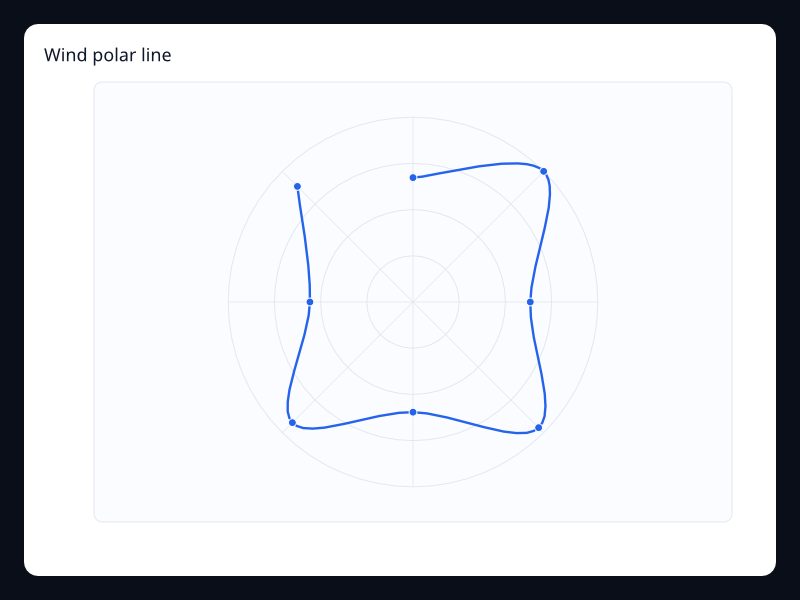

Polar line

A line series mapped by angle and radius.

Data

Vec<(angle_degrees, radius)>.

Use when

Use it for wind, direction, periodic signals, and angular measurements.

polarline

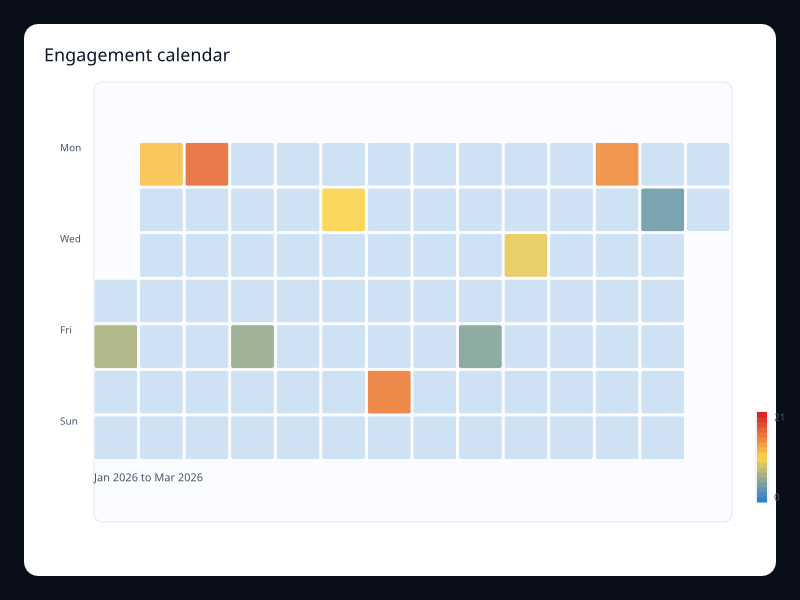

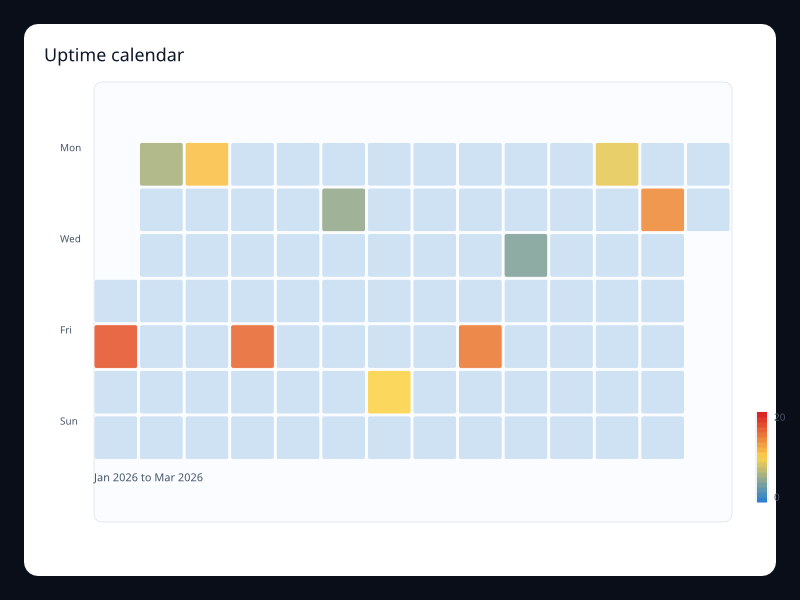

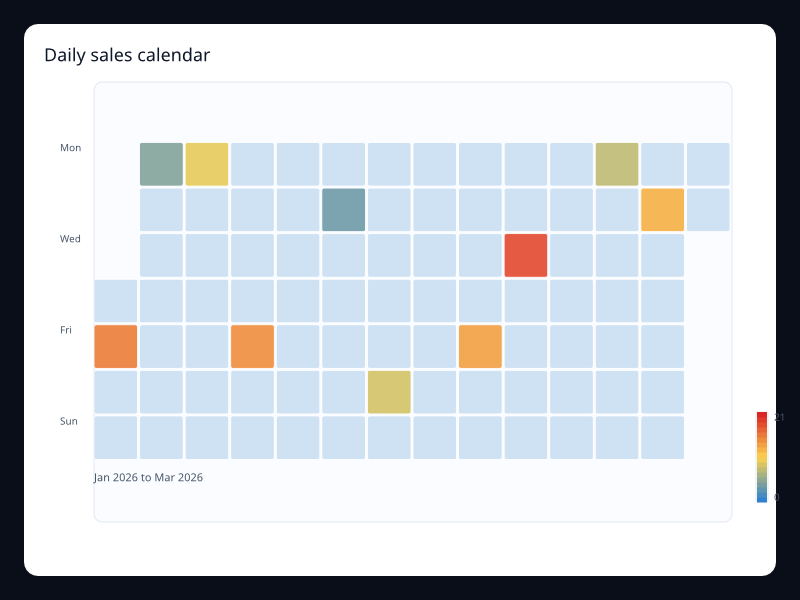

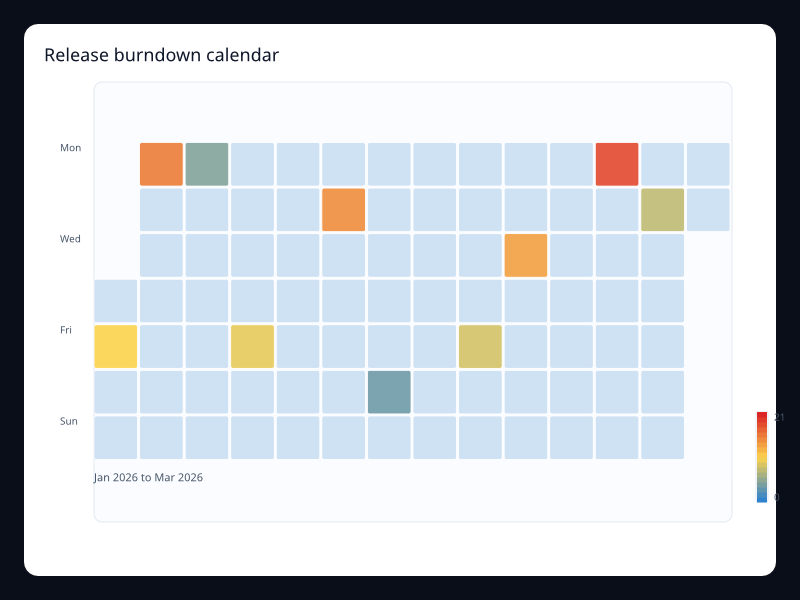

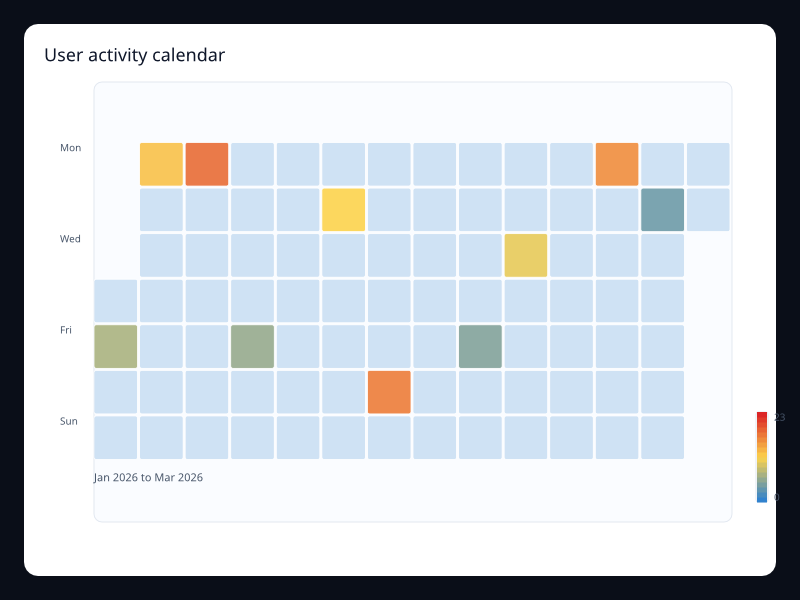

Calendar heatmap

Date values placed into a week-by-day calendar grid.

Data

Date/value pairs using YYYY-MM-DD dates.

Use when

Use it for contribution, activity, incident, and habit patterns over weeks or months.

calendarheatmap

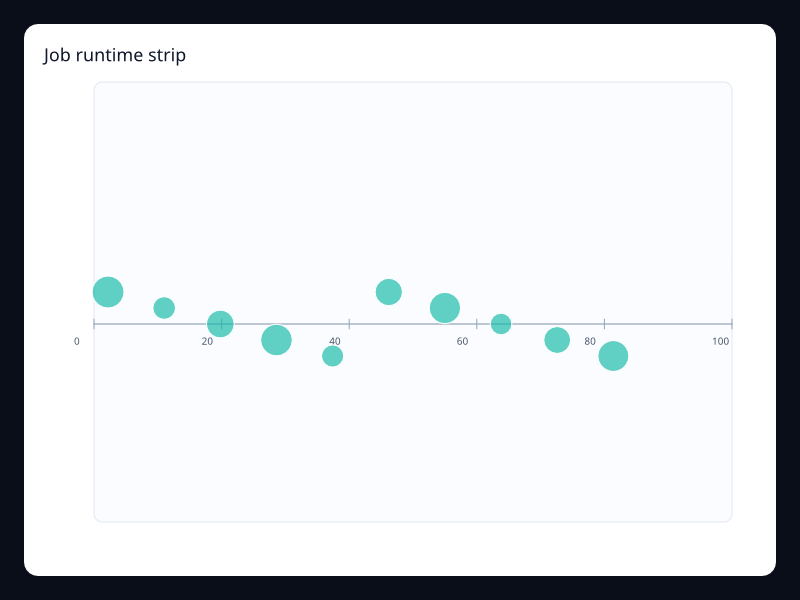

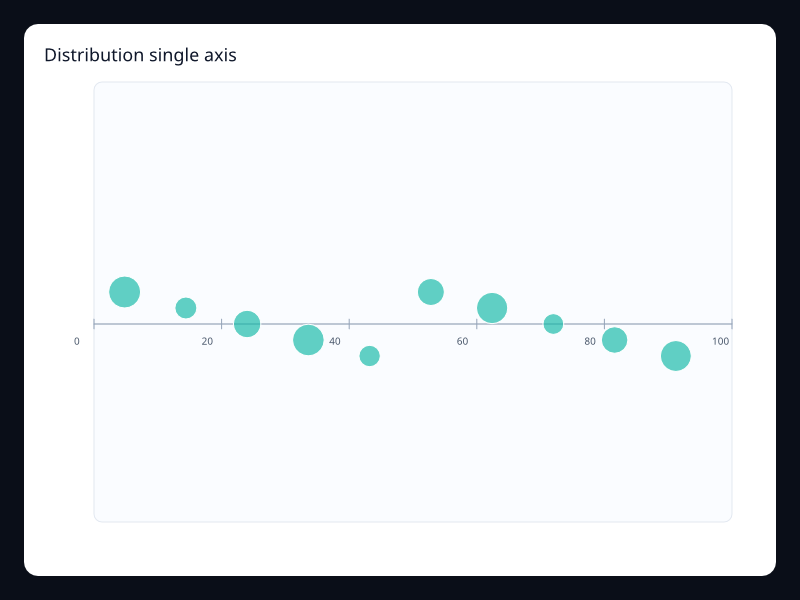

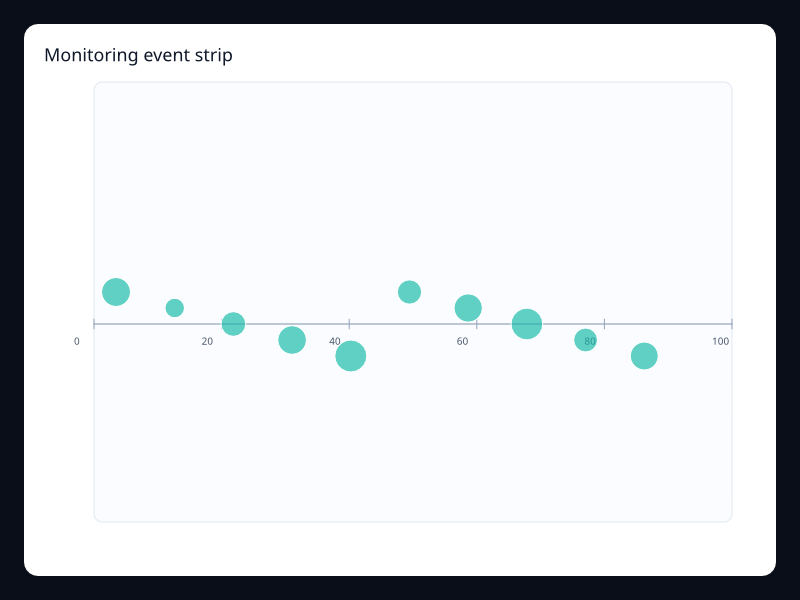

Single axis

Events or weighted points arranged along one numeric axis.

Data

Vec<(value, size)> on a single horizontal scale.

Use when

Use it for timelines, distributions, and event density when a second axis would add noise.

singleAxisevents

Chart family

3D and GL

3D bar

Bar values represented as retained native 3D scene primitives.

Data

A grid of values lowered into Scene3D mesh cuboids.

Use when

Use it when depth and spatial grouping are part of the story, not as a default bar replacement.

3dbar

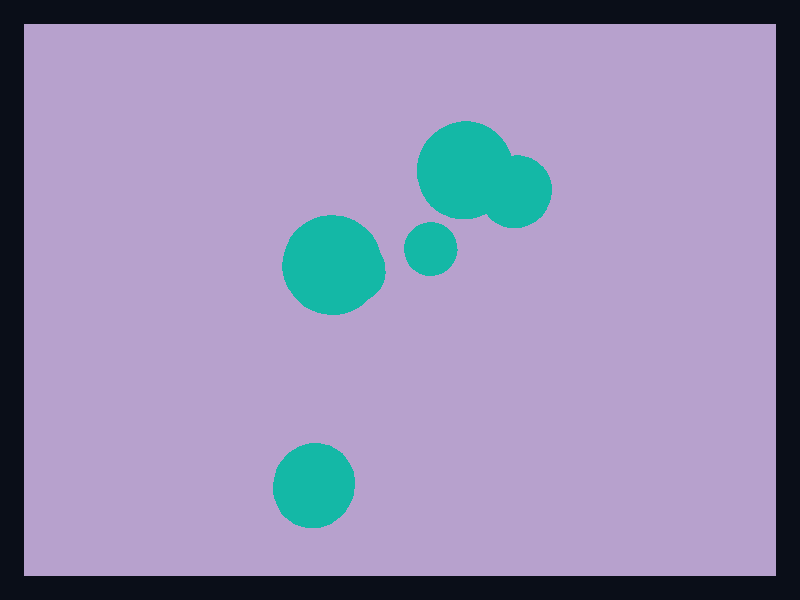

3D scatter

Points positioned in three dimensions with native scene primitives.

Data

Vec<(x, y, z, radius)> lowered into Scene3D spheres.

Use when

Use it when all three dimensions are meaningful and the app benefits from spatial inspection.

3dscatter

3D surface

A gridded surface lowered into a native 3D mesh.

Data

Mesh vertices and triangle indices generated from sampled z values.

Use when

Use it for terrain, response surfaces, and continuous two-variable functions.

3dsurface

3D line

A trajectory drawn through a native 3D scene using sampled points.

Data

Ordered 3D positions lowered into Scene3D primitives.

Use when

Use it for paths, movement, and ordered spatial traces.

3dline

Point cloud

Many small points distributed in three-dimensional space.

Data

A collection of x, y, z positions with point radii.

Use when

Use it for spatial samples, scan data, and dense 3D observations.

3dpoint-cloud

Globe

A spherical world-style chart primitive with highlighted locations.

Data

Scene3D sphere primitives plus marker primitives.

Use when

Use it when global shape and spatial orientation matter to the reader.

3dglobe

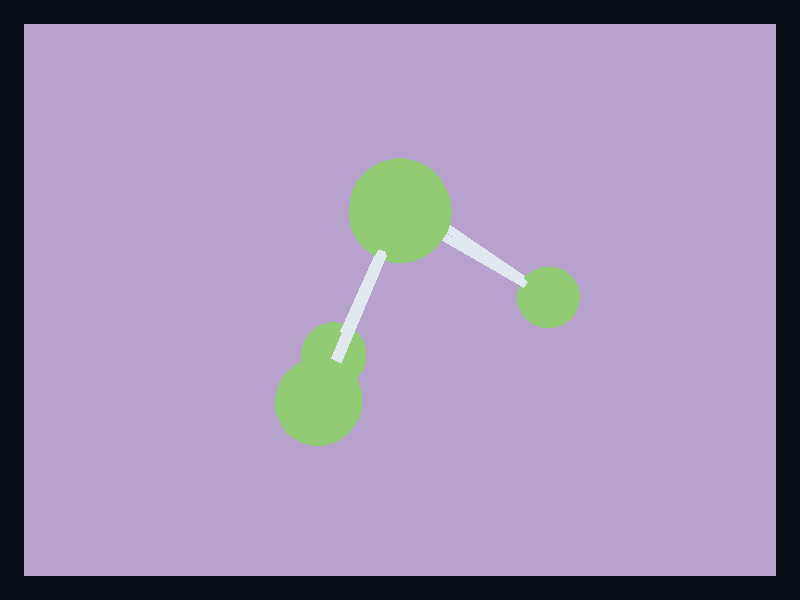

3D graph

Relationship nodes placed in a native 3D scene.

Data

Node positions and values lowered into Scene3D primitives.

Use when

Use it when topology benefits from depth or when the graph is part of a 3D product surface.

3dgraph

Terrain surface

A raised mesh surface for terrain-like continuous data.

Data

Grid-generated mesh vertices and triangle indices.

Use when

Use it for terrain, elevation, and other continuous spatial fields.

3dterrain

3D grid bars

3D bars over a grid.

Data

Scene3D mesh cuboids.

Use when

Use it when depth and grouping are part of the data.

3dbar

3D capacity bars

3D bar scene for capacity values.

Data

Scene3D mesh cuboids.

Use when

Use it for spatial capacity displays.

3dbar

3D scatter cluster

3D scatter points in a native scene.

Data

Scene3D spheres.

Use when

Use it for spatial sample clusters.

3dscatter

3D scatter outliers

3D scatter variant with separated points.

Data

Scene3D spheres.

Use when

Use it for spatial outlier inspection.

3dscatter

3D trajectory

3D trajectory through sampled points.

Data

Scene3D mesh segments plus spheres.

Use when

Use it for movement paths.

3dline

3D spiral line

Spiral-like 3D line path.

Data

Scene3D mesh segments plus points.

Use when

Use it for ordered spatial signals.

3dline

3D wave surface

Smooth mesh surface.

Data

Scene3D mesh vertices and indices.

Use when

Use it for sampled surfaces.

3dsurface

3D terrain mesh

Terrain-like green surface mesh.

Data

Scene3D mesh vertices and indices.

Use when

Use it for elevation and terrain fields.

3dterrain

Dense point cloud

Dense cloud of spatial samples.

Data

Scene3D spheres.

Use when

Use it for scan-like data.

3dpoint-cloud

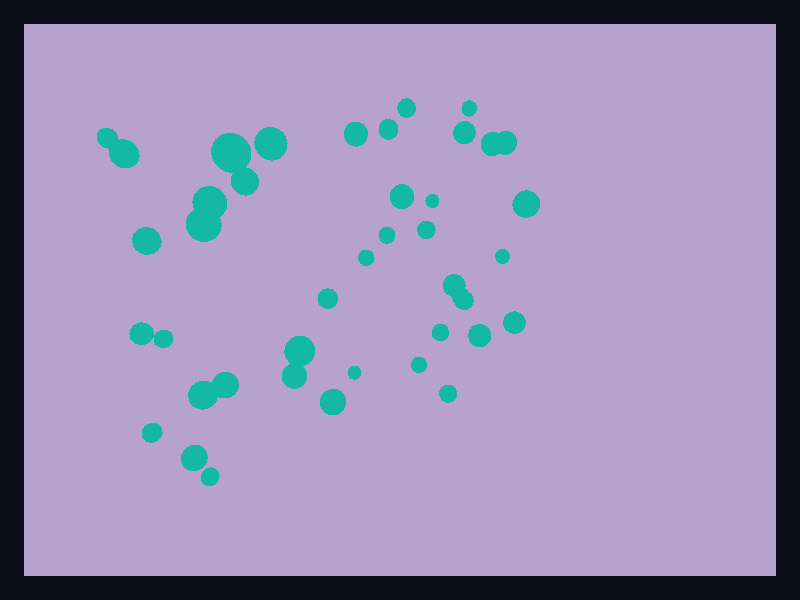

Sparse point cloud

Sparse point cloud in 3D space.

Data

Scene3D spheres.

Use when

Use it for sampled spatial observations.

3dpoint-cloud

Globe markers

Globe primitive with marker locations.

Data

Scene3D spheres.

Use when

Use it for global context.

3dglobe

Globe coverage

Globe variant for coverage displays.

Data

Scene3D spheres.

Use when

Use it for global product surfaces.

3dglobe

3D network

3D graph nodes and links.

Data

Scene3D nodes and segment meshes.

Use when

Use it for topology in depth.

3dgraph

3D topology

3D topology graph variant.

Data

Scene3D nodes and segment meshes.

Use when

Use it for spatial relationship maps.

3dgraph

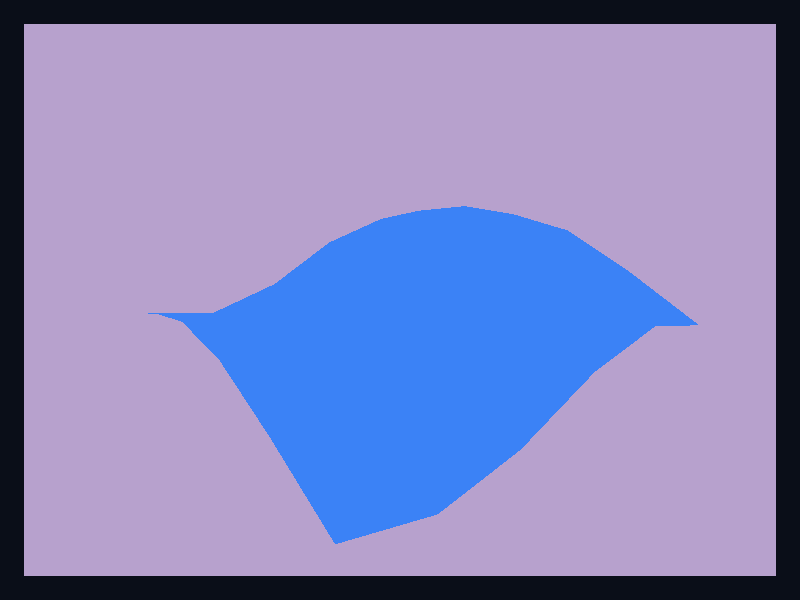

Mesh surface

Generic mesh-rendered surface.

Data

Scene3D mesh primitive.

Use when

Use it for custom mesh data.

3dmesh

Volume-style point field

Dense point field suggesting volume data.

Data

Scene3D spheres.

Use when

Use it as the current native path toward volume-style visualization.

3dvolume

3D capacity bars

3D capacity bars uses Fission Charts typed Rust data to render a production-ready 3d and gl view.

Data

Scene3D cuboids representing numeric height.

Use when

Use it when depth is part of the visual story.

3dbar

3D grid bars

3D grid bars uses Fission Charts typed Rust data to render a production-ready 3d and gl view.

Data

Grid of cuboids in a native 3D scene.

Use when

Use it for spatial bar comparisons.

3dgrid

3D cluster scatter

3D cluster scatter uses Fission Charts typed Rust data to render a production-ready 3d and gl view.

Data

Spheres positioned in 3D space.

Use when

Use it for spatial point clusters.

3dscatter

3D outlier scatter

3D outlier scatter uses Fission Charts typed Rust data to render a production-ready 3d and gl view.

Data

3D points with varied position and radius.

Use when

Use it to show outliers in a point cloud.

3doutlier

3D response surface

3D response surface uses Fission Charts typed Rust data to render a production-ready 3d and gl view.

Data

Mesh vertices and indices forming a surface.

Use when

Use it for continuous spatial fields.

3dsurface

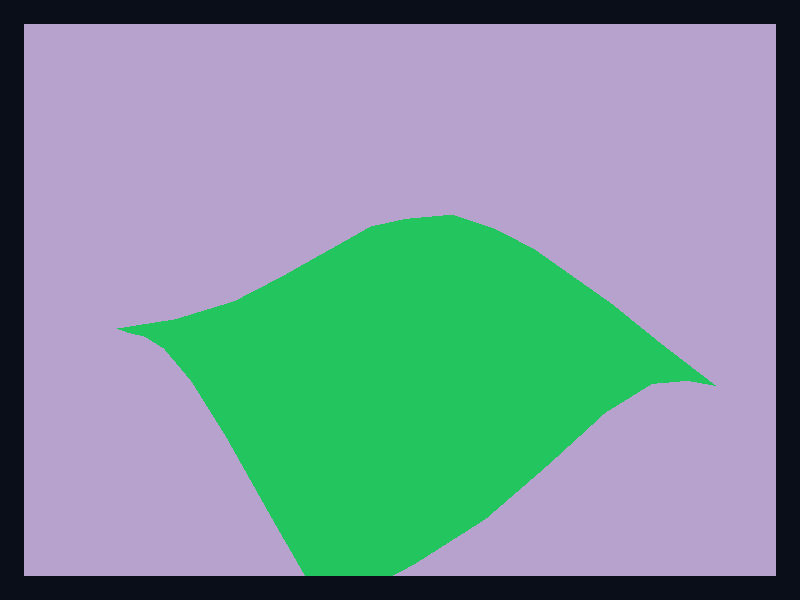

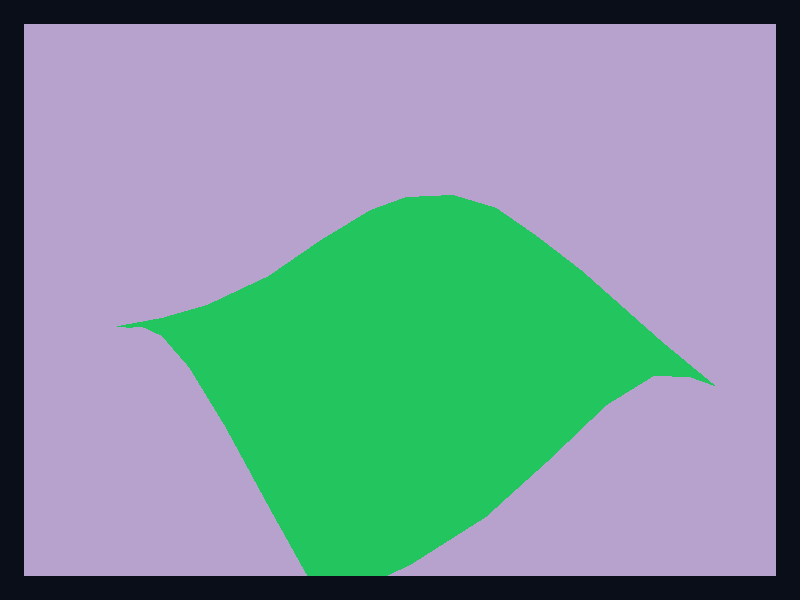

3D terrain response

3D terrain response uses Fission Charts typed Rust data to render a production-ready 3d and gl view.

Data

Raised terrain-like mesh.

Use when

Use it for elevation and field surfaces.

3dterrain

3D line path

3D line path uses Fission Charts typed Rust data to render a production-ready 3d and gl view.

Data

Spheres and segment meshes forming a path.

Use when

Use it for trajectories and movement.

3dline

3D spiral path

3D spiral path uses Fission Charts typed Rust data to render a production-ready 3d and gl view.

Data

Line path through depth.

Use when

Use it for trajectory demos and spatial flows.

3dspiral

Dense 3D point cloud

Dense 3D point cloud uses Fission Charts typed Rust data to render a production-ready 3d and gl view.

Data

Many small spheres in 3D space.

Use when

Use it for point fields and early volume-style views.

3dpointCloud

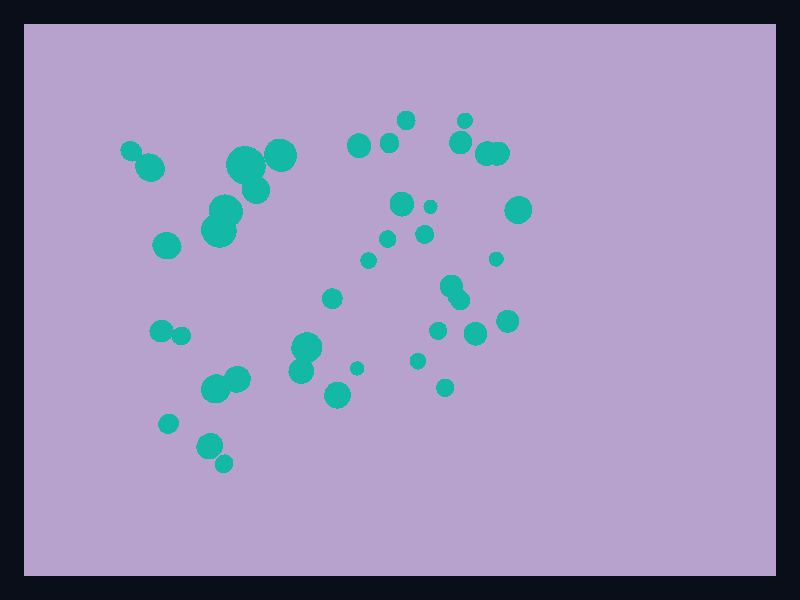

Sparse 3D point cloud

Sparse 3D point cloud uses Fission Charts typed Rust data to render a production-ready 3d and gl view.

Data

Sparse spatial points.

Use when

Use it when individual 3D observations need separation.

3dpointCloud

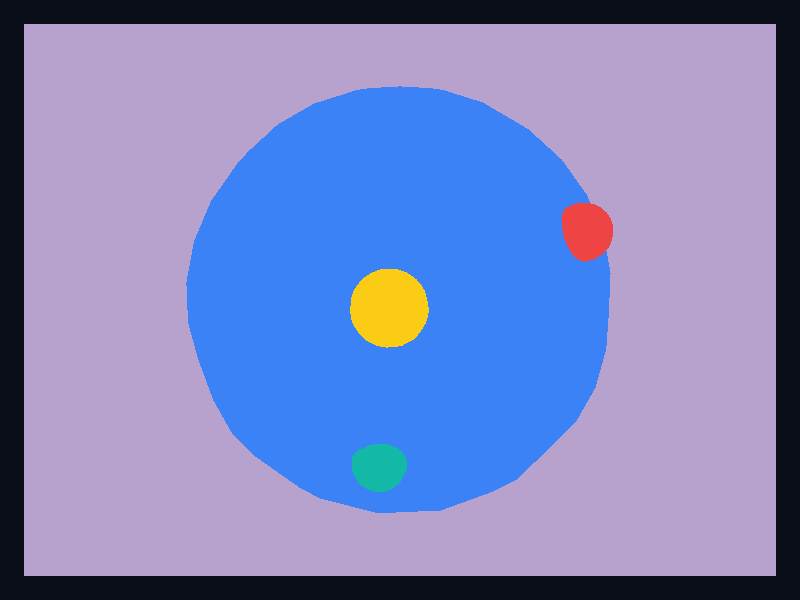

3D globe status

3D globe status uses Fission Charts typed Rust data to render a production-ready 3d and gl view.

Data

Globe sphere with visible markers.

Use when

Use it when global context matters.

3dglobe

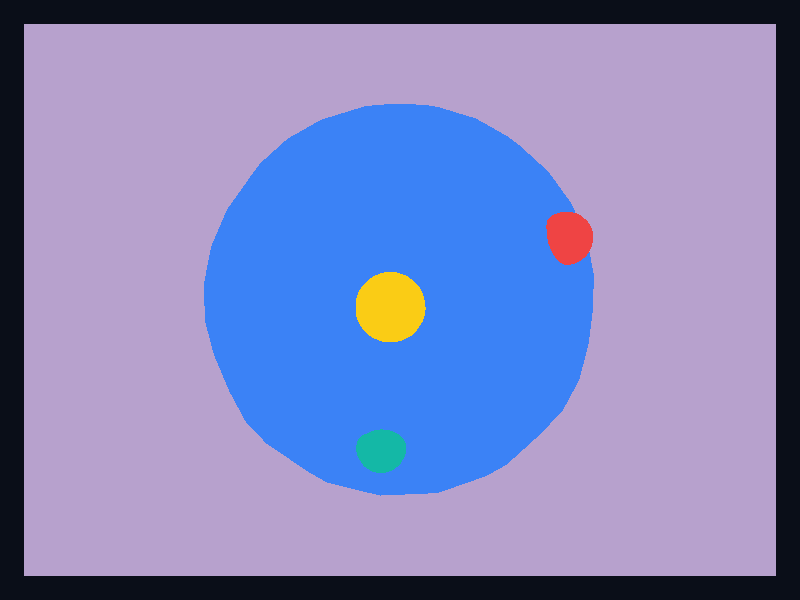

3D globe coverage

3D globe coverage uses Fission Charts typed Rust data to render a production-ready 3d and gl view.

Data

Globe primitive with highlighted locations.

Use when

Use it for coverage and status over a globe.

3dglobe

3D network scene

3D network scene uses Fission Charts typed Rust data to render a production-ready 3d and gl view.

Data

Node spheres connected by segment meshes.

Use when

Use it for spatial network views.

3dnetwork

3D topology scene

3D topology scene uses Fission Charts typed Rust data to render a production-ready 3d and gl view.

Data

3D graph nodes and links.

Use when

Use it when topology benefits from depth.

3dtopology

3D mesh field

3D mesh field uses Fission Charts typed Rust data to render a production-ready 3d and gl view.

Data

Mesh surface primitive.

Use when

Use it for custom mesh data.

3dmesh

3D volume points

3D volume points uses Fission Charts typed Rust data to render a production-ready 3d and gl view.

Data

Point field suggesting volume data.

Use when

Use it as the native point-based volume path.

3dvolume

3D operations bars

3D operations bars uses Fission Charts typed Rust data to render a production-ready 3d and gl view.

Data

3D bars over an operational grid.

Use when

Use it when spatial placement helps compare operational metrics.

3doperations

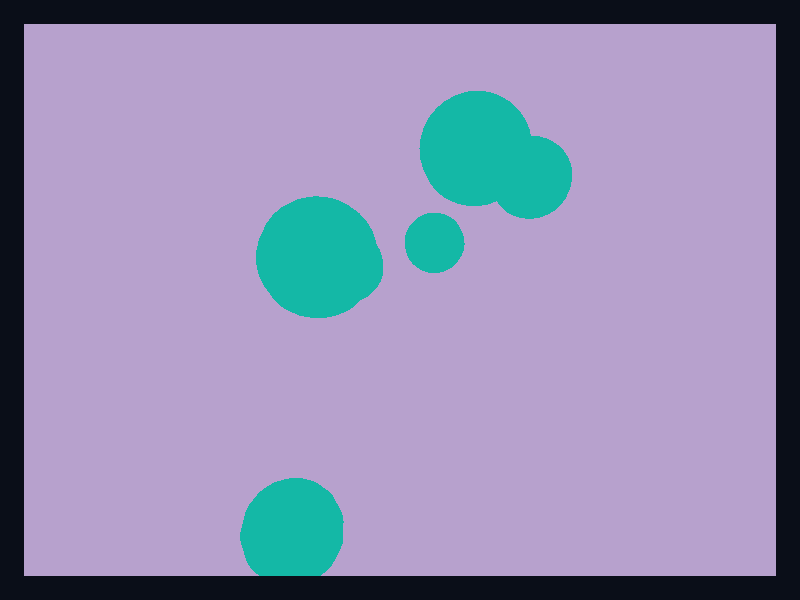

3D service cloud

3D service cloud uses Fission Charts typed Rust data to render a production-ready 3d and gl view.

Data

Service points in 3D space.

Use when

Use it to visualize clusters of service observations.

3dservice

3D risk terrain

3D risk terrain uses Fission Charts typed Rust data to render a production-ready 3d and gl view.

Data

Terrain surface using native mesh rendering.

Use when

Use it for risk and elevation-like surfaces.

3drisk

3D wave surface

3D wave surface uses Fission Charts typed Rust data to render a production-ready 3d and gl view.

Data

Surface mesh with wave-like height variation.

Use when

Use it for continuous response fields.

3dwave

Chart family

Line

Gradient area line

Line chart with translucent area fill for volume emphasis.

Data

Vec<f32> with area style.

Use when

Use it when magnitude and trend should be read together.

linearea

Line with threshold

Line chart with a target line and highlighted operating band.

Data

Vec<f32> plus MarkLine and MarkArea.

Use when

Use it for service levels, quotas, and alert thresholds.

linemarkLine

Forecast band

Line chart with an expected range behind the observed values.

Data

Vec<f32> plus MarkArea.

Use when

Use it when forecasts need uncertainty context.

lineforecast

Weekly cycle line

Ordered samples over a repeating weekly cycle.

Data

Vec<f32> aligned to weekdays.

Use when

Use it for operational rhythms and weekly dashboards.

linecycle

Dense spark line

Compact dense line with many telemetry samples.

Data

Long Vec<f32> on ordered categories.

Use when

Use it for monitoring and telemetry surfaces.

linelarge

Step start line

Discrete state changes drawn as step segments.

Data

Vec<f32> with start step behavior.

Use when

Use it when values jump at the start of each interval.

linestep

Step end line

Discrete state changes drawn at interval ends.

Data

Vec<f32> with end step behavior.

Use when

Use it when values settle at the end of each interval.

linestep

Dual line comparison

Two related line series sharing one chart.

Data

Two Vec<f32> series on shared axes.

Use when

Use it to compare two trends without changing units.

linecomparison

Stacked stream area

Stacked area series showing total and composition.

Data

Multiple LineSeries with one stack key.

Use when

Use it for composition over time.

linestack

Min/max band

Trend line with upper and lower guide marks.

Data

Vec<f32> plus mark lines.

Use when

Use it to show expected bounds around a metric.

linebounds

Seasonal line

Trend samples shaped as a seasonal curve.

Data

Vec<f32> over ordered periods.

Use when

Use it for seasonal demand and capacity planning.

lineseasonal

Annotated line

Line chart with a callout annotation in the plot area.

Data

LineSeries plus ChartGraphic.

Use when

Use it to explain a visible change directly on the chart.

linegraphic

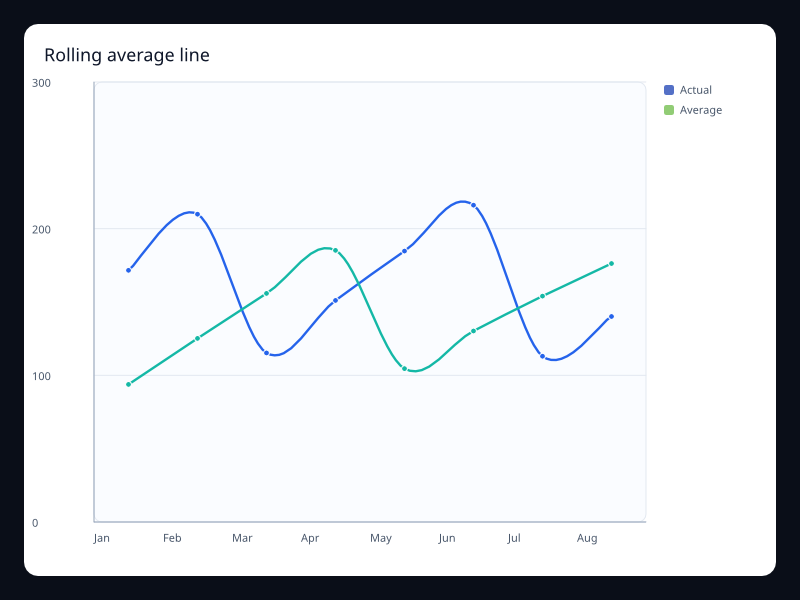

Rolling average line

Raw metric and smoothed average on one chart.

Data

Two Vec<f32> series.

Use when

Use it when readers need both movement and trend.

lineaverage

Zoomed line window

Ordered line data filtered through a data zoom window.

Data

LineSeries plus DataZoom.

Use when

Use it for long series with local inspection.

linedataZoom

Line with alert events

Line chart with named event points.

Data

LineSeries plus MarkPoint.

Use when

Use it to label incidents or releases on a metric.

linemarkPoint

Log-shaped line

A line with rapid early growth and slower later growth.

Data

Vec<f32> with nonlinear values.

Use when

Use it for adoption curves and saturation effects.

linegrowth

Service latency trend

Service latency trend uses Fission Charts typed Rust data to render a production-ready line view.

Data

Latency samples over ordered time buckets.

Use when

Use it for operations screens that need drift and spikes in one glance.

linelatency

Error budget burn

Error budget burn uses Fission Charts typed Rust data to render a production-ready line view.

Data

Budget percentage samples plus threshold marks.

Use when

Use it when teams need to see whether a service is inside its operating band.

lineslo

Capacity forecast band

Capacity forecast band uses Fission Charts typed Rust data to render a production-ready line view.

Data

Observed values with a highlighted expected range.

Use when

Use it when a forecast needs both the line and the safe range.

lineforecast

Release window annotation

Release window annotation uses Fission Charts typed Rust data to render a production-ready line view.

Data

Ordered samples with a graphic callout over the plot.

Use when

Use it when a chart needs to explain why a trend changed.

lineannotation

API throughput line

API throughput line uses Fission Charts typed Rust data to render a production-ready line view.

Data

Dense ordered samples from a service counter.

Use when

Use it for telemetry panels with many points.

linelarge

Signup cohort comparison

Signup cohort comparison uses Fission Charts typed Rust data to render a production-ready line view.

Data

Two ordered series sharing the same axis.

Use when

Use it when users need to compare cohorts over the same time range.

linecomparison

Conversion stack area

Conversion stack area uses Fission Charts typed Rust data to render a production-ready line view.

Data

Several ordered series sharing a stack key.

Use when

Use it to explain how categories make up a total over time.

areastack

Operational step series

Operational step series uses Fission Charts typed Rust data to render a production-ready line view.

Data

Discrete states represented as stepped values.

Use when

Use it for state changes, quotas, or inventory counts.

linestep

Inventory end-step

Inventory end-step uses Fission Charts typed Rust data to render a production-ready line view.

Data

Discrete samples that update at the end of each interval.

Use when

Use it when the value changes after the period closes.

linestep

Retention zoom window

Retention zoom window uses Fission Charts typed Rust data to render a production-ready line view.

Data

Long ordered samples with a visible zoom window.

Use when

Use it when the primary view should focus on one time range.

linezoom

Alert annotations

Alert annotations uses Fission Charts typed Rust data to render a production-ready line view.

Data

Ordered values with event markers.

Use when

Use it when incidents or milestones need to stay attached to the trend.

linemarkers

Revenue seasonality

Revenue seasonality uses Fission Charts typed Rust data to render a production-ready line view.

Data

Ordered samples over a repeated seasonal interval.

Use when

Use it when weekly or monthly rhythm is the main signal.

lineseasonal

Quality operating band

Quality operating band uses Fission Charts typed Rust data to render a production-ready line view.

Data

Samples with a target and acceptable range.

Use when

Use it for production quality metrics with explicit guardrails.

lineband

Traffic rolling average

Traffic rolling average uses Fission Charts typed Rust data to render a production-ready line view.

Data

Raw and smoothed ordered series.

Use when

Use it when the user needs the current signal and the trend baseline.

lineaverage

Demand sparkline

Demand sparkline uses Fission Charts typed Rust data to render a production-ready line view.

Data

Compact dense ordered values.

Use when

Use it inside dense dashboard cards.

linedense

Market index line

Market index line uses Fission Charts typed Rust data to render a production-ready line view.

Data

Indexed ordered values on a value axis.

Use when

Use it when direction and volatility matter more than individual samples.

linefinance

Support volume area

Support volume area uses Fission Charts typed Rust data to render a production-ready line view.

Data

Support counts with an area fill.

Use when

Use it when volume should be visible at a glance.

areasupport

Deployment event line

Deployment event line uses Fission Charts typed Rust data to render a production-ready line view.

Data

Trend values with deployment markers.

Use when

Use it to connect product changes to metric movement.

linedeployment

Regional trend comparison

Regional trend comparison uses Fission Charts typed Rust data to render a production-ready line view.

Data

Two regional series on shared axes.

Use when

Use it when teams compare regions over the same period.

lineregion

Product mix area

Product mix area uses Fission Charts typed Rust data to render a production-ready line view.

Data

Stacked product series over ordered buckets.

Use when

Use it when the total and category mix both matter.

areaproduct

Chart family

Bar

Ranked bar

Horizontal bars sorted by value.

Data

BarSeries with horizontal orientation.

Use when

Use it for rankings with long labels.

barranked

Diverging bar

Horizontal bars extending in both directions from zero.

Data

Positive and negative BarSeries values.

Use when

Use it for sentiment, deltas, and balance views.

bardiverging

Waterfall bar

Sequential changes displayed as rising and falling bars.

Data

Delta values over ordered categories.

Use when

Use it for profit bridges and cumulative change explanations.

barwaterfall

Rounded bar

Bars with rounded corners for dashboard presentation.

Data

BarSeries with border radius.

Use when

Use it when the chart sits in a polished product dashboard.

barrounded

Track progress bars

Bars shown against full-range tracks.

Data

BarSeries with background color.

Use when

Use it for completion and capacity comparisons.

barprogress

Grouped quarterly bars

Grouped bars comparing several periods per category.

Data

Multiple BarSeries on the same categories.

Use when

Use it for side-by-side period comparisons.

bargrouped

Stacked revenue bars

Stacked bars showing total and contribution.

Data

Multiple BarSeries sharing a stack key.

Use when

Use it when totals and composition matter together.

barstack

Negative delta bars

Vertical bars with positive and negative changes.

Data

BarSeries values crossing zero.

Use when

Use it for variance and profit/loss dashboards.

barnegative

Compact category bars

Small category comparison with a clean vertical bar layout.

Data

Vec<f32> aligned to categories.

Use when

Use it for short lists and cards.

barcategory

Wide-label horizontal bars

Horizontal layout preserving long category labels.

Data

BarSeries with category y-axis.

Use when

Use it when labels would collide on the x-axis.

barhorizontal

Pictorial units

Repeated symbols representing category values.

Data

PictorialBarSeries values.

Use when

Use it for branded but still quantitative category displays.

barpictorial

Capacity bars

Bars drawn inside visible capacity tracks.

Data

BarSeries plus maximum axis and background.

Use when

Use it for quota and inventory screens.

barcapacity

Small multiple bars A

A focused bar chart variant for compact dashboards.

Data

BarSeries values on a category axis.

Use when

Use it in repeated dashboard cards.

barsmall-multiple

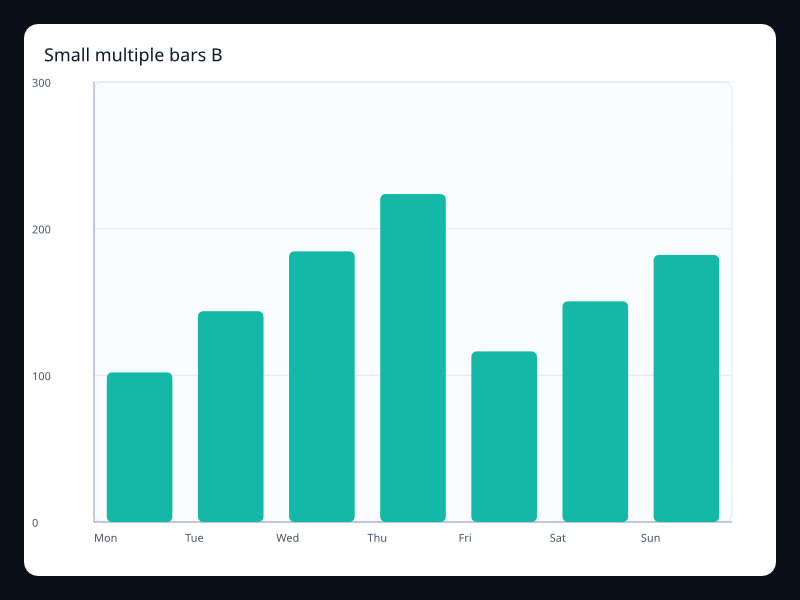

Small multiple bars B

A second compact bar chart with different distribution.

Data

BarSeries values on a category axis.

Use when

Use it when multiple products use the same visual scale.

barsmall-multiple

Sorted horizontal bars

Horizontal ranking sorted largest to smallest.

Data

BarSeries with category y-axis.

Use when

Use it for top-N views.

barsorted

Budget stack

Stacked bars for budget contribution by department.

Data

Stacked BarSeries values.

Use when

Use it for departmental totals and breakdowns.

barbudget

KPI background bars

KPI bars with background tracks.

Data

BarSeries with background styling.

Use when

Use it for KPI completion panels.

barkpi

Region comparison bars

Grouped regional values over shared categories.

Data

Multiple BarSeries.

Use when

Use it for region-by-period comparisons.

barregion

Region ranking

Region ranking uses Fission Charts typed Rust data to render a production-ready bar view.

Data

Category/value pairs sorted for comparison.

Use when

Use it when exact rank is the product question.

barranking

Profit and loss bars

Profit and loss bars uses Fission Charts typed Rust data to render a production-ready bar view.

Data

Positive and negative values on one value axis.

Use when

Use it when gains and losses must share one baseline.

barnegative

Quarter waterfall

Quarter waterfall uses Fission Charts typed Rust data to render a production-ready bar view.

Data

Sequential deltas that explain a final value.

Use when

Use it for financial bridge and variance analysis.

barwaterfall

Sales target track

Sales target track uses Fission Charts typed Rust data to render a production-ready bar view.

Data

Values against a fixed target background.

Use when

Use it when completion against capacity is more important than raw count.

barprogress

Store comparison

Store comparison uses Fission Charts typed Rust data to render a production-ready bar view.

Data

Grouped category values across periods.

Use when

Use it to compare periods inside each category.

bargrouped

Channel stack

Channel stack uses Fission Charts typed Rust data to render a production-ready bar view.

Data

Multiple series stacked per category.

Use when

Use it when total and contribution both matter.

barstack

Return deltas

Return deltas uses Fission Charts typed Rust data to render a production-ready bar view.

Data

Category deltas with negative values.

Use when

Use it for change analysis around zero.

bardelta

Priority queue bars

Priority queue bars uses Fission Charts typed Rust data to render a production-ready bar view.

Data

Rounded bars for a compact queue view.

Use when

Use it when bars sit inside a polished app surface.

barrounded

Funnel unit pictorial bars

Funnel unit pictorial bars uses Fission Charts typed Rust data to render a production-ready bar view.

Data

Values represented by repeated symbols.

Use when

Use it when unit counts should feel more tactile than rectangles.

barsymbol

Utilization capacity

Utilization capacity uses Fission Charts typed Rust data to render a production-ready bar view.

Data

Usage bars with capacity tracks.

Use when

Use it for infrastructure and quota dashboards.

barcapacity

Customer segment bars

Customer segment bars uses Fission Charts typed Rust data to render a production-ready bar view.

Data

Segment values grouped by period.

Use when

Use it to compare segments without splitting the page.

barsegment

Budget variance

Budget variance uses Fission Charts typed Rust data to render a production-ready bar view.

Data

Signed budget variances on a horizontal axis.

Use when

Use it when over and under budget must be symmetric.

barvariance

Ticket age distribution

Ticket age distribution uses Fission Charts typed Rust data to render a production-ready bar view.

Data

Buckets with counts per age range.

Use when

Use it when the reader needs the shape of a queue.

bardistribution

Performance bands

Performance bands uses Fission Charts typed Rust data to render a production-ready bar view.

Data

Values shown against a visual capacity track.

Use when

Use it for scorecards where progress is the dominant signal.

barband

Retail waterfall

Retail waterfall uses Fission Charts typed Rust data to render a production-ready bar view.

Data

Sequential sales and cost changes.

Use when

Use it for retail contribution analysis.

barretail

Team load bars

Team load bars uses Fission Charts typed Rust data to render a production-ready bar view.

Data

Team categories ranked by workload.

Use when

Use it when managers need quick capacity comparison.

barteam

Product stack bars

Product stack bars uses Fission Charts typed Rust data to render a production-ready bar view.

Data

Product values stacked into category totals.

Use when

Use it for portfolio composition.

barproduct

Weekday shape bars

Weekday shape bars uses Fission Charts typed Rust data to render a production-ready bar view.

Data

Seven ordered weekday values.

Use when

Use it when the weekly rhythm is easier as bars than a line.

barweekday

Benchmark comparison

Benchmark comparison uses Fission Charts typed Rust data to render a production-ready bar view.

Data

Actual and benchmark values side by side.

Use when

Use it when each category needs a direct benchmark.

barbenchmark

SLA breach delta

SLA breach delta uses Fission Charts typed Rust data to render a production-ready bar view.

Data

Deltas above and below a service baseline.

Use when

Use it for operational exception reporting.

barsla

Chart family

Pie and radial

Two-level donut

Donut chart for a small part-to-whole breakdown.

Data

Label/value pairs plus inner radius.

Use when

Use it for compact composition summaries.

piedonut

Nested-style donut

Donut-style chart with more categories and central whitespace.

Data

Label/value pairs plus inner radius.

Use when

Use it when a central status label will be added by surrounding UI.

pienested

Presentation rose

Rose chart emphasizing category differences with radius.

Data

Label/value pairs with rose radius mode.

Use when

Use it for presentation views with few categories.

pierose

Area rose

Rose chart using area-oriented radius scaling.

Data

Label/value pairs with rose area mode.

Use when

Use it when small values should remain visible.

pierose

Market share pie

Part-to-whole chart for a small market mix.

Data

Label/value pairs.

Use when

Use it for small composition snapshots.

pieshare

Device mix donut

Donut chart for device or channel mix.

Data

Label/value pairs plus inner radius.

Use when

Use it when the total belongs in the center of the chart.

piedevice

Score gauge

Bounded score shown as an instrument state.

Data

One label/value pair.

Use when

Use it for health or readiness scores.

gaugescore

Capacity gauge

Gauge showing capacity consumed.

Data

One bounded value.

Use when

Use it for operational capacity panels.

gaugecapacity

Cyclic polar bars

Radial bars around a cycle.

Data

Label/value pairs in polar coordinates.

Use when

Use it for cyclical categories.

polarbar

Wind polar line

Directional values on a polar line.

Data

Angle/radius samples.

Use when

Use it for direction and magnitude data.

polarline

Radar profile A

Profile comparison across fixed dimensions.

Data

Vec<Vec<f32>> metric profiles.

Use when

Use it for capability or budget profiles.

radarprofile

Radar profile B

Filled radar chart for overlapping profile comparison.

Data

Vec<Vec<f32>> metric profiles.

Use when

Use it when the profile shape matters.

radarprofile

Chart family

Scatter and statistical

Scatter clusters

Point cloud showing clustered observations.

Data

Vec<(f32, f32)>.

Use when

Use it for correlation and clustering.

scattercluster

Scatter outliers

Scatter chart with emphasized outlier points.

Data

Vec<(f32, f32)> plus effect scatter styling.

Use when

Use it to make exceptions visible.

scatteroutlier

Market bubble chart

Bubble chart encoding market size as radius.

Data

Vec<(x, y, size)>.

Use when

Use it for three-dimensional business comparisons.

scatterbubble

Risk return scatter

Scatter chart with bubble size for exposure.

Data

Vec<(risk, return, exposure)>.

Use when

Use it for portfolio-style comparisons.

scatterrisk

Latency boxplot

Distribution summary for latency groups.

Data

Five-number summary rows.

Use when

Use it when distribution matters more than averages.

boxplotlatency

Quality boxplot

Boxplot comparing quality ranges.

Data

Five-number summary rows.

Use when

Use it for process quality and batch comparisons.

boxplotquality

Candlestick with movement

Open-close-low-high financial movement.

Data

Rows of open, close, low, high values.

Use when

Use it for market and range-over-time data.

candlestickfinance

Intraday candlestick

Candlestick variant with tighter movement.

Data

OHLC rows.

Use when

Use it for intraday or short-range market views.

candlestickfinance

Conversion funnel

Stages drawn as a narrowing funnel.

Data

Ordered label/value pairs.

Use when

Use it for sales or onboarding funnels.

funnelconversion

Recruiting funnel

Funnel chart for hiring stages.

Data

Ordered label/value pairs.

Use when

Use it when stage drop-off matters.

funnelpipeline

Product parallel coordinates

Rows crossing multiple dimensions.

Data

Vec<Vec<f32>> observations.

Use when

Use it for multidimensional comparison.

paralleldimensions

Quality parallel coordinates

Parallel coordinates for quality dimensions.

Data

Vec<Vec<f32>> observations.

Use when

Use it for filtering and comparing profiles.

parallelquality

Event single axis

Weighted events along a single timeline.

Data

Vec<(value, size)>.

Use when

Use it for event density and distributions.

singleAxisevents

Distribution single axis

Weighted samples on one numeric scale.

Data

Vec<(value, size)>.

Use when

Use it when a second axis adds noise.

singleAxisdistribution

Chart family

Heatmap and calendar

Weekday hour heatmap

Matrix heatmap for activity by hour and weekday.

Data

x index, y index, value triples.

Use when

Use it for operational intensity matrices.

heatmapmatrix

Resource load heatmap

Heatmap showing resource load across services.

Data

Matrix value triples.

Use when

Use it for capacity and utilization panels.

heatmapload

Risk grid heatmap

Risk values in a two-axis matrix.

Data

Matrix value triples.

Use when

Use it for risk and priority matrices.

heatmaprisk

Visual map density

Heatmap with explicit visual map color scale.

Data

HeatmapSeries plus VisualMap.

Use when

Use it when color needs a visible numeric range.

visual-mapheatmap

Quarter calendar heatmap

Calendar heatmap for a quarter of activity.

Data

Date/value pairs.

Use when

Use it for contribution and activity patterns.

calendarheatmap

Incident calendar

Calendar heatmap for incident counts.

Data

Date/value pairs.

Use when

Use it for reliability and support reporting.

calendarincidents

Retention calendar

Calendar heatmap for retained activity.

Data

Date/value pairs.

Use when

Use it for habit and retention surfaces.

calendarretention

Build calendar

Calendar heatmap for build volume.

Data

Date/value pairs.

Use when

Use it for engineering operations.

calendarbuilds

Small matrix heatmap

Compact heatmap for a small matrix.

Data

Matrix value triples.

Use when

Use it for dashboards with limited space.

heatmapmatrix

Large matrix heatmap

Larger heatmap with more cells.

Data

Dense matrix value triples.

Use when

Use it for activity grids with many columns.

heatmaplarge

Correlation heatmap

Square-style heatmap for correlation-like data.

Data

Matrix value triples.

Use when

Use it for relationship strength matrices.

heatmapcorrelation

Availability heatmap

Availability values across services and periods.

Data

Matrix value triples.

Use when

Use it for SRE and operations dashboards.

heatmapavailability

Chart family

Hierarchy and flow

Org tree

Parent-child hierarchy as a tidy tree.

Data

Nested nodes.

Use when

Use it for organization and ownership charts.

treehierarchy

File-system tree

Nested file-style hierarchy.

Data

Nested nodes with values.

Use when

Use it for product and resource hierarchies.

treefiles

Radial taxonomy

Radial layout for a shallow taxonomy.

Data

Nested nodes.

Use when

Use it when hierarchy symmetry matters.

treeradial

Budget treemap

Hierarchical values packed into rectangles.

Data

Nested value nodes.

Use when

Use it for budget or storage breakdowns.

treemapbudget

Storage treemap

Treemap for storage allocation.

Data

Nested value nodes.

Use when

Use it for disk and memory allocation.

treemapstorage

Product sunburst

Hierarchical values in concentric rings.

Data

Nested value nodes.

Use when

Use it for hierarchy depth and composition.

sunbursthierarchy

Revenue sunburst

Revenue hierarchy as radial rings.

Data

Nested value nodes.

Use when

Use it for nested part-to-whole data.

sunburstrevenue

Energy sankey

Flow bands between stages.

Data

Node list plus edges.

Use when

Use it for material, energy, or revenue flow.

sankeyflow

User-flow sankey

Sankey chart for user movement.

Data

Node list plus edges.

Use when

Use it for conversion path analysis.

sankeyflow

Traffic theme river

Flowing stacked categories over time.

Data

Time/value/category tuples.

Use when

Use it for composition changing over time.

themeRivertime

Demand theme river

Theme river chart for demand sources.

Data

Time/value/category tuples.

Use when

Use it for campaign or demand mix.

themeRiverdemand

Dependency graph

Network nodes and edges.

Data

Graph nodes plus edges.

Use when

Use it for dependency and topology diagrams.

graphnetwork

Service graph

Service topology network.

Data

Graph nodes plus edges.

Use when

Use it for systems maps and service graphs.

graphservice

Circular-like graph

Network layout with larger central nodes.

Data

Graph nodes plus edges.

Use when

Use it for relationship overview surfaces.

graphcircular

Chart family

Geo and route

Region value map

GeoJSON-backed choropleth map.

Data

GeoJSON regions plus values.

Use when

Use it for geography-first comparisons.

mapgeo

Service coverage map

Map with coverage values by region.

Data

GeoJSON regions plus values.

Use when

Use it for coverage and rollout screens.

mapcoverage

Route arcs

Curved route lines with direction.

Data

Line segments with values.

Use when

Use it for logistics and movement.

linesroutes

Route map overlay

Routes drawn over geographic regions.

Data

GeoJSON regions plus route segments.

Use when

Use it when geography and movement combine.

maproutes

Migration routes

Route lines representing movement intensity.

Data

LineSegment values.

Use when

Use it for movement and transfer flows.

linesmigration

Geo network

Map with network-like route overlays.

Data

GeoJSON plus lines.

Use when

Use it for network coverage and paths.

mapnetwork

Risk map

Regions colored by risk score.

Data

GeoJSON regions plus numeric values.

Use when

Use it for geographic risk dashboards.

maprisk

Sales map

Region sales values on a map.

Data

GeoJSON regions plus values.

Use when

Use it for regional business metrics.

mapsales

Traffic lines

Curved lines with different values.

Data

LineSegment values.

Use when

Use it for traffic or flow intensity.

linestraffic

Flight-like lines

Directional curved lines with effect points.

Data

LineSegment values plus effect.

Use when

Use it for route animation-style visuals.

linesflight

Chart family

Dataset and dynamic

Encoded bars dataset

Grouped bars generated from named encoded fields.

Data

Records with category, group, and numeric value fields.

Use when

Use it when chart code should name fields once and reuse them across bar variants.

datasetbar

Encoded lines dataset

Line series generated from named encoded fields.

Data

Records with ordered label, measure, and series fields.

Use when

Use it when the same dataset powers several line views.

datasetline

Dataset stacked area

Stacked area view built from reusable dataset-like series.

Data

Several named measures sharing ordered categories.

Use when

Use it when the data pipeline should stay visible instead of hidden in chart-specific arrays.

datasetstack

Visual map scatter

Bubble scatter with value-driven size and color scale.

Data

Triples of x, y, and magnitude values.

Use when

Use it when density and magnitude both matter.

visualMapscatter

Visual map heatmap

Heatmap with a continuous value scale.

Data

Grid cell coordinates with numeric intensity.

Use when

Use it for dense comparisons where color communicates rank faster than labels.

visualMapheatmap

Visual map calendar

Calendar heatmap with a continuous value scale.

Data

Date/value pairs over a calendar range.

Use when

Use it to show daily volume, incidents, or activity in a compact year-like shape.

visualMapcalendar

Dynamic speed gauge

Gauge configured for a changing bounded measure.

Data

Single label/value pair in a known range.

Use when

Use it for operational status values where one number dominates the view.

dynamicgauge

Dynamic score gauge

Gauge configured for a score or quality metric.

Data

Single label/value pair scaled into a gauge arc.

Use when

Use it for scorecards where the main result should be immediately visible.

dynamicgauge

Dynamic alert scatter

Effect scatter highlighting important points over numeric axes.

Data

Small list of highlighted x/y samples.

Use when

Use it when outliers or active alerts need immediate attention.

dynamicscatter

Dynamic pictorial units

Pictorial bar using symbolic marks for count-like values.

Data

Category labels plus numeric values and a symbol choice.

Use when

Use it for unit counts that benefit from a branded or icon-like visual form.

dynamicpictorial

Dynamic sales funnel

Funnel showing staged conversion through a pipeline.

Data

Stage/value pairs ordered by process position.

Use when

Use it when the loss between stages matters more than exact axis measurement.

dynamicfunnel

Dynamic polar score

Polar bars arranged around a radial scale.

Data

Label/value pairs mapped around a circle.

Use when

Use it for cyclic or radial score comparisons.

dynamicpolar

Dynamic radar health

Radar profile with multiple dimensions on one shape.

Data

Several same-length vectors across named indicators.

Use when

Use it for multidimensional status summaries.

dynamicradar

Dynamic single-axis events

Single-axis event distribution with value-coded marks.

Data

Position/value pairs on one continuous axis.

Use when

Use it for timelines or compact event strips.

dynamicsingleAxis

Dynamic brush scatter

Scatter chart with a visible brush selection preview.

Data

Point samples plus a brush rectangle.

Use when

Use it when users need to select a region before drilling into data.

dynamicbrush

Dynamic toolbox line

Line chart with explicit chart utility actions.

Data

Ordered samples plus toolbox action configuration.

Use when

Use it when zoom, brush, restore, and export controls belong with the chart.

dynamictoolbox

Chart family

Statistical

API latency boxplot

API latency boxplot uses Fission Charts typed Rust data to render a production-ready statistical view.

Data

Five-number summaries across service groups.

Use when

Use it to compare distributions instead of averages.

boxplotlatency

Quality spread boxplot

Quality spread boxplot uses Fission Charts typed Rust data to render a production-ready statistical view.

Data

Five-number summaries for quality scores.

Use when

Use it when spread and outliers matter.

boxplotquality

Equity session candlestick

Equity session candlestick uses Fission Charts typed Rust data to render a production-ready statistical view.

Data

Open, close, low, and high values by period.

Use when

Use it for financial price movement.

candlestickfinance

Crypto session candlestick

Crypto session candlestick uses Fission Charts typed Rust data to render a production-ready statistical view.

Data

OHLC values over intraday buckets.

Use when

Use it when price direction and range must be visible together.

candlestickfinance

Quality outlier scatter

Quality outlier scatter uses Fission Charts typed Rust data to render a production-ready statistical view.

Data

Highlighted x/y points over value axes.

Use when

Use it when outliers should attract attention immediately.

scatteroutlier

Risk bubble matrix

Risk bubble matrix uses Fission Charts typed Rust data to render a production-ready statistical view.

Data

X, y, and magnitude triples.

Use when

Use it when size carries a third measure.

scatterbubble

Portfolio risk return

Portfolio risk return uses Fission Charts typed Rust data to render a production-ready statistical view.

Data

Risk, return, and exposure values.

Use when

Use it to compare assets or initiatives with three measures.

scatterportfolio

Lab sample scatter

Lab sample scatter uses Fission Charts typed Rust data to render a production-ready statistical view.

Data

Independent x/y samples.

Use when

Use it for correlation and clustering questions.

scattersamples

Activation funnel

Activation funnel uses Fission Charts typed Rust data to render a production-ready statistical view.

Data

Ordered conversion stage values.

Use when

Use it when conversion loss matters more than a shared axis.

funnelconversion

Support resolution funnel

Support resolution funnel uses Fission Charts typed Rust data to render a production-ready statistical view.

Data

Stage/value pairs through a process.

Use when

Use it for operational process attrition.

funnelsupport

Device quality parallel

Device quality parallel uses Fission Charts typed Rust data to render a production-ready statistical view.

Data

Rows of comparable numeric dimensions.

Use when

Use it when each item has several independent measures.

parallelquality

Plan comparison parallel

Plan comparison parallel uses Fission Charts typed Rust data to render a production-ready statistical view.

Data

Multi-dimensional rows on parallel axes.

Use when

Use it when tradeoffs across measures matter.

parallelcomparison

Release event strip

Release event strip uses Fission Charts typed Rust data to render a production-ready statistical view.

Data

Position/value pairs on one axis.

Use when

Use it for compact event timelines.

singleAxisevents

Job runtime strip

Job runtime strip uses Fission Charts typed Rust data to render a production-ready statistical view.

Data

Job positions with duration or intensity values.

Use when

Use it for queue and schedule views.

singleAxisruntime

Alert hotspot scatter

Alert hotspot scatter uses Fission Charts typed Rust data to render a production-ready statistical view.

Data

Selected alert points over numeric axes.

Use when

Use it when only important events should pulse visually.

scatteralert

Region spread boxplot

Region spread boxplot uses Fission Charts typed Rust data to render a production-ready statistical view.

Data

Five-number summaries by region.

Use when

Use it for distribution comparison across regions.

boxplotregion

Volume shift candlestick

Volume shift candlestick uses Fission Charts typed Rust data to render a production-ready statistical view.

Data

OHLC-like movement values by period.

Use when

Use it when directional change and range both matter.

candlestickvolume

Efficiency frontier

Efficiency frontier uses Fission Charts typed Rust data to render a production-ready statistical view.

Data

Efficiency points over value axes.

Use when

Use it to identify leading and lagging points.

scatterefficiency

Customer value bubbles

Customer value bubbles uses Fission Charts typed Rust data to render a production-ready statistical view.

Data

X, y, and value triples for customers or segments.

Use when

Use it when business value should influence point size.

bubblecustomer

Risk score parallel

Risk score parallel uses Fission Charts typed Rust data to render a production-ready statistical view.

Data

Rows of risk dimensions on parallel axes.

Use when

Use it for multidimensional risk assessment.

parallelrisk

Chart family

Radial

Plan share pie

Plan share pie uses Fission Charts typed Rust data to render a production-ready radial view.

Data

Label/value pairs for a small whole.

Use when

Use it when part-to-whole reading is the main task.

pieshare

Device donut

Device donut uses Fission Charts typed Rust data to render a production-ready radial view.

Data

Label/value pairs with an open center.

Use when

Use it when the center can carry a total or primary label.

donutdevice

Market rose

Market rose uses Fission Charts typed Rust data to render a production-ready radial view.

Data

Label/value pairs with radius emphasis.

Use when

Use it when presentation value is high and categories are few.

rosemarket

Exposure area rose

Exposure area rose uses Fission Charts typed Rust data to render a production-ready radial view.

Data

Label/value pairs with area-oriented rose layout.

Use when

Use it when relative shape is more important than a precise angle.

rosearea

Availability gauge

Availability gauge uses Fission Charts typed Rust data to render a production-ready radial view.

Data

One bounded value mapped to an arc.

Use when

Use it when a single current status dominates the screen.

gaugeavailability

Deploy health gauge

Deploy health gauge uses Fission Charts typed Rust data to render a production-ready radial view.

Data

Single score value in a bounded range.

Use when

Use it for health and readiness summaries.

gaugehealth

Hourly load polar bars

Hourly load polar bars uses Fission Charts typed Rust data to render a production-ready radial view.

Data

Label/value pairs around a circle.

Use when

Use it when cyclic position is meaningful.

polarbar

Wind speed polar line

Wind speed polar line uses Fission Charts typed Rust data to render a production-ready radial view.

Data

Angle/radius samples.

Use when

Use it for directional or cyclic measures.

polarline

Product fit radar

Product fit radar uses Fission Charts typed Rust data to render a production-ready radial view.

Data

Several same-length dimensional vectors.

Use when

Use it to compare shapes across a few dimensions.

radarprofile

Service health radar

Service health radar uses Fission Charts typed Rust data to render a production-ready radial view.

Data

Health dimensions on a radial profile.

Use when

Use it for compact status summaries.

radarhealth

Revenue mix donut

Revenue mix donut uses Fission Charts typed Rust data to render a production-ready radial view.

Data

Revenue categories as label/value pairs.

Use when

Use it when contribution to total revenue matters.

donutrevenue

Source mix pie

Source mix pie uses Fission Charts typed Rust data to render a production-ready radial view.

Data

Traffic or source categories with values.

Use when

Use it for small source distributions.

piesource

Build confidence gauge

Build confidence gauge uses Fission Charts typed Rust data to render a production-ready radial view.

Data

One confidence score on a gauge arc.

Use when

Use it when a status panel needs a primary quality number.

gaugebuild

Seasonality polar bars

Seasonality polar bars uses Fission Charts typed Rust data to render a production-ready radial view.

Data

Cyclic label/value pairs.

Use when

Use it when the shape wraps around a repeated cycle.

polarseasonal

Team balance radar

Team balance radar uses Fission Charts typed Rust data to render a production-ready radial view.

Data

Team capability vectors.

Use when

Use it when balance across dimensions is the main reading.

radarteam

Expense donut

Expense donut uses Fission Charts typed Rust data to render a production-ready radial view.

Data

Expense categories as a small whole.

Use when

Use it for budget composition.

donutexpense

Risk rose

Risk rose uses Fission Charts typed Rust data to render a production-ready radial view.

Data

Risk category values in radial form.

Use when

Use it for executive risk snapshots where visual emphasis helps.

roserisk

Cycle polar line

Cycle polar line uses Fission Charts typed Rust data to render a production-ready radial view.

Data

Angle/radius samples around a cycle.

Use when

Use it for circular process metrics.

polarcycle

Capacity headroom gauge

Capacity headroom gauge uses Fission Charts typed Rust data to render a production-ready radial view.

Data

Single capacity value in a bounded range.

Use when

Use it when headroom is the only number that matters.

gaugecapacity

Platform readiness radar

Platform readiness radar uses Fission Charts typed Rust data to render a production-ready radial view.

Data

Platform dimensions as comparable vectors.

Use when

Use it to summarize readiness across product areas.

radarplatform

Chart family

Heatmap

Deployment hour heatmap

Deployment hour heatmap uses Fission Charts typed Rust data to render a production-ready heatmap view.

Data

Grid coordinates with numeric intensity.

Use when

Use it to find concentration by hour and day.

heatmapdeployment

Support load heatmap

Support load heatmap uses Fission Charts typed Rust data to render a production-ready heatmap view.

Data

Two-dimensional grid cells with values.

Use when

Use it for workload concentration.

heatmapsupport

Service risk matrix

Service risk matrix uses Fission Charts typed Rust data to render a production-ready heatmap view.

Data

Larger matrix of risk values.

Use when

Use it when dense matrix comparison matters.

heatmaprisk

Correlation grid

Correlation grid uses Fission Charts typed Rust data to render a production-ready heatmap view.

Data

Grid of pairwise values.

Use when

Use it for correlation-like analysis.

heatmapcorrelation

Commit activity calendar

Commit activity calendar uses Fission Charts typed Rust data to render a production-ready heatmap view.

Data

Date/value pairs over a calendar range.

Use when

Use it to show daily activity patterns.

calendaractivity

Incident volume calendar

Incident volume calendar uses Fission Charts typed Rust data to render a production-ready heatmap view.

Data

Daily incident counts over a date range.

Use when

Use it when the calendar shape carries meaning.

calendarincident

Daily retention calendar

Daily retention calendar uses Fission Charts typed Rust data to render a production-ready heatmap view.

Data

Date/value pairs for retention events.

Use when

Use it to scan day-level consistency.

calendarretention

Release burndown calendar

Release burndown calendar uses Fission Charts typed Rust data to render a production-ready heatmap view.

Data

Daily values across a release period.

Use when

Use it for calendar-driven delivery views.

calendarrelease

Load grid visual map

Load grid visual map uses Fission Charts typed Rust data to render a production-ready heatmap view.

Data

Numeric grid values mapped to color.

Use when

Use it when color should explain intensity.

visualMapheatmap

Density visual map

Density visual map uses Fission Charts typed Rust data to render a production-ready heatmap view.

Data

Dense grid with continuous color scale.

Use when

Use it for density and occupancy surfaces.

visualMapdensity

Availability window

Availability window uses Fission Charts typed Rust data to render a production-ready heatmap view.

Data

Grid values representing availability.

Use when

Use it to compare uptime windows.

heatmapavailability

Resource saturation

Resource saturation uses Fission Charts typed Rust data to render a production-ready heatmap view.

Data

Resource and time values on a matrix.

Use when

Use it for infrastructure saturation.

heatmapresource

Daily sales calendar

Daily sales calendar uses Fission Charts typed Rust data to render a production-ready heatmap view.

Data

Daily sales values over a date range.

Use when

Use it when weekday and date position matter.

calendarsales

Quality gates calendar

Quality gates calendar uses Fission Charts typed Rust data to render a production-ready heatmap view.

Data

Daily quality values.

Use when

Use it for quality gate consistency over time.

calendarquality

Feature usage heatmap

Feature usage heatmap uses Fission Charts typed Rust data to render a production-ready heatmap view.

Data

Feature/category values on a two-dimensional grid.

Use when

Use it to find usage hotspots.

heatmapusage

Access matrix

Access matrix uses Fission Charts typed Rust data to render a production-ready heatmap view.

Data

Permission-like matrix values.

Use when

Use it for dense access and security matrices.

heatmapsecurity

Visual map build calendar

Visual map build calendar uses Fission Charts typed Rust data to render a production-ready heatmap view.

Data

Daily build values with a color scale.

Use when

Use it when calendar and intensity both matter.

visualMapcalendar

Queue depth matrix

Queue depth matrix uses Fission Charts typed Rust data to render a production-ready heatmap view.

Data

Queue depth by queue and time bucket.

Use when

Use it for operational queues.

heatmapqueue

Regression risk matrix

Regression risk matrix uses Fission Charts typed Rust data to render a production-ready heatmap view.

Data

Risk values by component and area.

Use when

Use it before releases to focus attention.

heatmapregression

User activity calendar

User activity calendar uses Fission Charts typed Rust data to render a production-ready heatmap view.

Data

Date/value activity pairs.

Use when

Use it to show consistency and spikes over time.

calendaruser

Chart family

Hierarchy

Platform module tree

Platform module tree uses Fission Charts typed Rust data to render a production-ready hierarchy view.

Data

Nested named nodes with values.

Use when

Use it for ownership and dependency hierarchy.

treeplatform

Product taxonomy tree

Product taxonomy tree uses Fission Charts typed Rust data to render a production-ready hierarchy view.

Data

Nested product categories.

Use when

Use it when users browse hierarchical structure.

treetaxonomy

Radial service tree

Radial service tree uses Fission Charts typed Rust data to render a production-ready hierarchy view.

Data

Nested nodes arranged radially.

Use when

Use it when a compact hierarchy is needed.

treeradial

Cost center treemap

Cost center treemap uses Fission Charts typed Rust data to render a production-ready hierarchy view.

Data

Hierarchical values sized by area.

Use when

Use it for part-to-whole hierarchy analysis.

treemapcost

Storage class treemap

Storage class treemap uses Fission Charts typed Rust data to render a production-ready hierarchy view.

Data

Nested values by storage class.

Use when

Use it when area should communicate magnitude.

treemapstorage

Feature area sunburst

Feature area sunburst uses Fission Charts typed Rust data to render a production-ready hierarchy view.

Data

Nested values in radial layers.

Use when

Use it for hierarchical composition with depth.

sunburstfeature

Org revenue sunburst

Org revenue sunburst uses Fission Charts typed Rust data to render a production-ready hierarchy view.

Data

Hierarchy values as radial rings.

Use when

Use it when hierarchy and whole composition both matter.

sunburstrevenue

Lead flow sankey

Lead flow sankey uses Fission Charts typed Rust data to render a production-ready hierarchy view.

Data

Nodes and directed weighted links.

Use when

Use it when movement between stages is the question.

sankeyflow

Energy balance sankey

Energy balance sankey uses Fission Charts typed Rust data to render a production-ready hierarchy view.

Data

Flow nodes and links.

Use when

Use it for transfer and loss diagrams.

sankeyenergy

Support theme river

Support theme river uses Fission Charts typed Rust data to render a production-ready hierarchy view.

Data

Stacked stream values by time and category.

Use when

Use it for shifting composition over time.

themeRiversupport

Service dependencies

Service dependencies uses Fission Charts typed Rust data to render a production-ready hierarchy view.

Data

Nodes and links with values.

Use when

Use it to explain relationship topology.

graphdependencies

Customer journey graph

Customer journey graph uses Fission Charts typed Rust data to render a production-ready hierarchy view.

Data

Relationship nodes and edges.

Use when

Use it when paths and relationships matter more than axes.

graphjourney

Alert correlation graph

Alert correlation graph uses Fission Charts typed Rust data to render a production-ready hierarchy view.

Data

Related alert nodes and links.

Use when

Use it for incident analysis.

graphalert

File ownership tree

File ownership tree uses Fission Charts typed Rust data to render a production-ready hierarchy view.

Data

Nested file or team ownership nodes.

Use when

Use it for repository and ownership views.

treeownership

Budget allocation treemap

Budget allocation treemap uses Fission Charts typed Rust data to render a production-ready hierarchy view.

Data

Nested budget values sized by area.

Use when

Use it for budget share exploration.

treemapbudget

Customer segment sunburst

Customer segment sunburst uses Fission Charts typed Rust data to render a production-ready hierarchy view.

Data

Nested customer groups by value.

Use when

Use it for segment hierarchy and share.

sunburstcustomer

Resolution path sankey

Resolution path sankey uses Fission Charts typed Rust data to render a production-ready hierarchy view.

Data

Support stages as flow links.

Use when

Use it to analyze process movement.

sankeysupport

Channel mix river

Channel mix river uses Fission Charts typed Rust data to render a production-ready hierarchy view.

Data

Channel values over time.

Use when

Use it to show mix changes without losing continuity.

themeRiverchannel

Platform topology graph

Platform topology graph uses Fission Charts typed Rust data to render a production-ready hierarchy view.

Data

Platform nodes and dependency edges.

Use when

Use it for system overview screens.

graphplatform

Chart family

Geo

Market regions map

Market regions map uses Fission Charts typed Rust data to render a production-ready geo view.

Data

Named regions with values.

Use when

Use it for regional comparisons where shape matters.

mapregion

Risk regions map

Risk regions map uses Fission Charts typed Rust data to render a production-ready geo view.

Data

Region values mapped to color.

Use when

Use it to scan geographic risk.

maprisk

Service health map

Service health map uses Fission Charts typed Rust data to render a production-ready geo view.

Data

Region health values.

Use when

Use it for operational geography.

maphealth

Sales territory map

Sales territory map uses Fission Charts typed Rust data to render a production-ready geo view.

Data

Territory values over named regions.

Use when

Use it when territory is the mental model.

mapsales

Supply routes

Supply routes uses Fission Charts typed Rust data to render a production-ready geo view.

Data

Coordinate pairs representing routes.

Use when

Use it for route and movement diagrams.

linesroute

Network traffic lines

Network traffic lines uses Fission Charts typed Rust data to render a production-ready geo view.

Data

Route lines with effect markers.

Use when

Use it for flow over a spatial surface.

linestraffic

Dispatch routes

Dispatch routes uses Fission Charts typed Rust data to render a production-ready geo view.

Data

Map regions plus route lines.

Use when

Use it when routes need region context.

maproutes

Migration flow

Migration flow uses Fission Charts typed Rust data to render a production-ready geo view.

Data

Region map plus movement routes.

Use when

Use it for source-to-destination stories.

geomigration

Data center links

Data center links uses Fission Charts typed Rust data to render a production-ready geo view.

Data

Route-like links between points.

Use when

Use it for infrastructure network views.

geonetwork

Capacity regions map

Capacity regions map uses Fission Charts typed Rust data to render a production-ready geo view.

Data

Region values with visual scale.

Use when

Use it for capacity by geography.

mapcapacity

Coverage score map

Coverage score map uses Fission Charts typed Rust data to render a production-ready geo view.

Data

Coverage scores by region.

Use when

Use it for service coverage surfaces.

mapcoverage

Flight density lines

Flight density lines uses Fission Charts typed Rust data to render a production-ready geo view.

Data

Dense route lines between points.

Use when

Use it for movement patterns.

linesflight

Route overlay map

Route overlay map uses Fission Charts typed Rust data to render a production-ready geo view.

Data

Map and line series together.

Use when

Use it when geography and movement are inseparable.

mapoverlay

Support demand map

Support demand map uses Fission Charts typed Rust data to render a production-ready geo view.

Data

Demand values over regions.

Use when

Use it to allocate support capacity geographically.

mapsupport

Incident severity map

Incident severity map uses Fission Charts typed Rust data to render a production-ready geo view.

Data

Severity values mapped to region color.

Use when

Use it for incident command views.

mapincident

Courier routes

Courier routes uses Fission Charts typed Rust data to render a production-ready geo view.

Data

Point-to-point route lines.

Use when

Use it for logistics routing.

linescourier

Network overlay

Network overlay uses Fission Charts typed Rust data to render a production-ready geo view.

Data

Region values with connection lines.

Use when

Use it for linked geographic systems.

geonetwork

Expansion plan map

Expansion plan map uses Fission Charts typed Rust data to render a production-ready geo view.

Data

Planning values by region.

Use when

Use it for geographic planning dashboards.

mapplanning

Incident routing lines

Incident routing lines uses Fission Charts typed Rust data to render a production-ready geo view.

Data

Routes representing response movement.

Use when

Use it for dispatch and response analytics.

linesincident

Sales route map

Sales route map uses Fission Charts typed Rust data to render a production-ready geo view.

Data

Sales territories with route overlays.

Use when

Use it for field team planning.

geosales

Chart family

Interaction

Marked SLO chart

Marked SLO chart uses Fission Charts typed Rust data to render a production-ready interaction view.

Data

Trend data plus mark lines and shaded bands.

Use when

Use it to keep thresholds in the chart instead of external notes.

markLineslo

Deployment marks

Deployment marks uses Fission Charts typed Rust data to render a production-ready interaction view.

Data

Trend data with event mark points.

Use when

Use it when specific moments explain the data.

markPointdeploy

Data zoom overview

Data zoom overview uses Fission Charts typed Rust data to render a production-ready interaction view.

Data

Ordered data with a selected zoom range.

Use when

Use it for long series where one window is active.

dataZoomline

Telemetry zoom

Telemetry zoom uses Fission Charts typed Rust data to render a production-ready interaction view.

Data

Long ordered telemetry values with zoom.

Use when

Use it for monitoring and investigation.

dataZoomtelemetry

Axis tooltip

Axis tooltip uses Fission Charts typed Rust data to render a production-ready interaction view.

Data

Series data with axis-oriented tooltip intent.

Use when

Use it when the whole axis position is the hover target.

tooltipaxis

Item tooltip

Item tooltip uses Fission Charts typed Rust data to render a production-ready interaction view.

Data

Series data with item-level tooltip intent.

Use when

Use it when individual marks carry detail.

tooltipitem

Analysis toolbox

Analysis toolbox uses Fission Charts typed Rust data to render a production-ready interaction view.

Data

Chart data with explicit utility actions.

Use when

Use it when analysis actions belong close to the chart.

toolboxanalysis

Export toolbox

Export toolbox uses Fission Charts typed Rust data to render a production-ready interaction view.

Data

Chart data with restore, brush, zoom, and save actions.

Use when

Use it when chart controls need a consistent built-in place.

toolboxexport

Brush region

Brush region uses Fission Charts typed Rust data to render a production-ready interaction view.

Data

Scatter points plus brush rectangle configuration.

Use when

Use it when users select data before drilling in.

brushselection

Brush outliers

Brush outliers uses Fission Charts typed Rust data to render a production-ready interaction view.

Data

Point data with visible brush preview.

Use when

Use it for exploratory selection.

brushoutlier

Graphic note

Graphic note uses Fission Charts typed Rust data to render a production-ready interaction view.

Data

Trend line with typed graphic overlay.

Use when

Use it to add explanations without leaving the chart model.

graphicannotation

Graphic band

Graphic band uses Fission Charts typed Rust data to render a production-ready interaction view.

Data

Chart plus typed rect, text, and line graphics.

Use when

Use it for callouts and shaded product ranges.

graphicband

Timeline years

Timeline years uses Fission Charts typed Rust data to render a production-ready interaction view.

Data

Chart data with a timeline control.

Use when

Use it when the same view switches between periods.

timelineyears

Timeline releases

Timeline releases uses Fission Charts typed Rust data to render a production-ready interaction view.

Data

Chart data with release timeline options.

Use when

Use it for versioned or period-based views.

timelinerelease

Breach mark area

Breach mark area uses Fission Charts typed Rust data to render a production-ready interaction view.

Data

Line values with highlighted breach band.

Use when

Use it when unsafe ranges need visible boundaries.

markAreabreach

Annotation callout

Annotation callout uses Fission Charts typed Rust data to render a production-ready interaction view.

Data

Chart data with a typed text callout.

Use when

Use it for guided dashboards and reports.

graphiccallout

Selectable scatter

Selectable scatter uses Fission Charts typed Rust data to render a production-ready interaction view.

Data

Scatter points with selection configuration.

Use when

Use it when users inspect clusters interactively.

brushscatter

Grouped tooltip

Grouped tooltip uses Fission Charts typed Rust data to render a production-ready interaction view.

Data

Grouped series with tooltip intent.

Use when

Use it when comparison needs hover detail.

tooltipgrouped

Restore toolbox

Restore toolbox uses Fission Charts typed Rust data to render a production-ready interaction view.

Data

Chart data with reset action included.

Use when

Use it when user exploration needs a safe reset.

toolboxrestore

Capacity timeline

Capacity timeline uses Fission Charts typed Rust data to render a production-ready interaction view.

Data

Period labels with changing chart state.

Use when

Use it for capacity changes across time.

timelinecapacity

Chart family

Dataset

Products by year dataset

Products by year dataset uses Fission Charts typed Rust data to render a production-ready dataset view.

Data

Tabular product/year/value records.

Use when

Use it when several chart views should share one dataset.

datasetbar

Product trend dataset

Product trend dataset uses Fission Charts typed Rust data to render a production-ready dataset view.

Data

Tabular data encoded into line series.

Use when

Use it when named fields should drive series values.

datasetline

Filtered composition

Filtered composition uses Fission Charts typed Rust data to render a production-ready dataset view.

Data

Filtered label/value rows.

Use when

Use it when the chart represents a selected dataset slice.

datasetfilter

Ranked dataset bars

Ranked dataset bars uses Fission Charts typed Rust data to render a production-ready dataset view.

Data

Rows sorted into category/value pairs.

Use when

Use it when rank comes from data transformation.

datasetrank

Stacked revenue dataset

Stacked revenue dataset uses Fission Charts typed Rust data to render a production-ready dataset view.

Data

Multiple encoded measures over one category axis.

Use when

Use it when stack series share the same source table.

datasetstack

Dataset visual heatmap

Dataset visual heatmap uses Fission Charts typed Rust data to render a production-ready dataset view.

Data

Encoded grid cells with values.

Use when

Use it when heatmaps come from generic records.

datasetheatmap

Live line update

Live line update uses Fission Charts typed Rust data to render a production-ready dataset view.

Data

Append-like ordered telemetry samples.

Use when

Use it for live monitoring views.

dynamicline

Live bar update

Live bar update uses Fission Charts typed Rust data to render a production-ready dataset view.

Data

Changing category values.

Use when

Use it for updating status summaries.

dynamicbar

Live status gauge

Live status gauge uses Fission Charts typed Rust data to render a production-ready dataset view.

Data

Single changing status value.

Use when

Use it when a live number needs a strong visual shape.

dynamicgauge

Live alert scatter

Live alert scatter uses Fission Charts typed Rust data to render a production-ready dataset view.

Data

Highlighted alert points.

Use when

Use it for active events and outliers.

dynamicscatter

Live activation funnel

Live activation funnel uses Fission Charts typed Rust data to render a production-ready dataset view.

Data

Changing stage values.

Use when

Use it when pipeline stages update during the session.

dynamicfunnel

Brush telemetry

Brush telemetry uses Fission Charts typed Rust data to render a production-ready dataset view.

Data

Point samples with brush selection.

Use when

Use it for interactive telemetry exploration.

dynamicbrush

Calendar dataset activity

Calendar dataset activity uses Fission Charts typed Rust data to render a production-ready dataset view.

Data

Date/value rows mapped to a calendar.

Use when

Use it when dates are a first-class data field.

datasetcalendar

Risk bubbles dataset

Risk bubbles dataset uses Fission Charts typed Rust data to render a production-ready dataset view.

Data

Rows encoded into x, y, and size.

Use when

Use it when one table feeds bubble visualization.

datasetbubble

Quality dataset parallel

Quality dataset parallel uses Fission Charts typed Rust data to render a production-ready dataset view.

Data

Rows with several numeric dimensions.

Use when

Use it when the same table powers multidimensional analysis.

datasetparallel

Telemetry toolbox

Telemetry toolbox uses Fission Charts typed Rust data to render a production-ready dataset view.

Data

Telemetry chart with built-in actions.

Use when

Use it when live charts need controlled exploration.

dynamictoolbox

Quarter timeline

Quarter timeline uses Fission Charts typed Rust data to render a production-ready dataset view.

Data

Period labels switching chart state.

Use when

Use it for period-over-period analysis.

dynamictimeline

Coverage dataset map

Coverage dataset map uses Fission Charts typed Rust data to render a production-ready dataset view.

Data

Region/value rows.

Use when

Use it when geographic views come from named records.

datasetmap

Flow dataset sankey

Flow dataset sankey uses Fission Charts typed Rust data to render a production-ready dataset view.

Data

Node and edge records.

Use when

Use it when flow data is modeled explicitly.

datasetsankey

Live radar score

Live radar score uses Fission Charts typed Rust data to render a production-ready dataset view.

Data

Changing dimension vectors.

Use when

Use it for live multidimensional scorecards.

dynamicradar

Chart family

Monitoring

Monitoring overview line

Monitoring overview line uses Fission Charts typed Rust data to render a production-ready monitoring view.

Data

Dense telemetry samples.

Use when

Use it for top-level operational dashboards.

monitoringline

Monitoring error band

Monitoring error band uses Fission Charts typed Rust data to render a production-ready monitoring view.

Data

Error values with threshold band.

Use when

Use it when alert ranges must be visible.

monitoringmarkLine

Monitoring traffic bars

Monitoring traffic bars uses Fission Charts typed Rust data to render a production-ready monitoring view.

Data

Traffic counts by category.

Use when

Use it for quick categorical traffic summaries.

monitoringbar

Service rank

Service rank uses Fission Charts typed Rust data to render a production-ready monitoring view.

Data

Services ranked by a value.

Use when

Use it to focus on the largest contributors.

monitoringrank

Error scatter

Error scatter uses Fission Charts typed Rust data to render a production-ready monitoring view.

Data

Highlighted error points.

Use when

Use it for outlier-heavy operational views.

monitoringscatter

Load heatmap

Load heatmap uses Fission Charts typed Rust data to render a production-ready monitoring view.

Data

Resource load matrix.

Use when

Use it for time and resource concentration.

monitoringheatmap

Uptime calendar

Uptime calendar uses Fission Charts typed Rust data to render a production-ready monitoring view.

Data

Daily uptime values.

Use when

Use it for long-term reliability summaries.

monitoringcalendar

Capacity gauge

Capacity gauge uses Fission Charts typed Rust data to render a production-ready monitoring view.

Data

One capacity value in a bounded range.

Use when

Use it for critical status cards.

monitoringgauge

Dependency graph

Dependency graph uses Fission Charts typed Rust data to render a production-ready monitoring view.

Data

Service nodes and dependencies.

Use when

Use it for operational topology.

monitoringgraph

Operational flow sankey

Operational flow sankey uses Fission Charts typed Rust data to render a production-ready monitoring view.

Data

Flow nodes and links.

Use when

Use it for request and process flow.

monitoringsankey

Operational region map

Operational region map uses Fission Charts typed Rust data to render a production-ready monitoring view.

Data

Region values with color scale.

Use when

Use it for geographic operations.

monitoringmap

Operational route lines

Operational route lines uses Fission Charts typed Rust data to render a production-ready monitoring view.

Data

Connection lines with effect markers.

Use when

Use it for route and link movement.

monitoringlines

Brush investigation

Brush investigation uses Fission Charts typed Rust data to render a production-ready monitoring view.

Data

Scatter points and brush selection.

Use when

Use it when incidents require selecting a point range.

monitoringbrush

Monitoring toolbox

Monitoring toolbox uses Fission Charts typed Rust data to render a production-ready monitoring view.

Data

Line chart with analysis actions.

Use when

Use it when charts need local analysis controls.

monitoringtoolbox

Release timeline

Release timeline uses Fission Charts typed Rust data to render a production-ready monitoring view.

Data

Timeline control over chart state.

Use when

Use it for release-based dashboards.

monitoringtimeline

Monitoring annotation

Monitoring annotation uses Fission Charts typed Rust data to render a production-ready monitoring view.

Data

Trend with typed graphic callout.

Use when

Use it when dashboards need explanatory context.

monitoringannotation

Monitoring 3D grid

Monitoring 3D grid uses Fission Charts typed Rust data to render a production-ready monitoring view.

Data

3D grid bars for operational values.

Use when

Use it for spatial operational demonstrations.

monitoring3d

Monitoring 3D cloud

Monitoring 3D cloud uses Fission Charts typed Rust data to render a production-ready monitoring view.

Data

3D point cloud of operational samples.

Use when

Use it for dense spatial monitoring views.

monitoring3d

Monitoring risk radar

Monitoring risk radar uses Fission Charts typed Rust data to render a production-ready monitoring view.

Data

Multidimensional status vector.

Use when

Use it for status summaries across dimensions.

monitoringradar

Monitoring event strip

Monitoring event strip uses Fission Charts typed Rust data to render a production-ready monitoring view.

Data

Event positions with value-coded marks.

Use when

Use it for compact event timeline rows.

monitoringsingleAxis

Chart family

Analytics

Acquisition trend

Acquisition trend uses Fission Charts typed Rust data to render a production-ready analytics view.

Data

Acquisition values over time.

Use when

Use it for growth dashboards.

analyticsline

Retention area

Retention area uses Fission Charts typed Rust data to render a production-ready analytics view.

Data

Retention values with area fill.

Use when

Use it when volume and trend both matter.

analyticsarea

Conversion funnel

Conversion funnel uses Fission Charts typed Rust data to render a production-ready analytics view.

Data

Ordered conversion stage values.

Use when

Use it for product funnel analysis.

analyticsfunnel

Channel stack

Channel stack uses Fission Charts typed Rust data to render a production-ready analytics view.

Data

Channel values stacked by category.

Use when

Use it for acquisition mix.

analyticsstack

Market share pie

Market share pie uses Fission Charts typed Rust data to render a production-ready analytics view.

Data

Label/value market share pairs.

Use when

Use it for small whole comparisons.

analyticspie

Device mix donut

Device mix donut uses Fission Charts typed Rust data to render a production-ready analytics view.

Data

Device values in a donut chart.

Use when

Use it when device share matters.

analyticsdonut

Cohort heatmap

Cohort heatmap uses Fission Charts typed Rust data to render a production-ready analytics view.

Data

Cohort matrix values.

Use when

Use it for retention and cohort intensity.

analyticsheatmap

Engagement calendar

Engagement calendar uses Fission Charts typed Rust data to render a production-ready analytics view.

Data

Daily engagement values.

Use when

Use it for engagement consistency over time.

analyticscalendar

Segment bubbles

Segment bubbles uses Fission Charts typed Rust data to render a production-ready analytics view.

Data

Segment x, y, and value triples.

Use when

Use it for multidimensional segment comparison.

analyticsbubble

Source theme river

Source theme river uses Fission Charts typed Rust data to render a production-ready analytics view.

Data

Source values over time.

Use when

Use it for changing source composition.

analyticsthemeRiver

Journey graph

Journey graph uses Fission Charts typed Rust data to render a production-ready analytics view.

Data

Journey nodes and links.

Use when

Use it for relationship-heavy behavior views.

analyticsgraph

Journey sankey

Journey sankey uses Fission Charts typed Rust data to render a production-ready analytics view.

Data

Journey stages and flow links.

Use when

Use it for user movement between stages.

analyticssankey

Region sales map

Region sales map uses Fission Charts typed Rust data to render a production-ready analytics view.

Data

Sales values by named region.

Use when

Use it for geographic sales analysis.

analyticsmap

Engagement routes

Engagement routes uses Fission Charts typed Rust data to render a production-ready analytics view.

Data

Map plus route lines.

Use when

Use it for spatial engagement flows.

analyticsroutes

Product radar

Product radar uses Fission Charts typed Rust data to render a production-ready analytics view.

Data

Product dimensions as profile vectors.

Use when

Use it to compare product health dimensions.

analyticsradar

Analytics score gauge

Analytics score gauge uses Fission Charts typed Rust data to render a production-ready analytics view.

Data

One score value in a bounded range.

Use when

Use it for primary scorecards.

analyticsgauge

Segment parallel

Segment parallel uses Fission Charts typed Rust data to render a production-ready analytics view.

Data

Segment rows across several dimensions.

Use when

Use it for segment tradeoff analysis.

analyticsparallel

Feature treemap

Feature treemap uses Fission Charts typed Rust data to render a production-ready analytics view.

Data

Feature values in a hierarchy.

Use when

Use it for feature usage share.

analyticstreemap

Portfolio sunburst

Portfolio sunburst uses Fission Charts typed Rust data to render a production-ready analytics view.

Data

Portfolio hierarchy in radial layers.

Use when

Use it for hierarchical portfolio composition.

analyticssunburst

Report toolbox chart

Report toolbox chart uses Fission Charts typed Rust data to render a production-ready analytics view.

Data

Chart with report actions.

Use when

Use it when analytics views need built-in controls.

analyticstoolbox
